Hercules HE34 Owner's Manual

1-9/16" sds-max type rotary hammer
Hide thumbs Also See for HE34:

Advertisement

Table of Contents

Owner's Manual &
Safety Instructions
.
Bit not included. When unpacking, make sure that the product
is intact and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible. Reference 56844.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE34 and is the answer not in the manual?

Questions and answers

Related Manuals for Hercules HE34

Summary of Contents for Hercules HE34

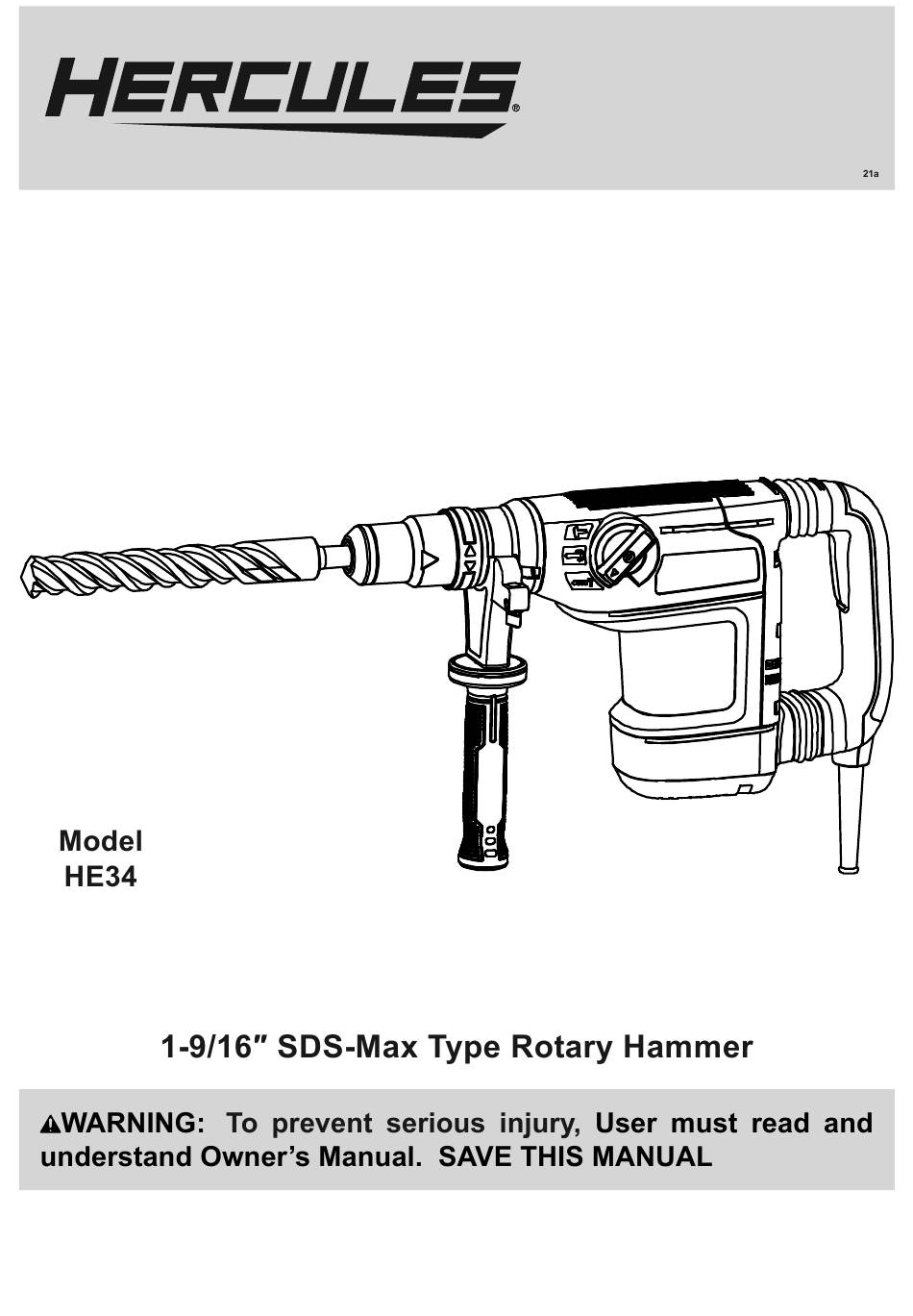

  • Page 1 Owner’s Manual & Safety Instructions Bit not included. When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call 1-888-866-5797 as soon as possible. Reference 56844.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION GENERAL POWER TOOL SAFETY WARNINGS Personal safety Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. your Work area safety such as dust mask, non-skid safety shoes, hard Cluttered or dark areas invite accidents. Power tools tools that have the switch on invites accidents.

  • Page 3: Vibration Safety

    11. Do not lay the tool down until it has come to a complete stop. Moving parts can grab the surface and pull the tool out of your control. 13. Do not leave the tool unattended when it is plugged into an electrical outlet.

  • Page 4: Grounding Instructions

    Extension Cords GROUNDING INSTRUCTIONS 1. Grounded tools require a three wire extension cord. Double Insulated tools can use either a two or three wire extension cord. 2. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a serious drop in voltage, resulting in loss of power and possible tool damage.

  • Page 5: Specifications

    Warning Symbols and Definitions Specifications Electrical Rating 120VAC / 60Hz / 12A Bit Type 1-9/16" (40mm) SDS-Max Type 1 Bull Point Bit Bits 1 Flat Bit Functional Description Symbology Double Insulated Volts Alternating Current Amperes n 0 xxxx/min. No Load Revolutions per Minute (RPM) WARNING marking concerning Risk of Eye Injury.

  • Page 6: Operation

    Workpiece and Work Area Set Up OPERATION 1. Designate a work area that is clean and well-lit. The work area must not allow access by children or pets to prevent distraction and injury. 2. Route the power cord along a safe route to reach the work area without creating a tripping hazard or exposing the power cord to possible damage.

  • Page 7: General Operation

    4. Make sure that the Trigger is in General Operation the off-position, then plug the tool in. 5. Set the bit against the work area. Keep power cord away from moving machines. 6. Place one hand on the Front Handle and the other hand around the Handle.

  • Page 8: Maintenance And Servicing

    Cleaning, Maintenance, MAINTENANCE AND SERVICING and Lubrication inspect the general condition of the tool. Check for: • loose hardware • misalignment or binding of moving parts • cracked or broken parts • damaged electrical wiring • any other condition that may affect its safe operation.

  • Page 9: Troubleshooting

    Troubleshooting Tool will 1. Cord not connected. 1. Check that cord is plugged in. not start. 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.

  • Page 10: Parts List And Diagram

    PARTS LIST AND DIAGRAM Parts List Hammer Rod Protector Small Cone-shaped Gear Chuck Ring Ball Bearing 6904 VV Retaining Ring Ø26 Final Gear Support Washer O Ring Ø5.5xØ1.05 Rubber Ring Ball Bearing 608 RS Lock Bead Sheath Crank Shaft Insert Block Ball Bearing 6004 Spring Rack Retaining Ring Ø20×1...

  • Page 11: Assembly Diagram

    Assembly Diagram Item 56844 Page 11...
  • Page 12 LIMITED 90 DAYS WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
