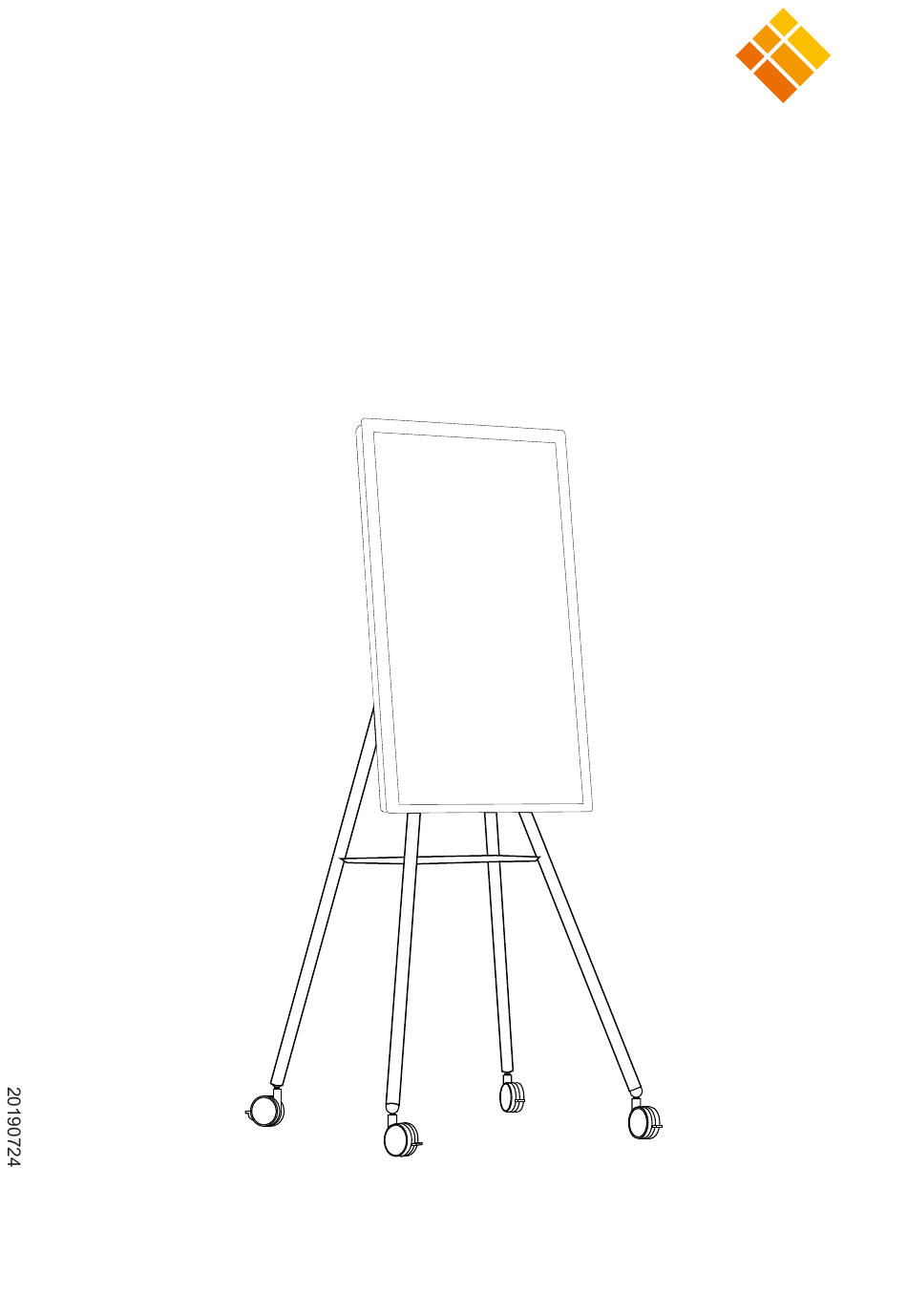

- Page 1 Mobile Stand F43-C INSTALLATION MANUAL...
- Page 2 2. Only mount the i3SIXTY Display on the i3SIXTY F43-C Mobile Stand. Do not attempt to mount other devices. 3. Do not position the i3SIXTY F43-C Mobile Stand to be used on an inclining floor, not even with the wheel brakes locked.
- Page 3 Assemble the 4 wheels to each of the 4 legs. Make sure that the brakes are locked throughout the entire assembly process. Screw in the threaded bolt into the bottom of the leg, through the wash- ers (7 and 8). Tightly fasten the wheels using a #19 wrench.
- Page 4 Mount the rotating display mount (D) to the leg assembly, with the 8x M8x20 hex bolts (2). Make sure all bolts are tightly fastened with a wrench or cross screwdriver. Feed the power cord through the center hole of the rotating part. At the front of the Mobile Stand, leave 450 mm of the power cord.
- Page 5 6 mm Insert the 4 spacers (10) and the top 2 mounting screws (4) into the VESA 300x300 mounting holes of the i3SIXTY display. Note that the i3SIXTY display will be mounted in portrait orientation. Note that the position of the i3SIXTY’s camera is the top Don’t screw in the bottom screws yet.
- Page 6 Assemble the 2 back covers (E & F) behind the mounting plate. Fasten the covers with 8 screws (5). OPTIONAL: If the display over- or under-rotates (eg doesn’t finish the rotation perfectly horizontal or vertical), you can adjust the stopping points of the rotation with the 4 screws located on the mounting plate.
