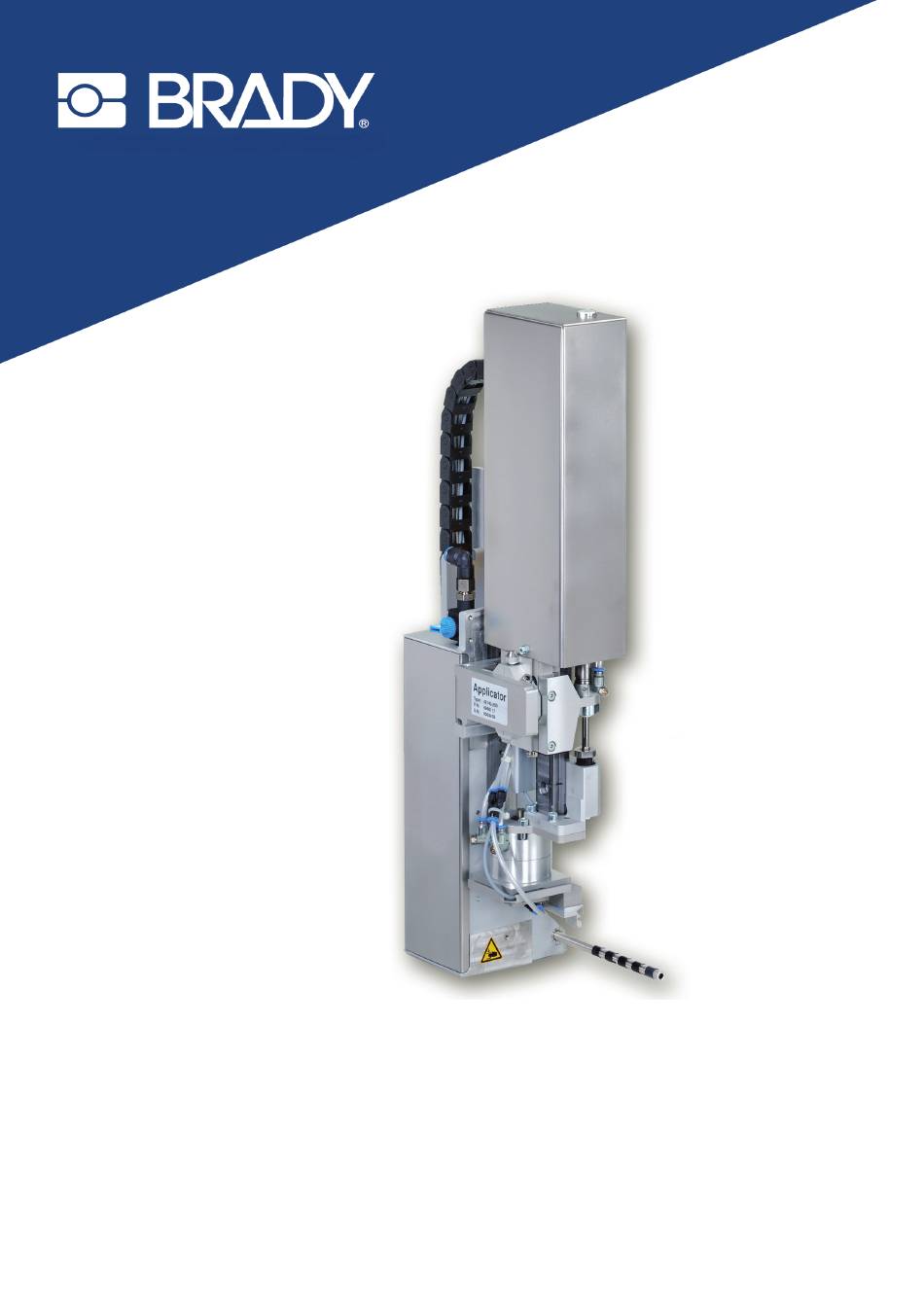

- Page 1 A8500L Stroke-turn Applicator 4214 LABEL PRINTER APPLICATOR ASSEMBLY INSTRUCTIONS...
- Page 2 Brady’s satisfaction to have been defective at the time Brady sold it. This warranty does not extend to any persons obtaining the product from the buyer.
-
Page 3: Table Of Contents
Table of Contents Introduction ............................4 Instructions ............................... 4 Intended Use ............................5 Safety Instructions ............................ 5 Safety Marking ............................6 Environment ............................. 6 Product Description ..........................7 Important Features ........................... 7 Technical Data ............................7 Overview ..............................8 Contents of Delivery ..........................9 Mounting ............................... -
Page 4: Introduction
Introduction Instructions Important information and instructions in this documentation are designated as follows: Danger! Draws attention to an exceptionally great, imminent danger to your health or life due to hazardous voltages. Danger! Draws attention to a danger with high risk which, if not avoided, may result in death or serious injury. Warning! Draws attention to a danger with medium risk which, if not avoided, may result in death or serious injury. -
Page 5: Intended Use
• The device is designed to use on a Brady printer of the A8500 series. Any other use or use going beyond this shall be regarded as improper use. The manufacturer/supplier shall not be liable for damage resulting from unauthorized use;... -
Page 6: Safety Marking
Introduction Safety Marking Warning of damages by moving parts! Cylinder is under pressure, also if it is switched off. Possibility of residual energy! Danger of crushing hands and fingers by the moving pad! Attention! Never remove or cover safety markings! Replace them in the case of damage! Fig. -
Page 7: Product Description
Label transfer method Tamp pad Tamp pad Tamp pad Blow pad with foam with label stop 4214 L/R 11 F 4214 L/R 12 F 4214 L/R 61 F 4214 L/R 2100 Label width in mm 10 - 80 10 - 80... -
Page 8: Overview
Product Description Overview Fig. 2 Device overview 1 Cover 5 Blow tube for supporting air 2 Compressed air connector 6 Knurled screw for attaching the applicator to the printer 3 Shutoff valve 7 Hinges 4 Pad (customized) 8 SUB-D 15 Connector - elec. connection applicator-printer User Manual... -
Page 9: Contents Of Delivery
Product Description Contents of Delivery • Applicator (1) • Blow tube (2) • Pad (as ordered) (3) • Screws (part of the pad) (4) • Documentation Fig. 3 Contents of delivery Note! Please keep the original packaging in case the applicator must be returned. Attention! The device and printing materials will be damaged by moisture and wetness. -
Page 10: Mounting
Mounting Fig. 4 Mounting applicator on printer Attention! Initiation, adjustments and changing of parts is only for qualified service personal only. Mount the applicator 1. Hang the applicator with the female part of hinges (1) at the printer mounted hinges parts (2). 2. -
Page 11: Operation
Operation Standard Operation Check all external connections. Load the material. Ensure that the locking system is locked "User Manual" of the printer. Open the shutoff valve. Attention! Ensure that the pad is not covered by a label when switching on the printer-applicator system. Otherwise the vacuum sensor may be calibrated incorrectly. -
Page 12: Movement Of The Pad
Operation Movement of the Pad The applicator 4214 has different modes for picking up labels. The position of the pad can also be adjusted to suit different applications of the labels. The take up mode is mainly dependant on the size and material of the label. In the standard settings the applicator will ignore the interim steps of "Label hand-over up."... -
Page 13: Error Messages
Error Messages Error Messages of the Printer For detailed information about printer errors (e.g. 'Paper out', 'Ribbon out', etc.) Check the user manual of the printer. Error treatment: Clearing the error results. Press the to synchronize the label feed, remove the left over labels manually. To quit the error state press Repeat. -
Page 14: Licences
Licences Reference to the EU Declaration of Conformity The BradyPrinter™ A8500 Label Applicator complies with the relevant fundamental regulations of the EU Rules for Safety and Health: Directive 2006/42/EC on machinery Directive 2014/35/EU relating to electrical equipment designed for use within certain voltage limits Directive 2014/30/EU relating to electromagnetic compatibility Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment... - Page 15 This page was left blank intentionally. User Manual...
- Page 16 Brady Worldwide, Inc Brady EMEA Brady Corporation Asia 6555 West Good Hope Road Lindestraat 20 1 Kaki Bukit Crescent Milwaukee, WI 53223 9240 Zele Singapore 416236 bradyid.com Belgium bradycorp.com/global bradycorp.com/global...
