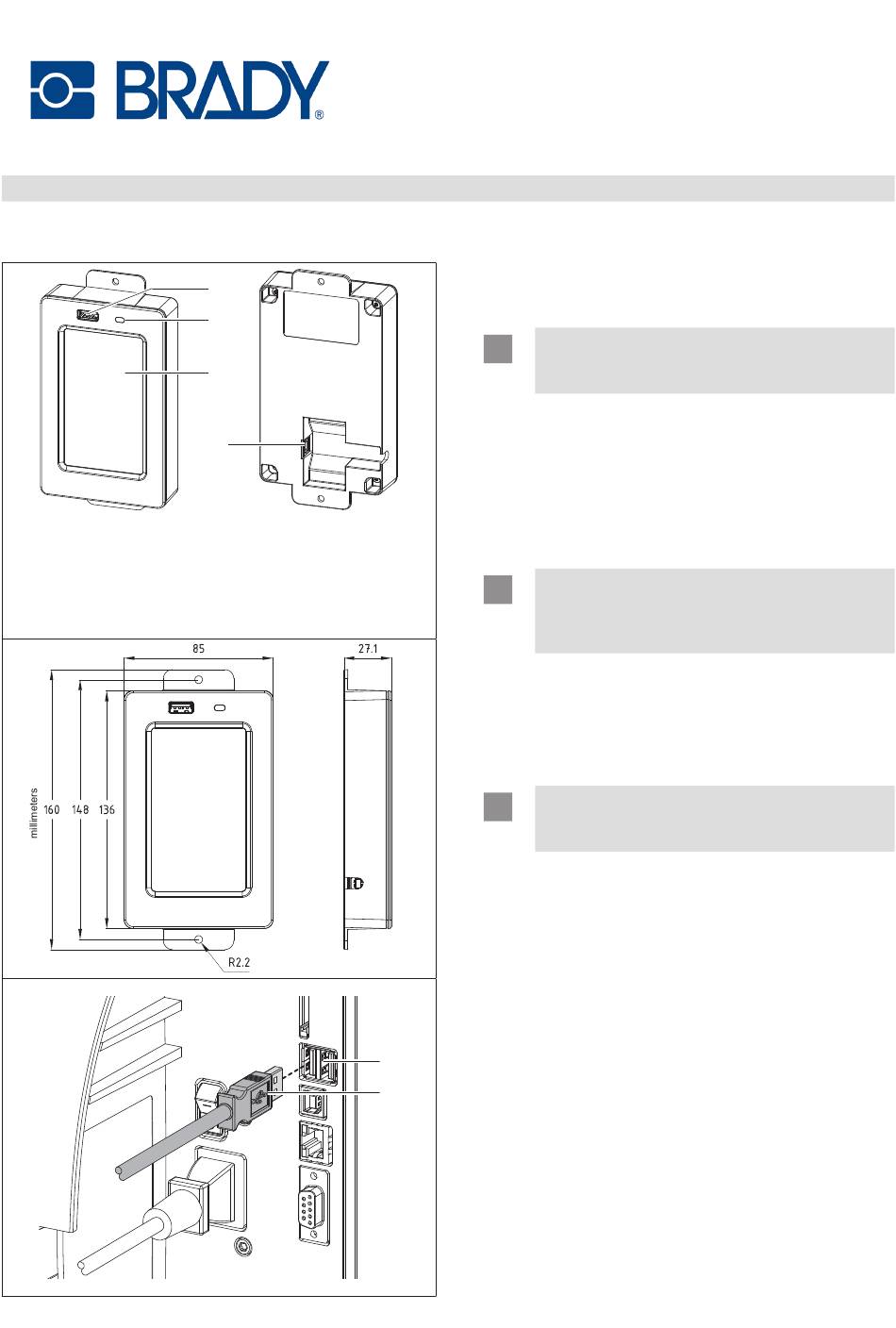

Brady 151149 Quick Start Manual

External Display Panel for BradyPrinter i5100/i7100 (Part No. 151149)
Edition: March 2020
1 USB host port
for USB memory stick or service key
2 LED "Power on"
3 Touchscreen display
4 USB device port
(NOTE: USB cable (6) sold separately.)
1
2
3
4
mm
mm

Intended Use

The external display panel is intended for the wired remote
control of the i5100 and i7100 printers.

Function

!
Attention!
For using the external display panel the printer
firmware version 5.25 or higher is needed.
The external display panel has the same functionality as the
on-board display panel of the printer. Users are free to choose
whether to operate the printer on the external display or on the
one integrated in the device. The contents of both displays are
mm
identical and can be displayed in portrait or landscape mode.
The external display panel has a USB host port (1) to connect
a USB memory stick or the service key, and a USB device
port (4) to connect the printer.
!
Attention!
To access the USB memory stick on the external
display panel no other USB memory stick may
be connected to the printer.

Connecting the Display

For the connection, a USB cable is available separately:
• 151150
• 151151
• 151152
!
Attention!
The use of other cables can cause loss
of function.
► Use an approved USB cable (6) with USB Type A connec-
tor on one end and USB Type B connector on the other
end. Insert Type A connector to one of the USB host ports
(5) on the printer, and connect the Type B connector to
the USB device port (4) on the external display. The cable
may be connected during operation. The external display
will be detected by the printer and can be used after a few
seconds.
5
6
USB cable w/ Type A/Type B connectors - 1.8m
USB cable w/ Type A/Type B connectors - 3m
USB cable w/ Type A/Type B connectors - 5 m
