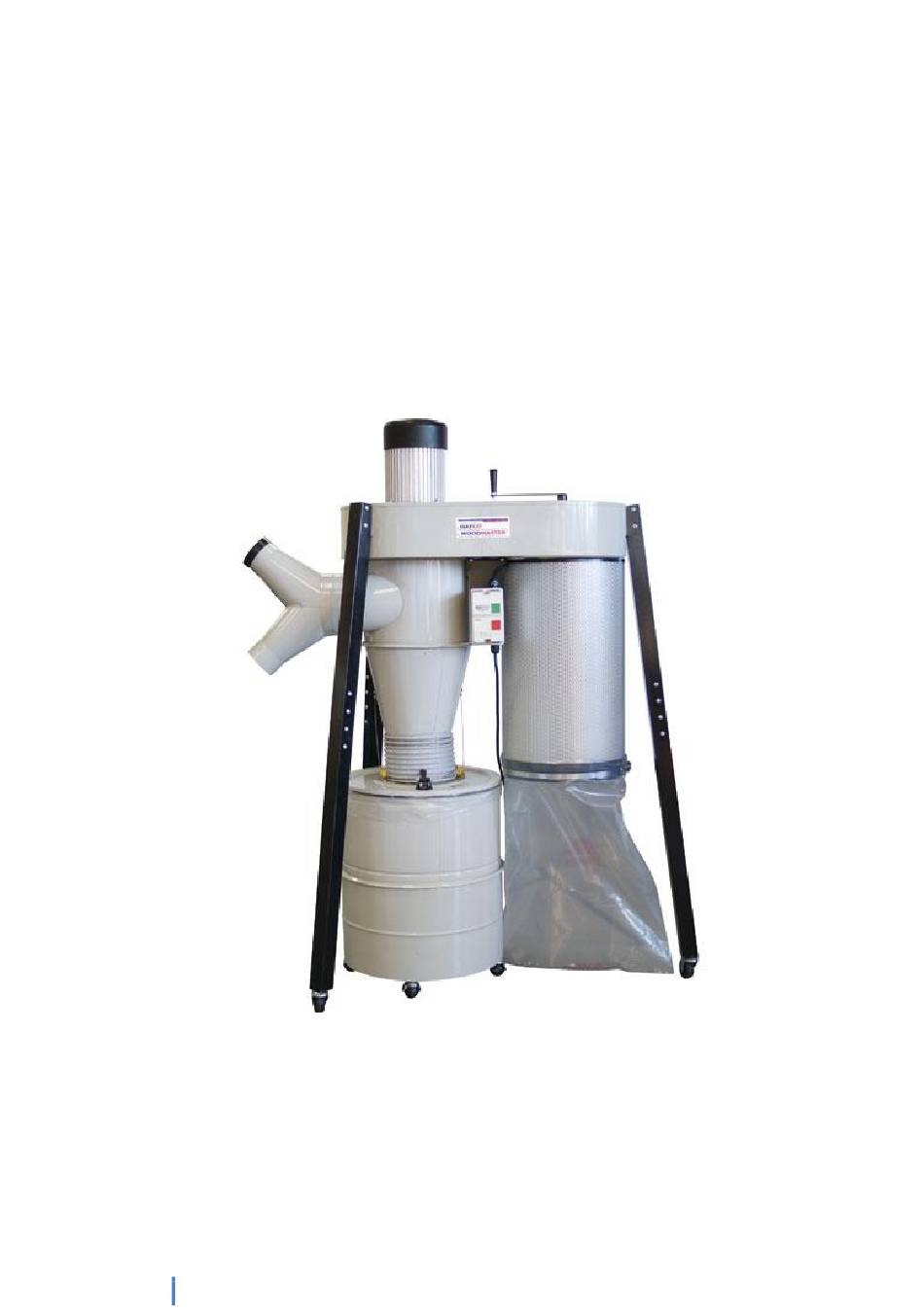

- Page 1 29-6-11 HAFCO WOODMASTER # W317 CD-2 CANISTER DUST COLLECTOR...
-
Page 4: Inventory List
INVENTORY LIST A. Reducing Collector M. N Type Handle B. Round Collector N. Lower Leg C.7”*4” Y-adapter O. Upper Leg D. Housing Cover P. PE Bag (Small) E. Connecting Bracket Q. Lower Dust Drum F. Main Housing Assembly R. Upper Dust Drum G. -
Page 5: Machine Assembly
Machine Assembly Step 1. Assemble Legs Connect the upper leg with connecting bracket by 5/16” button HD Screw Connect the Lower Leg with connecting bracket by 5/16” button HD Screw Screw on the swivel castors to the bottom each leg Step 2 Fit legs to body Use the packaging removed out of the carton under the upside down main unit to steady it to assemble the legs on. - Page 6 Step 3 Round Collector Assembly Place the Round Collector with main Housing as photo fix by M5 x 10 socket head cap screws ., Note the position of the small pipe coming out and the large inlet pipe in the side of the Collector. Small Pipe Step 4 Fit switch...
- Page 7 Step 8 Fit top lid Please the main Housing cover with Main Housing and fit as photo M5 x 10 socket head cap screws. Step 9 Assembly canister filter cleaning Handle Place the N Type Handle on the Canister and fix by the M6 set Screw.
- Page 8 Step 12. Place the upper dust drum with lower dust drum as photo and connecting by the big round clamp. Fix the Round Clamp by 1/4”*4” L Hex Screw and Nut. When fitting top drum half on top of bottom base centralize it the best you can then fit clamp and tighten it progressively while lightly tapping on the clamp ring with a soft face hammer around the...
- Page 9 Step 15 Assemble reducer cone to drum lid Assemble Lid-Flexible hose and top cone as shown. Noting the position of the earth wire coming of cone is at rear of lid assembly The hose is a tight fit and the careful use of a pair of pliers and or screwdriver as a lever will assist in its assembly! Ensure...
- Page 10 Step 18 Reducer Collector Assembly Wheel the Drum/lid assembly under the machine with the lid lever to the front of machine (Switch side) Place the Reducing Collector with Round Collector as photo. And connecting by small Round Clamp fix by 1/4” *4”L Hex Screw and 1/4” When fitting centralize it the best you can then fit clamp and tighten it progressively while lightly tapping on the clamp ring with a soft face...
- Page 11 Step 21. Slide the 1-1/2” hose the other side as photo on the 38mm tube of the dust drum and fix by the1-3/4” hose clamp. Now . The cyclone is ready for running testing...
-
Page 12: Part Diagram
Part Diagram Auto Clean System N TYPE HANDLE HANDLE... - Page 13 Part List ITEM NO. Description Q'TY MOTOR COLLECTOR BODY SET 12''-3／4＂IMPELLER(2HP&3HP) COLLECTOR REDUCING CONNECTOR FRONT SUPPORT LEG ㄇ TYPE CONNECTOR BOARD LOWER REAR SUPPORT LEG 8＂HOSE LARGE PLASTIC BAG SMALL PLASTIC BAG DRUM SUPPORT WHEEL WHEEL CLAMP HOSE HANDLE MAGNETIC SWITCH BOARD MAGNETIC SWITCH 2HP 8＂HOSE CLAMP 1-3/4＂HOSE CLAMP...
-
Page 14: Parts List
SPONGE CANISTER WINDOW M5 RIVET BUSHING RUBBER FLAP BEAR FIXING BOARD HEX. HEAD BOLT M6x10L PHILLIPS HEAD SCREW1／4''x4'' FLAT WASHER１／４＂x１８ 1／4'' NUT LOWER CANISTER BLET CLAMP UPPER DRUM 150H Y-INLET LOWER FIXING BOARD CANISTER SPINDLE 200H DRUM UPPER COVER RIVET CANISTER OPTION AUTO... - Page 15 General Machinery Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Read the entire Manual before starting 14. Use correct amperage extension cords. machinery. Machinery may cause serious injury if Undersized extension cords overheat and lose not correctly used.
- Page 16 Metal & Wood Dust Collector Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Maintenance. 8. Hearing protection and hazards. Make sure the Dust collector is Always wear turned off and disconnect from the main power hearing protection as noise generated from dust supply and make sure all moving parts have come to collector can cause permanent hearing loss over...
