WARNING:
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack
upon completion of work.
NOTE: THIS KIT AND EXTERNAL ENCLOSURE BOX04083 MUST BE PURCHASED TOGETHER UNLESS BAYLOAM108
(LOW AMBIENT KIT) IS ALSO BEING INSTALLED ON UNIT.
START CONTROL KIT CONTENTS:
--------------------------------------------------------------------------
No.
Qty. Description
1
1
Start Capacitor
2
1
Relay
3
1
Capacitor Strap
4
1
#6-20 Self-drilling Screw
5
2
#10-16 Self-drilling Screw
6
1
Installer's Guide
7
1
Warning Label
INSPECTION:
Check carefully for any shipping damage. This must be
re ported to and claims made against the transportation company
immediately. Any missing parts should be reported to your
supplier at once and replaced with authorized parts only.
Installer's Guide
Start Control Kit
BAYKSKT267
HAZARDOUS VOLTAGE - DISCONNECT POWER BEFORE SERVICING
88-MACC014-1C-EN
INSTALLATION:
Mounting Start Control Kit Components
1.
Be certain power to unit is DISCONNECTED.
2.
Remove cover panel on unit control box compartment.
3.
Locate the unit control box bottom and mark the hole
position in the approximate location as shown in Figure 1.
4.
Using a .875" drill bit, drill a hole through the unit con-
trol box bottom. Make sure not to damage any wiring
or components. Deburr the drilled hole and remove any
unwanted material.

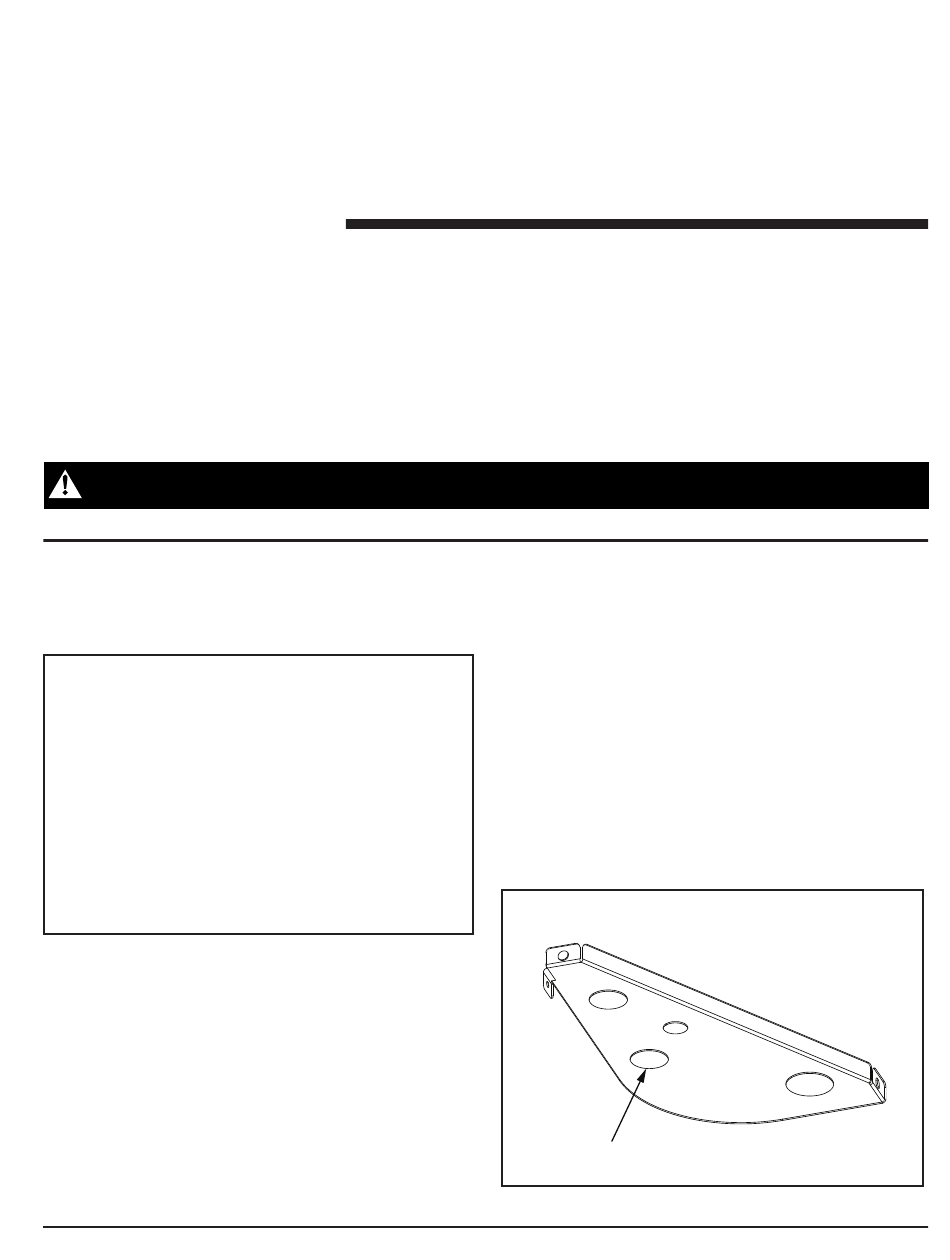

FIGURE 1
New Ø .875" hole
