Actisense USG-2 Quick Start Manual

Important Notices

The device to which this manual relates complies with the Electromagnetic
Compatibility requirements according to EN60945. The unit should always be
used in conjunction with appropriately approved, shielded cable and connectors
as per NMEA 0400 to ensure compliance. A declaration of conformity is
available for download at www.actisense.com.
If the device to which this manual relates is to be installed within five metres of a
compass, please refer to the 'Compass Safe Distance' section in the 'Technical
Specifications' table.

Trademarks and Registered Trademarks

Actisense® and the Actisense logo are registered trademarks of Active
Research Limited (Ltd). All other trademarks are the property of their respective
owners.
The NMEA® name and NMEA logo are copyright held by the NMEA. All uses in
this manual are by permission and no claim on the right to the NMEA name or
logo are made in this manual.

Fair Use Statement

The contents of this manual may not be transferred or copied without the
express written permission of Active Research Ltd.

Product Registration

Please register your product via the online form at www.actisense.com/
product-registration/.
Your product package includes a unit serial number. The serial number is six
digits long and can be found below the barcode on the label. Your registration
will assist Actisense Support to link your product to your details, simplifying any
future assistance you may require.

Product Disposal

Please dispose of this product in accordance with the WEEE Directive. The
product should be taken to a registered establishment for the disposal of
electronic equipment.

Technical Accuracy

To the best of our knowledge the information contained in this document was
correct at the time it was produced. Active Research Ltd cannot accept liability
for any inaccuracies or omissions.
The products described in this manual and the specifications thereof may be
changed without prior notice. Active Research Ltd cannot accept any liability
for differences between the product and this document. To check for updated
information and specifications please check www.actisense.com.
Active Research Ltd will not be liable for infringement of copyright, industrial
property rights, or other rights of a third party caused by the use of information
or drawings described in this manual.
Product Guarantee
This product comes with a three year 'return to base' guarantee. If you suspect
that the unit is faulty please refer to the Troubleshooting Section of the User
Manual before contacting support.
It is a requirement of the guarantee that all installations of electronic equipment
follow the NMEA 0400 specification. Any connection to a battery or power
supply must meet the mandatory essential safety requirements that may be
imposed by local regulatory agencies.
Actisense products are intended for use in a marine environment, primarily for
below deck use. If a product is to be used in a more severe environment, such
use may be considered misuse under the Active Research Ltd guarantee.
Introduction & Features

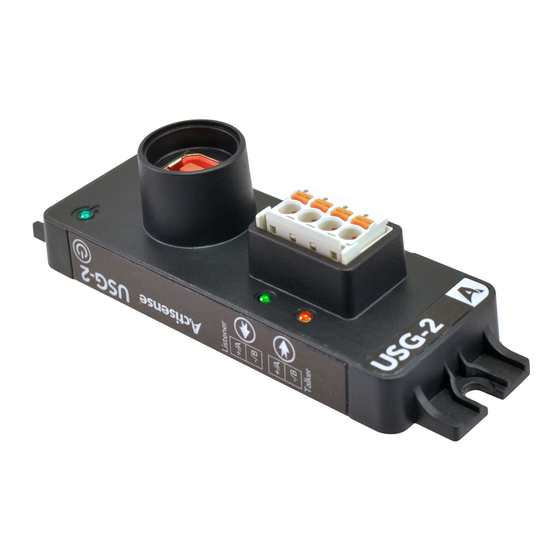

The USG-2's OPTO-isolated input and ISO-Drive isolated output makes it safe to
connect NMEA 0183, RS232 and RS422 devices to your PC without the danger
of ground loops. The high quality, shielded USB lead included with the USG-2
provides a high level of water protection when mated with the high retention
Type-B USB receptacle, all vital features in the high vibration, noisy marine
environment. The pluggable screwless connector (with locking latch) makes
connecting devices quick and a DIN rail mount option is available to reliably
secure the USG-2 to a bulkhead. For full details on the USG-2 and its features
visit the Actisense website or refer to the USG-2 User Manual.

Before getting started

The wire colours used in this quick start guide are in accordance with
the NMEA 0183 specification (v.4.10, June 2014) and are for illustration
purposes only. Please ensure you check the wiring colours in the installation
instructions for the device you wish to interface to the USG-2.
Fold
