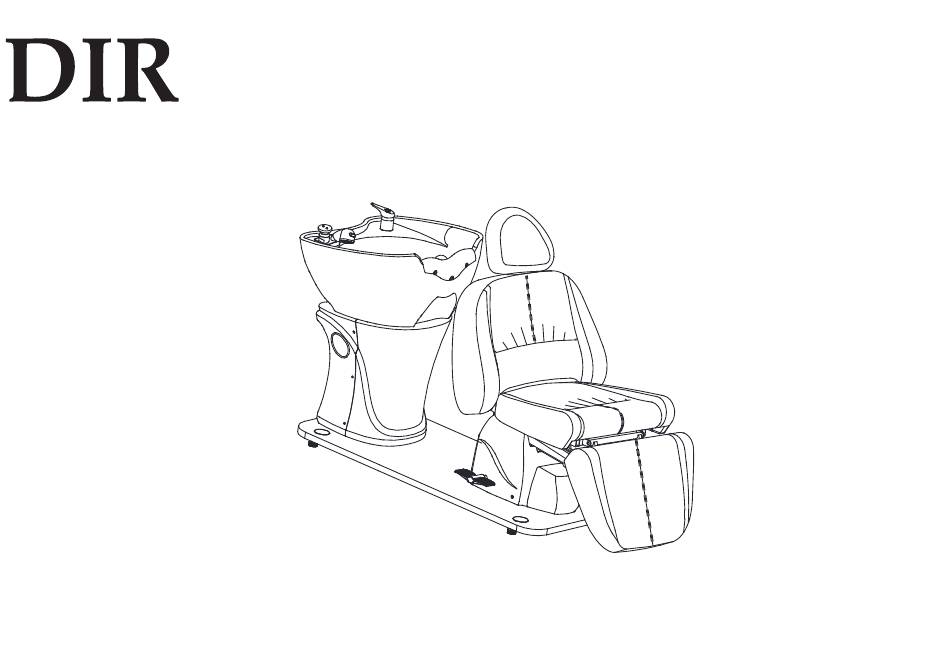

- Page 1 Maximus ® 7113 INSTRUCTION MANUAL...
-
Page 2: Accessories Parts
● Assembly instruction : ● Technical data： ● Install connecting rod of back rest Foot Frame Frame carrier Dimension 198*69*87cm 78”*27 ”*34 ” B clip Load Capacity 200kg 441lb 129kg 284lb 172kg 379lb Flat pin ”*26” Height 49～66cm Padding SPONGE Leather PU/PVC ●... - Page 3 ● Anchoring Assemble ● Assembling the basin Open the cover of stainless steel,then install anchoring ① Take off the cover of basin’s base before assemble above parts Stainless steel cover Anchoring ● Install rubber padding ① Cover the button then rubber padding would be installed ②...
- Page 4 ● Schematic diagram of faucet &connector box ”/ 298cm ”/ ”/ 60cm 198cm ”/ ”/ 92cm 34.8cm Socket Area(PS:The power plugs could not 30mm higher than floor) ”/ Inlet pipe of cold and hot water ”/ 32cm Dia of Outlet pipe Φ100...
- Page 5 ● Shower and valve installation ● Faucet installation Shower Disassembly pipe Faucet of hot and cold water Performing Rubber Washer Copper nut Screw Pipe of cold and hot water Fauce install Connector of outlet water for faucet Note:Pipe of cold &hot water must connect to the hole below switch Water pipe connected to mark of cold and hot water...
- Page 6 ● Height Adjusted ● Outfall installation Power on ,press switch, power indicator light up, step on “up” side of foot control, whole bed raise up, step on “down”side, whole bed decline. Outfall After assemble above parts ,put the back cover of basin base ●...
- Page 7 ● Headrest ● Notice: Adjust the knob B to adjust height of headrest or disassem- Because this bed is work with 3 wire power cables, in order to bly headrest; Adjust the knob A to rotate or turn over the making it working properly, it has to insert to 3 holes powder angle of headrest socket with ground wire.
-
Page 8: Maintenance
● Precautions ● Maintenance Someone with osteoporosis or heart problem should not 1. Daily cleaning use this massage chair. You can wipe out the dust by using soft dry towel. Women being pregnant or in menstruation should not 2. Eliminating the heavy dirt use this massage chair. - Page 9 ● Malfunction Diagnosis If you meet malfunction when using this product, please try the below malfunction diagnosis and eliminated operation. Problem Reason may cause Solution Whether the remote control switch Restart the remote control start or not Whether the control key reach to Try other control keys No reaction for the bed end position.
- Page 10 Warranty The warranty period is one year. DIR warrants to you, the original buyer, that goods shall be free of defects in material and/or workmanship attributable to manufacture for one year from date of s receipt of product. Damage resulting from improper handling after merchandise is received, or from exposure to weather or extreme atmospheric conditions is not covered by the warranty.
