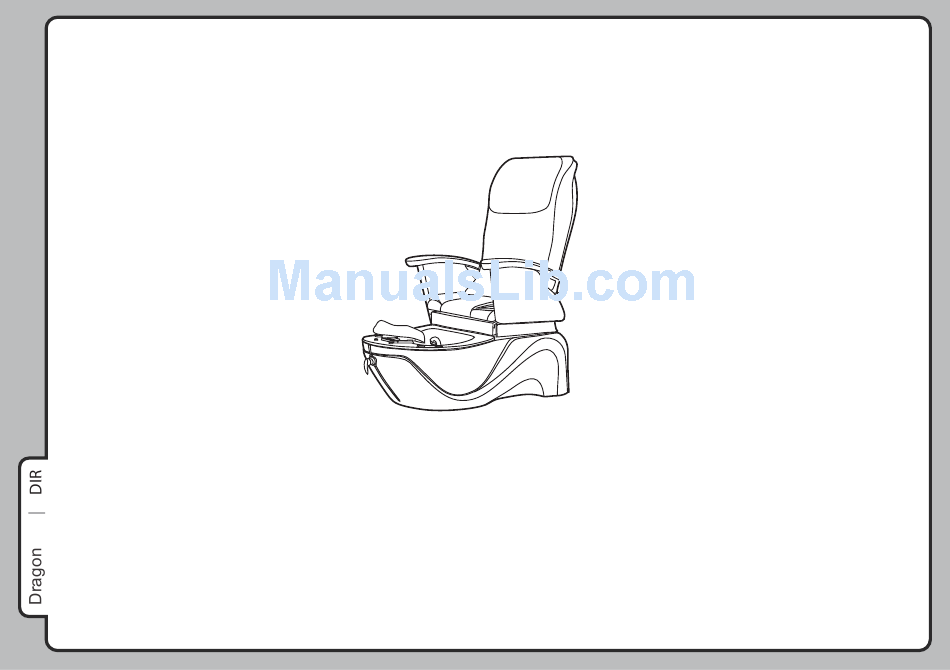

- Page 1 INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Warranty Contact Us Thanks for your purchase of our product: Dragon Pedicure Spa. Please read the operation manual before using the product. Please put the operation manual in the place easy for you to read and you can read it at any time. -
Page 3: Introduction
DRAGON Product Code: 5820 Thank you for selecting DIR, the leading salon and beauty Furniture company in the UK. The Dragon pedicure spa comes with four-wheel driven muted massage system which gives you the experience of ultimate relaxation. Please take time to read this entire manual before assembly and use. -
Page 4: Safety & Precaution
Important The Dragon pedicure spa requires that you contact a local, licensed plumber to install your new pedicure spa. Installation must be in compliance with all your building codes. Your pedicure spa cannot operate e ciently or safely unless it is provided with adequate Requirements electrical power, su cient water pressure, proper water temperature, and required drainage capabilities. -
Page 5: Pedicure Spa Parts
Pedicure Spa Parts Headrest Cushion Backrest Cushion Legrest Seat Power on/o Min Max Adjuster Faucet Handle Drain Button Shower Head... -
Page 6: Assembly Instructions
Assembly Instructions The backrest cushion and the seat The headrest cushion and the are connected by a zip. backrest cushion are connected by velcro. Headrest Cushion Backrest Cushion Step 1 Seat... - Page 7 Rubber Step 2 Step 3 Align the seat with the pre-drilled holes on the base then tightly secure with the nuts and bolts provided. (use the alan key provided) Need two person assembly.
- Page 8 Step 4 Attach the covers for the seat to the front and both sides of the seat.
- Page 9 Waste Pipe Connection Waste Pipe Waste Pipe NOTE: waste pipe must be on a downward ow.
- Page 10 400 mm 15.7 in Wall 26 in...
-
Page 11: Operation Instructions
To control the air ow use turn the adjuster to either min or max. Drain Water a. To drain water from the Dragon pedicure spa, turn the faucet handle located on the front panel on the left hand side. - Page 12 Operation Manual Adjust Legrest Lift the legrest to meet customer’s needs.
-
Page 13: Control Panel
Power: to start or stop message of the upper body. The button will not work when the massage device is at its position of recovery. Timing: to set the massage time, three period for choice: 10 minutes, 20 minutes, 30minutes. Upper Body: the massage device works with various techniques at di erent body zone of your upper body. - Page 14 KNEAD Back Stretching: to select full-range, partial or xed massage. (overall, xed, partial ) Up Arrow: when xed massage has been chosen, FLAP press this button to move the massage device upward to suit precise massage points, not available under auto state. KNEAD &...
-
Page 15: Aftercare Instructions
Aftercare Instructions Caring for the cushion and covers Soak a piece of soft cloth in lukewarm water in which a small amount of mild detergent has been added. Then thoroughly wring it out before cleaning o any spots or grime. Caring for the remote control Wipe dirt o the remote control with a dry cloth. -
Page 16: Warranty
The warranty is under the condition that the goods shall be received free of defects, in its original condition when purchased and manufactured faults. Damage resulting from general wear and improper usage will not be covered under the warranty. Should you require further information or technical support please contact DIR on: +44(0)121 643 3877 Exclusions 1. -
Page 17: Contact Us
Contact Us DIR BIRMINGHAM DIR LONDON DIR NEW YORK 93-96 Floodgate Street Unit 1 River Road Business Park 24 Woodward Ave, Suite C Birmingham 33 River Road, Barking Ridgewood, NY 11385 B5 5SR Greater London IG11 0DA Sales: +44(0)800 085 3667... - Page 18 www.dirgroup.co.uk (Headquarters) 93-96 Floodgate Street, Birmingham, B5 5SR, UK TEL: +44(0)800 0853667 +44(0)121 6433877 Email: sales@dirgroup.co.uk...
