Jupiter 4, Jupiter 8, Jupiter 12
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jupiter 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Symetrix Jupiter 4

Summary of Contents for Symetrix Jupiter 4

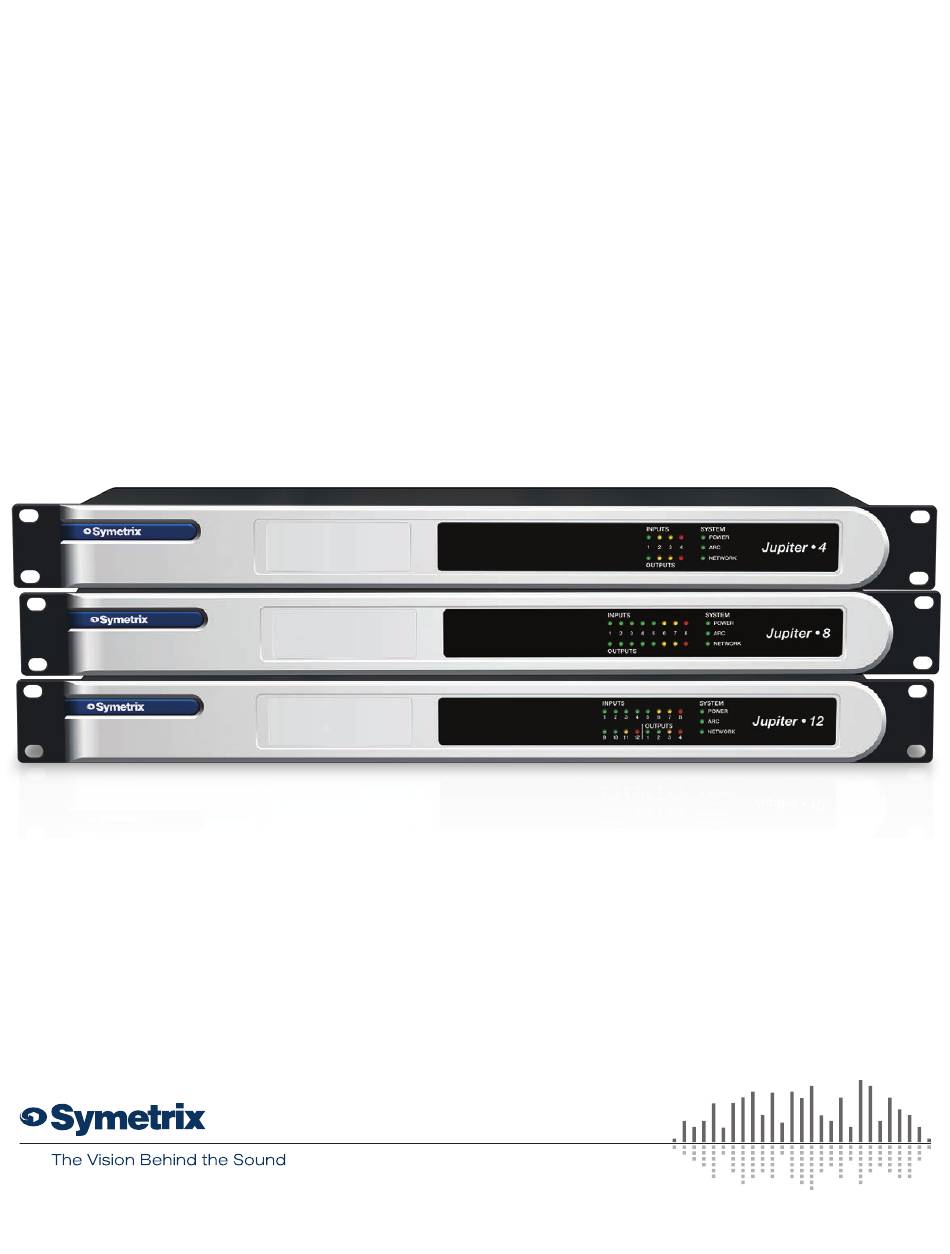

  • Page 1 Jupiter 4, Jupiter 8, Jupiter 12 Quick Start Guide...
  • Page 3 Class A digital device, pursuant to part 15 of time. of the FCC Rules. These limits are designed to provide user serviceable parts inside this Symetrix reasonable protection against harmful interference when Refer all servicing to qualified service product.
  • Page 4 DO NOT plug the ARC connectors on Symetrix products into any RJ-45 connector labeled “SYMLINK” , “ETHERNET” or “COBRANET” The “ARC” RJ-45 connectors on Symetrix products can carry anywhere from 6 to 24 VDC which can damage SymLink, Ethernet and CobraNet circuitry.
  • Page 5 Jupiter apps future-proofs your hardware investment. • Live Sound Engineered by Symetrix. Jupiter brings you controllable and simple to use audio DSP. Engineered and built in the US by Symetrix… Explore Jupiter. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728...

  • Page 6: Performance Data

    SYSTEM 48 kHz. Sampling Rate Frequency Response 20 Hz - 20 kHz, +/- 0.5 dB. Dynamic Range > 110 dB (A-Weighted), input to output. THD+Noise < -85 dB (un-weighted); 1 kHz @ +22 dBu with 0 dB gain. Interchannel Crosstalk < -90 dB @ 1 kHz, typical. Latency < 1.6 ms, input to output with all DSP inactive. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...
  • Page 7 Illuminates green to indicate network (Ethernet) activity, amber to indicate acquisition of a network address in DHCP mode. ARC (Connector) RJ45 connector Distributes power and control data to Symetrix ARC wall panel remotes. Uses standard straight- through UTP CAT5 cabling. Warning! Refer to the RJ45 Warning for compatibility information. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728...

  • Page 8: Rear Panel

    Comments Power Input Locking power plug Accepts power from Symetrix power supply part number 12-0002-A (100-240 VAC, 50-60 Hz, 25 Watts max). Connect only to a grounded power outlet. RJ45 jack Distributes power and RS485 data to one or more ARC devices. Uses standard straight-through UTP CAT5 cabling.

  • Page 9: Hardware Connections

    Ethernet cable may always be used. A cross-over cable is not required. NOTE 2: The Ethernet connection is also available for 3rd party control. Refer to the control protocol document available on the Symetrix web site or within the Jupiter software help file for more information. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728...
  • Page 10 External Controller Wizard. These ports may follow most buttons and LEDs in software. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...

  • Page 11: Wiring Reference

    Tip = (+) Plus Sleeve = (-) Minus and Ground information purposes only. Symetrix can not anticipate every connector type on non-Symetrix products. It is the user’s responsibility to determine what connection is needed. In addition, Symetrix accepts no responsibility for RCA Plug [unbalanced] injury or damage caused by user created wiring.
  • Page 12 RCA Plug [balanced out to unbalanced in] Sleeve = Ground TRS 1/4" Plug [balanced] Tip = (+) Plus Tip = (+) Plus Ring = Unused Sleeve = Ground 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...
  • Page 13 169.254.x.x where x.x is the last four alphanumeric information. characters of Jupiter’s MAC address (MAC address hex value is converted to decimal for IP address). The Jupiter’s MAC address can be found on a sticker on the bottom of Jupiter. When there is no DHCP server 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...
  • Page 14 4. Under “This connection uses the following items”, select 172.31.254.254 and a Subnet Mask of 255.240.0.0 “Internet Protocol (TCP/IP)” and press “Properties”. 2. 192.168.0.0/16 = IP Addresses 192.168.0.1 through 192.168.254.254 and a Subnet Mask of 255.255.0.0 3. 10.0.0.0/8 = IP Addresses 10.0.0.1 through 10.254.254.254 and a Subnet Mask of 255.255.0.0 Jupiter 4, 8 or 12 Host Computer & PC LAN IP: 10.0.0.2 IP: 10.0.0.3 SM: 255.255.0.0 SM: 255.255.0.0 GW: 10.0.0.1 GW: 10.0.0.1...
  • Page 15 5. Right-click the desired connection and choose “Properties”. Configuring your computer for a network connection: Windows Vista or higher ® 1. Select “Start->Control Panel”. 2. Select “Network and Internet”. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...
  • Page 16 Once you have completed the setup of your network and any network hardware/interfaces, you may install the Jupiter software or launch the software if you have already installed it, then run the Connection Wizard. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...
  • Page 17 From the Symetrix web site Once you have completed the Hardware Connections and (http://www.symetrix.co): connected your network (refer to Network Configuration), 1. Download the Jupiter software installer from the Symetrix you may open Jupiter software and run the Connection web site. Wizard.

  • Page 18: Connection Wizard

    If there is ever any doubt, follow the instructions in the Upgrade Firmware topic to check your firmware version or to upgrade the firmware. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...
  • Page 19 IP address of the device you wish to connect to and that device is currently available on the network: Click the Finish button to exit the Connection Wizard. You are now ready to Go Online. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...
  • Page 20 Either method brings up the Firmware Update dialog. Click After the firmware upgrade complete, the Jupiter hardware Browse... to locate the upgrade .cab file. will reboot. When it finishes, you may go online again. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...
  • Page 21 RoHS compliant. The chassis shall be constructed of cold rolled Authorized signature: steel and moulded plastic, and mount into a standard 19” 1U EIA rack. The device shall be a Symetrix Jupiter model 4, 8 or 12. Dane Butcher, President, Symetrix Incorporated. 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728...

  • Page 22: Warranty And Service

    Symetrix may, at its via the web site: http://support.symetrix.co. option, require proof of the original date of purchase (dated copy of original retail dealer’s invoice).
  • Page 23 Jupiter 6408 216th Street SW Mountlake Terrace, WA 98043 USA +1.425.778.7728 +1.425.778.7727 | www.symetrix.co...
  • Page 24 Item No. 53-0048 Jupiter Quick Start Guide © 2010 Symetrix, Inc. All rights reserved. Printed in the United States of America. The information in this document is subject to change without notice. Symetrix, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor is it liable for incidental or consequential damages resulting from the furnishing, performance, or use of this material. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Symetrix assumes no responsibility with regard to the performance or use of these products. Under copyright laws, no part of this brochure may be reproduced or transmitted in any form or by any means, electronic or mechanical, without permission in writing from Symetrix, Inc.
