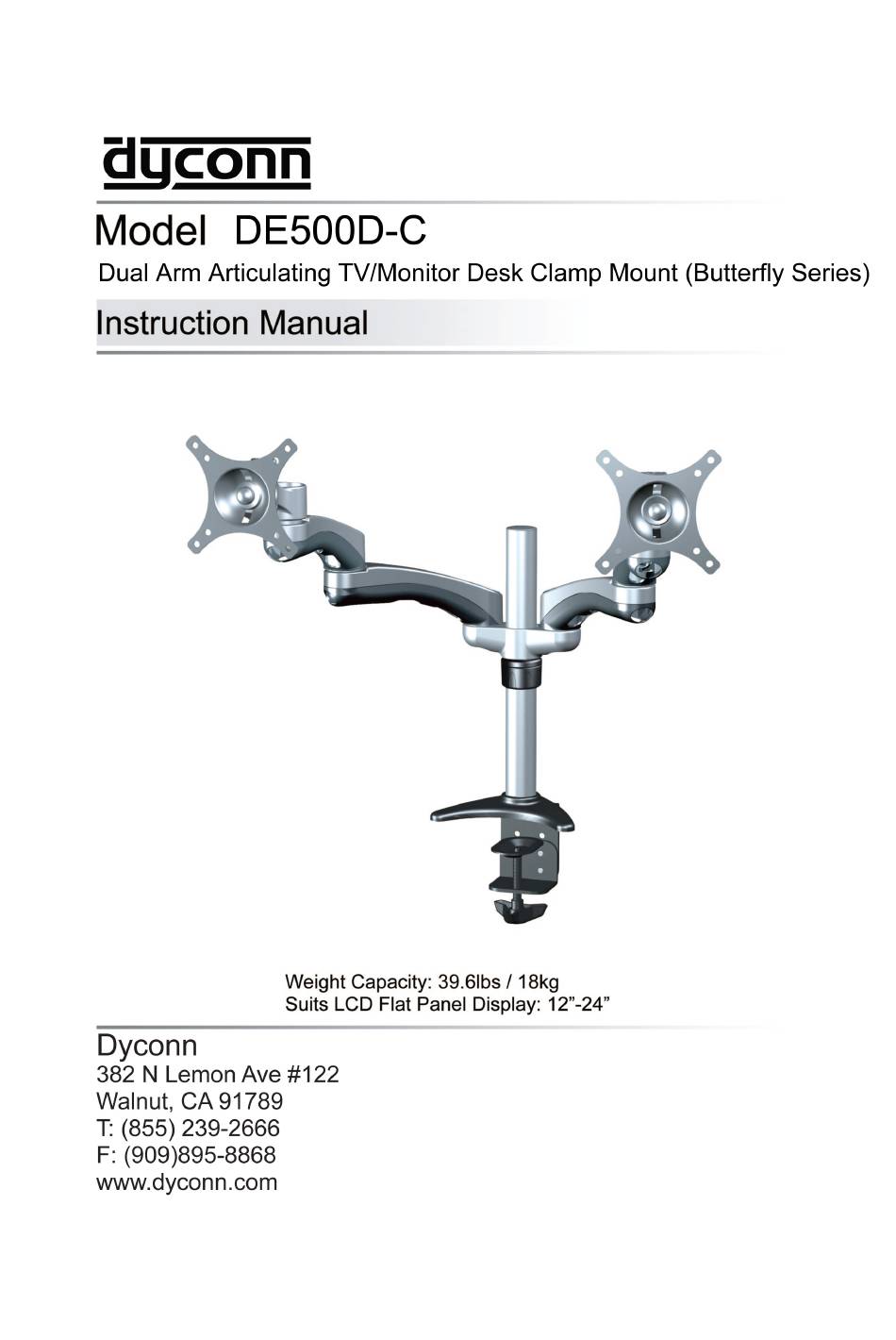

Dyconn Butterfly DE500D-C Instruction Manual

Dual arm articulating tv/monitor desk clamp mount
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Butterfly DE500D-C and is the answer not in the manual?

Questions and answers

Related Manuals for Dyconn Butterfly DE500D-C

Summary of Contents for Dyconn Butterfly DE500D-C

  • Page 2 Although we try our best, Dyconn makes no claim that the information comprised herein covers all conditions or details in connection with installation or use of this product. Dyconn assumes no responsibility for accuracy or adequacy of information comprised in this document.

  • Page 3: Specifications

    Specifications Combined Weight Capacity 39.6(LBS) / 18(KG) Suits LCD Flat Panel Displays 12”(300mm)-24”(610mm) Maximum Extension 18”(457mm) Depth from Pole (Closed) 2.3”(57.5mm) Tilt adjustment +/- 40 degree Display Pan Swing- Side to side +/- 90 degree Pivot (Desk / Display / Arm) 360 / 180 /360 degree Maximum Mounting Surface Thickness 3”(75mm)

  • Page 4: Supplied Parts

    Supplied Parts Page...

  • Page 5: Required Tools

    Required Tools ASSEMBLY and INSTALLATION INSPECT THE MOUNT BEFORE ASSEMBLY 1. Carefully inspect/verify that all components are present. 2. If the mount/components are damaged or missing, please contact the company/seller of the product you purchased and report the issue. Note: Read all assembly instructions before staring the installation process.
  • Page 6 Step 【1】 Installation of Desk Clamp Using improper screws or screw size may damage your display. Screw should be first inserted and turned by hand before using the Hexagon key or with Screwdriver to complete the attachment. Note: Other tools may be required depending on your method of installation. Note: It is installer’s responsibility to make sure the desktop structure to which this product is attached can support the combined weight of all components Maximum...
  • Page 7 3. Place the Desk Clamp (3) on top of the desk in the desired position and ensure the clamp opening is facing towards the edge of desktop.(See Figure 1-3) Turn and tighten by hand to ensure that the Desk Clamp fully contacts to desktop surface and it is secure in place.

  • Page 8: Attaching The Display

    Step 【2】 Display Installation Using improper screws or screw size may damage your display. If spacers are required, be sure to use correct size of screws. Proper screws will easily and completely thread into the display mounting holes. Inadequate thread engagement in the display may cause display to fall.
  • Page 9 3. Determine depth of recessed mounting holes relative to back of surface of display. 4. Select proper length of Screws (6、 8) place the Spacers (4) on the back of display, follow by position and orient the mounting holes in the Tilter Mount Bracket so that the mounting holes on the Tilter Mount Bracket and Spacers (4) are aligned.
  • Page 10 Step 【3】 Attaching LCD Arm Assembly Desk Mount LCD Arm Assembly will only work when a display is properly installed. Attaching the LCD Arm Assembly 1. Attach the LCD Arm Assembly (1) to the Pole by inserting the LCD Arm Assembly down from top into the pole.
  • Page 11 3. Place the Cover (11) and tighten with Phillips Screw M6x12mm (2) and Plastic Washer (15) using Phillip Screwdriver. Do not over tighten. This is to prevent the LCD Arm Assembly to be lift unnecessary. (See Figure 3-3) Figure 3-3 Page...
  • Page 12 Step 【4】 Cable Management Ensure LCD Arm Assembly is fully extended before connecting cables. Exercise caution when attaching or removing the display to avoid personal injury or damage to equipment. Disconnect power before removing the display. Note: Ensure leave enough slack in the cables to allow for movement of the Arms. Installing Cable Management 1.
  • Page 13 3. Use the supplied Cable Clip (14) to secure display cable to the pole.（See Figure 4-3） Figure 4-3 Page...
  • Page 14 Step 【5】 Adjusting the Display Monitor Forced movement of the LCD Arm Assembly or Mount Bracket without loosening the screws will damage LCD Arm Assembly or display monitor. Exercise caution when adjusting the display, to support the display to avoid damage to equipment.
  • Page 15 4. To increase or decrease the resistance of the Pivot Joint to suit display monitor swing side to side, adjust the Tension Hex Cap Screw located on front side of the LCD Arm to secure the position. (See Figure 5-3) 5.
  • Page 16 Figure 5-5 Page...

  • Page 17: Ergonomic Guidelines

    Step 【6】 Ergonomic Guidelines Note: Proper ergonomic design is necessary to prevent repetitive strain injuries, which can develop over time and can lead to long-term disability 1. Ensure the correct focal distance for ultimate visual comfort. For visual comfort, a viewing distance between 460mm (18”) to 610mm (24”) is recommended.
  • Page 18 2. To assess the fit between a person and their work, agronomists recommended that the optimal of your screen position should be slightly below eye level. Viewing angle should be approximately 10°-20° downward of the screen’s center. The lumbar (bottom five vertebrate in the spine) needs to be supported to decrease disc pressure.
  • Page 19 Dyconn disclaims any liability for modification, improper installations, or installations over specified weight range. Dyconn will not be liable for any damages arising out of the use or inability to use Dyconn products. Warranty specification is subject to change without prior notice.
