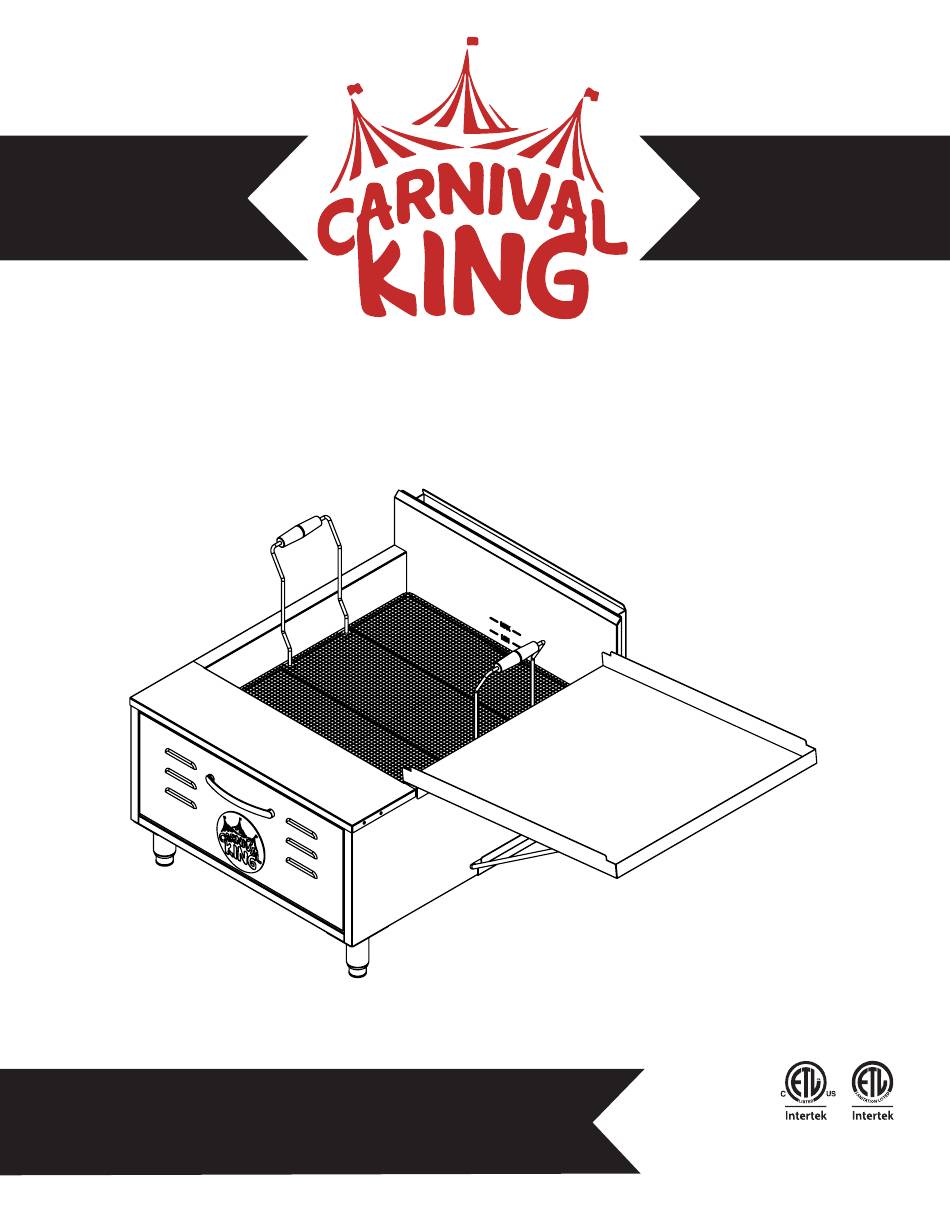

- Page 1 FUNNEL CAKE FRYERS 03/2021 Item #382DFCG23N, #382DFCG23L, #382DFCG32N, #382DFCG32L www.CarnivalKingSupplies.com...
-
Page 2: For Your Safety
Also Available 380FUNNELKIT 600GKM3448 (sold separately) (sold separately) Carnival King Funnel Cake Kit Regency 48" Mobile Gas Connector Hose Kit Includes: • Includes (2) elbows, full port valve, • Easy-to-use ring mold features a long restraining device, and quick disconnect handle and resting plate •... - Page 3 WIDTH DEPTH HEIGHT BURNERS TANK CAPACITY WIDTH DEPTH HEIGHT BTU/HOUR W.C. 382DFCG23L 23" Single 15-30 lb. 21" 54,000 10" 382DFCG23N 23" Single 15-30 lb. 21" 54,000 4" 382DFCG32L 32" Single 20-40 lb. 21" 81,000 10" 382DFCG32N 32" Single 20-40 lb.
-
Page 4: Installation
www.CarnivalKingSupplies.com info@carnivalking.com gas FUNNEL CAKE FRYER Manual Installation Do not use the door or its handle to li the fryer. Before installing the fryer, verify that the type of gas (natural or propane) is in conformity to the specifications on the fryer data plate, which is located on the inside of the door panel. Make sure the fryer is configured for the proper elevation. -
Page 5: Flue Connection
If the fryer is being installed at over 2,000 feet altitude and that information was not specified when ordered, contact the appropriate authorized Carnival King Service Representative. Failure to install with proper orifice sizing will result in poor performance and may void the warranty. -
Page 6: Testing The Gas Supply Piping System
www.CarnivalKingSupplies.com info@carnivalking.com gas FUNNEL CAKE FRYER Manual Gas Connection Cont. TESTING THE GAS SUPPLY PIPING SYSTEM: When test pressures exceed ½ PSI (3.45 kPa), the fryer and its individual shuto valve must be disconnected from the gas supply piping system. An adequate gas supply is imperative. Undersized or low pressure lines will restrict the volume of gas necessary for satisfactory performance. -
Page 7: Over-Temperature Shutdown
www.CarnivalKingSupplies.com info@carnivalking.com gas FUNNEL CAKE FRYER Manual Over-Temperature Shutdown If the shortening becomes overheated, a high-temperature shuto device will turn the gas valve o and extinguish the pilot. If the fryer shuts down due to overheating, DO NOT relight the pilot until the shortening temperature is below 300˚F (149 C). -
Page 8: Extended Shutdown
www.CarnivalKingSupplies.com info@carnivalking.com gas FUNNEL CAKE FRYER Manual Turning On the Fryer 1. Do NOT turn the thermostat "ON" until the fry pot is filled with oil or solid shortening. 2. Once the fry pot is filled with shortening, set the thermostat knob to the desired temperature 3. -
Page 9: Draining The Oil
www.CarnivalKingSupplies.com info@carnivalking.com gas FUNNEL CAKE FRYER Manual Draining the Oil WARNING Hot oil and hot parts can cause burns. Let the unit cool completely before cleaning. Use care when operating, cleaning, and servicing the fryer. 1. Turn the thermostat knob to the "OFF" position. 2. -
Page 10: Boil Out Procedure
www.CarnivalKingSupplies.com info@carnivalking.com gas FUNNEL CAKE FRYER Manual Cleaning Cont. NOTICE: Do not use chlorine or sulfate/sulfide cleaners. • Rinse thoroughly, and then polish with a so dry cloth. • Keep the fryer exterior clean and free of accumulated grease to prevent stubborn stains from forming. -
Page 11: Maintenance
www.CarnivalKingSupplies.com info@carnivalking.com gas FUNNEL CAKE FRYER Manual Maintenance WARNING Hot oil and hot parts can cause burns. Use care when operating, cleaning, and servicing the fryer. WARNING Spilling hot fryer compound can cause severe burns. Do not move fryer without draining all frying compound from the tank. -
Page 12: Exploded Diagram
www.CarnivalKingSupplies.com info@carnivalking.com gas FUNNEL CAKE FRYER Manual Exploded Diagram... -
Page 13: Replacement Parts
www.CarnivalKingSupplies.com info@carnivalking.com gas FUNNEL CAKE FRYER Manual Replacement Parts Item# Description 382200500746 1" drain valve 382202200728 Thermostat 382101103628 Knob 382101103628 Hi limit 382200900473 Adjustable leg 382200700073 Door handle 38201107800L Drain board supporting rack(For 382DFCG23) 38201107828L Drain board supporting rack(For 382DFCG32) 382201501328 Nozzle for main burner (Nat) 38201501328L...
