Hillstreet Beds Emily 1862 Twin Assembly Instructions

HILLSTREET BEDS, LLC.
DATE:03-07-00 Customer Service Number 502 562-0000
UNLESS OTHERWISE STATED, PLEASE DO NOT TIGHTEN BOLTS (AND/OR) SCREWS UNTIL UNIT IS
COMPLETELY ASSEMBLED ON A FLAT SURFACE.
have come loose during shipment. Periodic checks are recommended to insure that all components are
in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult
assembly required.

PARTS LIST

(2) Duo Panels
A
(2) Leg Extensions
B
(2) Headboard Posts
C
(2) Footboard Posts
D
(2) Long Canopy Bars
E
(3) Short Canopy Bars
F
(2) End Canopy Bars
G
(4) Finials
I
Bed Frame
*
Not Included
A

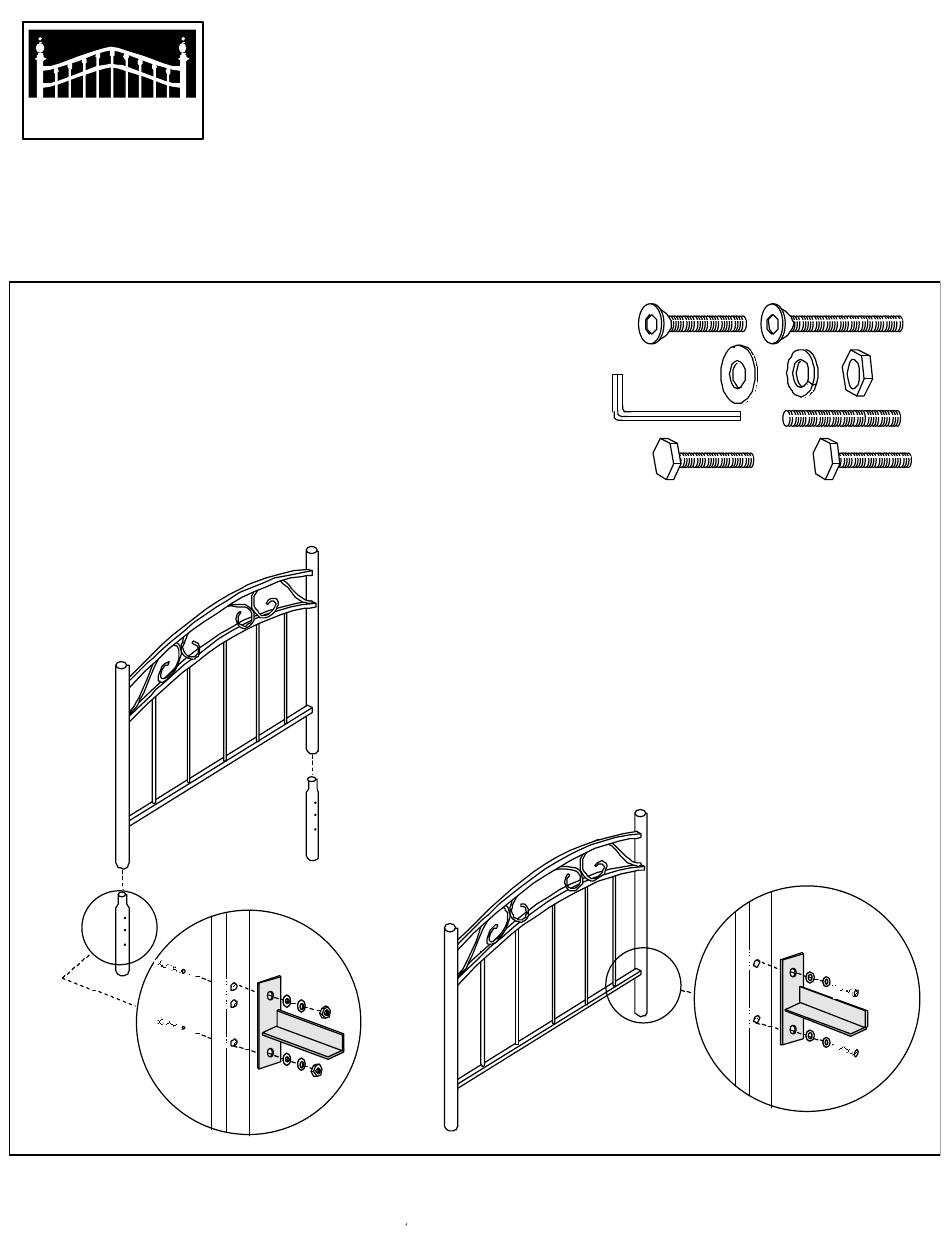

FIGURE 1
B
L
L
CARE & MAINTENANCE
new Bed Set will ever need. Never use harsh or abrasive cleaners for polishing. Periodic checks
are recommended to make sure that all bolts, screws and nuts are securely tightened.
E mily Be d & Ca n op y S e t
Model #1862/1863 Twin
Model #1864/1865 Full

HARDWARE LIST

(4) Short Allen Bolts
J
(4) Short Hex Bolts
K
(6) Long Hex Bolts
L
(4) Threaded Rods
M
(4) PVC Washers
N
(4) Flat Metal Washers
O
(4) Hex Nuts
P
(1) Allen Wrench
Q
(4) Long Allen Bolts
R
B
N
O
P
*
N
O
P
:
The touch of a soft cloth is all the maintenance the finish of your
Examine all packaging material for small parts that may
Q

STEP 1

Remove the Feet from one Duo Panel (A) that you
choose to use as the headboard. Carefully insert
both Leg Extensions (B) into the posts on your
Headboard as shown in FIGURE 1. Next, insert the
Feet into the bottom of each Leg Extension (B).

STEP 2

Attach Bed Frame (bed frame is not included) to
each Leg Extension (B) on the headboard using 2
Long Hex Bolts (l), 2 Metal Washers (O), 2 PVC
Washers (N), and 2 Hex Nuts (F). Tighten all bolts.

STEP 3

Attach Bed Frame to the remaining Duo Panel (A)
(This will be your footboard) using 2 Short Hex Bolts
(K), 2 Metal Washers (O), 2 PVC Washers (N). See
FIGURE 2. Tighten all bolts.
A
ASSEMBLY
INSTRUCTIONS
TOOLS REQU IRED
FO R A SSEM BL Y
A ll en W re nc h
(Inc lu de d)
A dj us t ab le W re nc h
(N ot Inc lu de d)
J
R
O
N
K
FIGURE 2
N
O
N
O
P
M
L
K
*
K
