HILLSTREET BEDS, LLC.
DATE: 5/15/98
UNLESS OTHERWISE STATED, PLEASE DO NOT TIGHTEN BOLTS (AND/OR) SCREWS UNTIL UNIT
IS COMPLETELY ASSEMBLED ON A FLAT SURFACE.
Examine all packaging material for small parts that may have come loose during shipment. Periodic
checks are recommended to insure that all components are in proper position, tight and free from
damage. Keep this assembly instruction for future reference.
Adult assembly required.

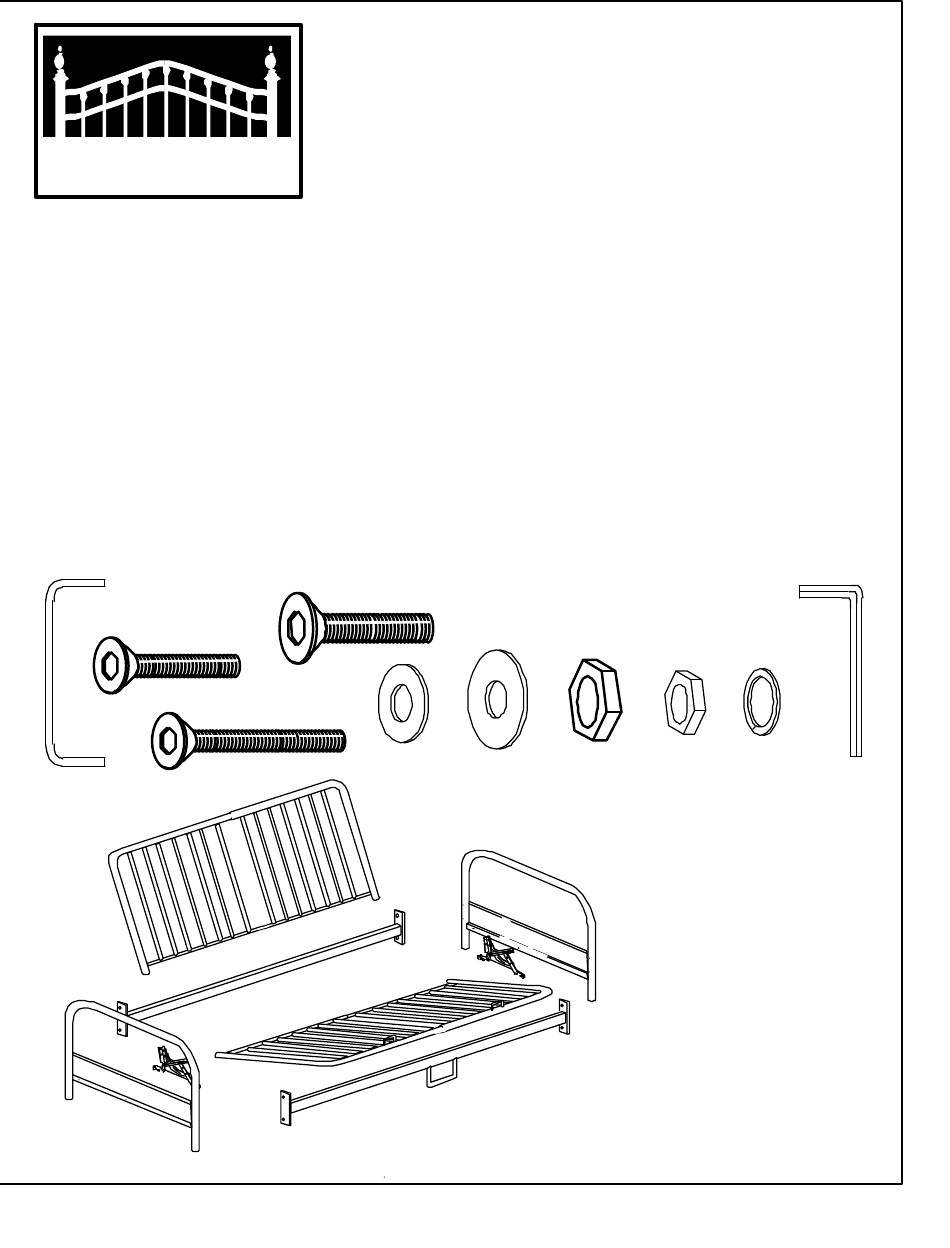

PARTS LIST
(1) Back M attress Support Frame
A
(1) Bottom M attress Support Frame
B
(1) Rear C ross Rail
C
(1) Freont Cross Rail
D
(w ith center support)
(1) Right Side Panel
E
(1) Left Side Panel
F
(1) Left Futon Hinge
G
(1) Right Futon Hinge
H
I
K
A
F
G
G
ENEVA
MODEL #1454 Black
MODEL #1662 Matte White
IMPORTANT
N
M
S
B
C
D
F
UTON
HARDWARE LIST
I
(2) Frame Hooks
(8) Short Allen Bolts
K
(8) Small Hex Nuts
L
(16) Metal Washers
M
(4) Short Allen Bolts
N
(Large D iameter)
(4) Large Metal Washers
O
(4) Lock Washers
P
(4) Large Hex Nuts
Q
(1) Allen Wrench
R
(8) Long Allen Bolts
S
Q
O
HARDWARE NOT
DRAWN ACTUAL SIZE
E
H
ASSEMBLY
INSTRUCTIONS
R
P
L
TOOLS REQUIRED
FOR ASSEMBLY
Allen Wrench
(Included)
Phillips Screwdriver
(Not Included)
PG - 1
Advertisement
Table of Contents
Related Manuals for Hillstreet Beds Geneva Futon 1454
Summary of Contents for Hillstreet Beds Geneva Futon 1454
- Page 1 INSTRUCTIONS ENEVA UTON MODEL #1454 Black MODEL #1662 Matte White HILLSTREET BEDS, LLC. DATE: 5/15/98 IMPORTANT UNLESS OTHERWISE STATED, PLEASE DO NOT TIGHTEN BOLTS (AND/OR) SCREWS UNTIL UNIT IS COMPLETELY ASSEMBLED ON A FLAT SURFACE. Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are in proper position, tight and free from damage.
- Page 2 IMPORTANT PLEASE MAKE SURE THAT HOLES ( ON EACH SIDE PANEL) FOR ATTACHING THE FUTON HINGES ARE NEAREST REAR OF FUTON. STEP 1 CAREFU LLY ATTAC H THE RIGHT FUTON HINGE (H)TH E RIGHT SIDE PANEL (E) USING 2 SHORT ALLEN BOLTS WITH LARGE DIAMETERS (N), 2 LARGE METAL WASHERS (O), 2 LOCK WASHERS (P) AN D 2 LARGE HEX NUTS (Q).
- Page 3 STEP 3 WITH THE HELP OF FRIEND CAREFULLY ATTACH THE BACK AND BOTTOM MATTRESS SUPPORT FRAMES (A & B) TOBOTH FUTON HINGES (H & G) USING 2 LONG ALLEN BOLTS (S), 2 METAL WASHERS (M) AND 2 SMALL HEX NUTS (L) FOR EACH HINGE. MAKE SURE THAT THE HANDLES ON BOTTOM MATTRESS SUPPORT FRAME (B) FACES UPWARD WHEN ATTACHING, AND HOLES FOR INSERTING FRAME HOOKS (I) INTO THE BACK MATTRESS SUPPORT FRAME (A) IS FACING UPWARDS.
