Luminite GX30 Globe Installation Handbook

12 volt hard wired pir detector

Advertisement

Quick Links

12 Volt
Hard Wired
PIR Detector
Installation
Handbook
Type: GX30 Globe
Issue 1
2a BELLEVUE ROAD, FRIERN BARNET, LONDON, N11 3ER
Tel: 0044 (0) 208 368 7887 Fax: 0044 (0) 208 368 3952

Advertisement

loading
Need help?

Need help?

Do you have a question about the GX30 Globe and is the answer not in the manual?

Questions and answers

Summary of Contents for Luminite GX30 Globe

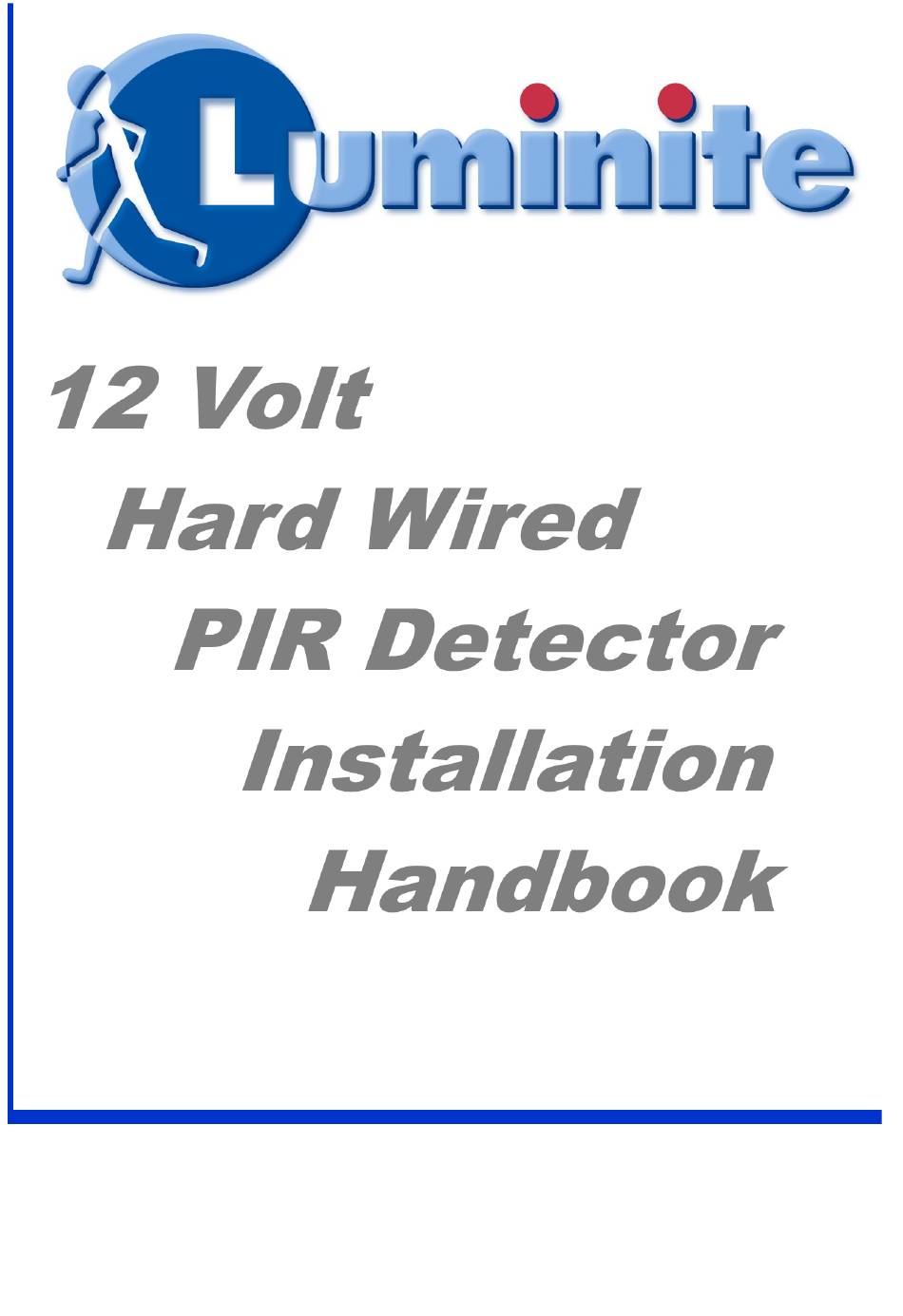

  • Page 1 12 Volt Hard Wired PIR Detector Installation Handbook Type: GX30 Globe Issue 1 2a BELLEVUE ROAD, FRIERN BARNET, LONDON, N11 3ER Tel: 0044 (0) 208 368 7887 Fax: 0044 (0) 208 368 3952...
  • Page 2 Introduction The GX30 Globe is a low voltage Passive Infra Red Detector (PIR) designed to meet the newest and most demanding requirements of the CCTV market. This detector has two volt free contacts for interfacing to a CCTV or alarm system or both at the same time.
  • Page 3 Mounting the unit Choose a flat surface facing Optional tamper approximately in the direction to Template be monitored. Using the template drill the wall to accept two fixing screws, the Fixing holes cable entry and tamper cup. We recommend using the tamper cup on uneven wall surfaces.
  • Page 4 Rear view Front and rear tamper Cut the grommets to allow a waterproof cable entry. Contact A Contact B 12 volts DC Wiring. Provide 12 volts DC to terminals +12V DC and GND as shown. Supply current is a maximum of 17m/a. Tamper.
  • Page 5 The mounting height for this detector can be up to 6 metres. The diagrams below show some examples of range versus height. For pet immunity, mask off the lower beams as OVERHEAD VIEW shown using adhesive masking or insulation tape. For curtain coverage mask off the long range beams.
  • Page 6: Switch Setting Table

    Switch setting table This product is supplied with all switches in the OFF position which is the default setting. The 10 switches have the following functions. PIR detection range Pulse counting Walk Test Light sensor Contact time Contact polarity PIR range Switch 1 Switch 2 Pulse count...
  • Page 7 Contact B Time Switch 7 Switch 8 1 second 30 seconds 2 minutes 5 minutes Contact A polarity Switch 9 Contact B polarity Switch 10 Switch setting table PIR detection range Detection range can be increased or decreased from 10 metres to 30 metres as preferred. Increasing the range will also increase the risk of false detection and should only be used in quiet stable locations.
  • Page 8 (PBB) or polybrominated depheny eithers (PBDE) in more than one percent specifi ed by EU directive 2002/95/EC, except exemptions stated in EU directive 2002/95/EU annex. CE Directive 2004/108/EC (CE Directive): Herby, Luminite declares that this product is in compliance with the CE essential require- ments and other relevant provisions of Directive 2004/108/EV.
