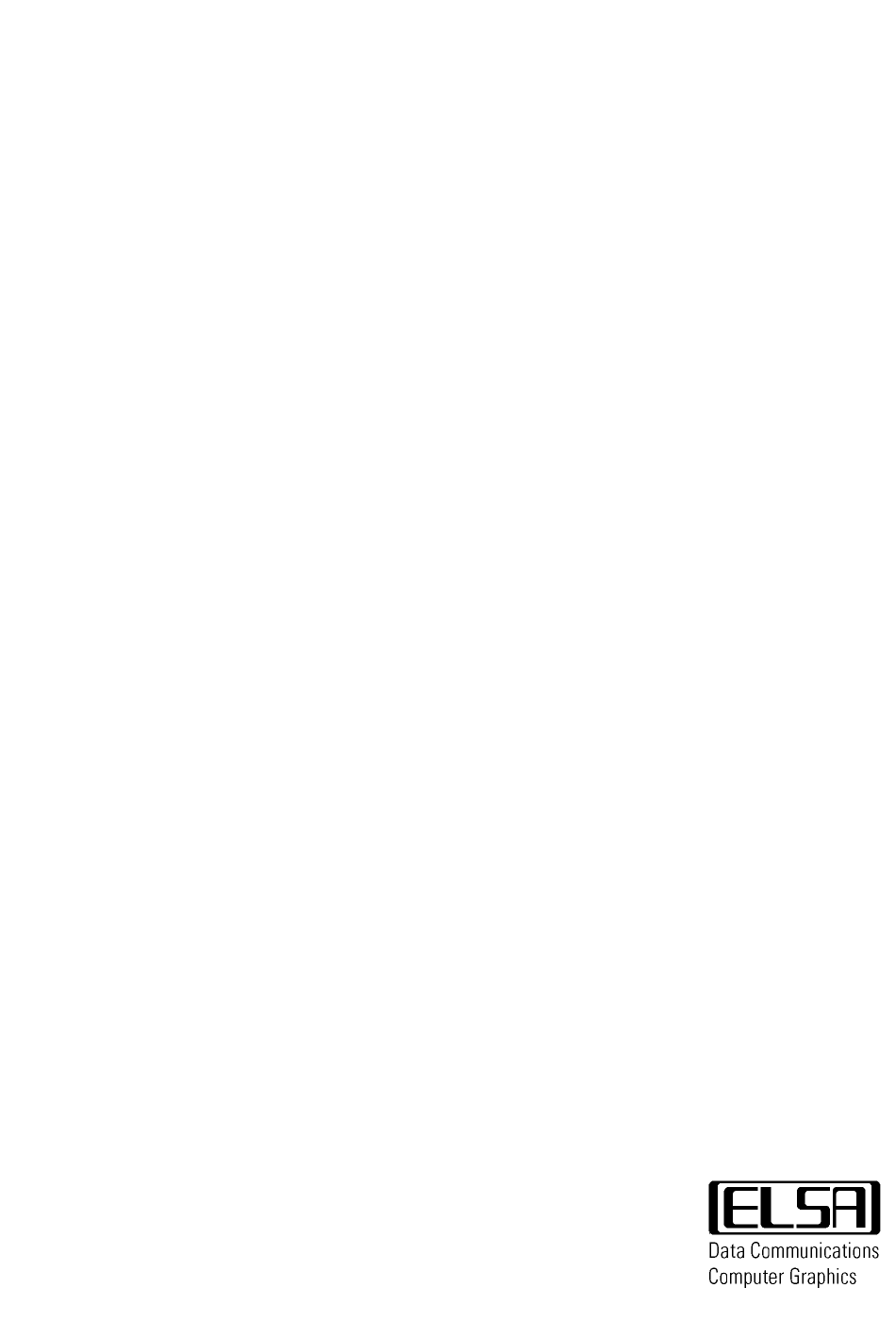

  • Page 1 ELSA TanGo 1000 User Manual...
  • Page 2 Copyright © 1997 ELSA GmbH, Aachen (Germany) While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. ELSA shall be liable only to the degree specified in the terms of sale and delivery.
  • Page 3 Internet Explorer) is required for reading and printing HTML files. The ACROBAT Reader program is required to read and print PDF files. It can also be found on the ELSA TanGo 1000- CD and may be installed using the CD-Setup program.
  • Page 4 What's more, our page provides access to selected search engines. How to set the Elsa Homepage as your default home page: You can reach the ELSA Homepage immediately after establishing your connection to the Internet. In the following, we will describe how to reach the ELSA Homepage automatically each...

  • Page 5: Table Of Contents

    Icons and Their Meanings ....................13 Installing ELSA ISDNconfig under Windows 95 and Windows NT 4.0........14 Installation of Telix under DOS....................15 Installation of ELSA ZOC under Windows 95 and Windows NT 4.0........16 Installation of LapLink under Windows 95................17 Online Services........................18 2.7.1...
  • Page 6 Table of Contents ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 7: Introduction

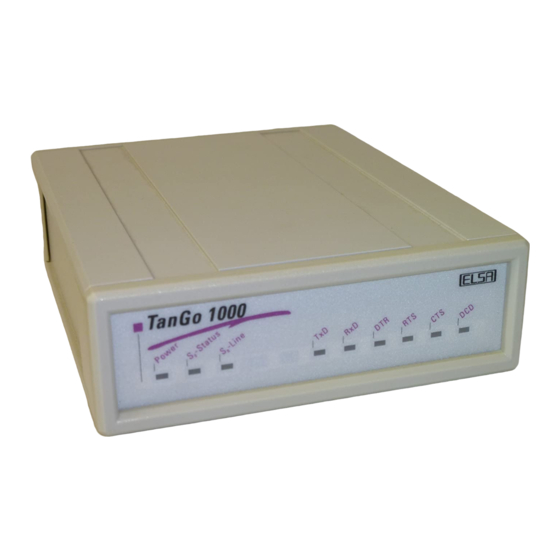

    Introduction Brief Description and Characteristics The ELSA TanGo 1000 is a desktop terminal adapter of the ELSA ISDN product family, designed to connect your PC to an ISDN basic point-to-multipoint connection ISDN-point-to-point connection or to a private branch exchange (PBX system) with an S connection.
  • Page 8 ISDN connection and the line to facilitate troubleshooting of possible system faults. ELSA-RVS-COM With the included ELSA-RVS-COM software package, the ELSA TanGo 1000 ready for immediate use with high performance components such as Group 3 fax, answering device and telephone functions.
  • Page 9 Introduction ISDN S connector cable serial connector cable 9 pin/25 pin adapter CD-ROM with installation software and additional utilities documentation: Installation Guide and manual ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
  • Page 10 Introduction Notes ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 11: Software Installation

    Software Installation Software Installation After connecting the ELSA TanGo 1000 to your computer in accordance with the Installation Guide, proceed with the software installation. This chapter will provide information for the installation of the included software. A CD-ROM with software is provided as standard with the ELSA TanGo 1000 terminal adapter.

  • Page 12: Installation Elsa Rvs-Com

    Software Installation Installation ELSA-RVS-COM ELSA-RVS-COM for Windows 95 and Windows NT 4.0 is a powerful, universal communications program which provides you with the most important data communications applications in a convenient, easy-to-use package. ELSA-RVS-COM provides the following functions: Group 3 fax (analog)

  • Page 13: Installation Under Windows 95 Or Windows Nt 4.0

    Boot Windows 95 or Windows NT 4.0. When installing under Windows NT, ensure beforehand that you have administrative privileges. Insert the ELSA TanGo 1000- CD in your CD drive (e.g. D:). The CD-Setup will start automatically. Under Selection: in the ELSA CD-Setup, select ELSA-RVS-COM in the list and click OK to start the setup program.
  • Page 14 Software Installation After the installation is complete, a status indicator for the new ELSA-RVS-COM program folder appears on the taskbar. Click on the status indicator to open the program group. NOTE: If you experience difficulties when configuring ELSA RVS-COM, support and further information is available at all times using the comprehensive ELSA-RVS-COM help function.

  • Page 15: Icons And Their Meanings

    Provides information pertaining to ELSA RVS-COM . Installation Wizard The Installation Wizard will guide you through the configuration of the various ELSA- RVS-COM components. It can also be used for subsequent, user-specific modifications and settings. The telephone answering device function can be configured in the CommCenter , for example.

  • Page 16: Installing Elsa Isdnconfig Under Windows 95 And Windows Nt 4.0

    ELSA ISDNconfig is a utility program which permits the simple, convenient configuration of your ELSA TanGo 1000 . It can be used to set the D channel protocol for example, to enter the MSN or to install the current firmware for the ELSA TanGo 1000 .

  • Page 17: Installation Of Telix Under Dos

    Setup of the included ELSA CD. To install Telix Lite on your computer, proceed as follows: Insert the ELSA TanGo 1000 CD in your CD drive (e.g. D:), switch to the ELSAWARE\ENGLISH\DOS\TELIX directory and run the file INSTALL.BAT (INSTALL.BAT M ). Please read the following notes with M .

  • Page 18: Installation Of Elsa Zoc Under Windows 95 And Windows Nt 4.0

    ELSA ZOC is a communications program which you can use to address your ISDN terminal adapter from your PC. After starting ELSA ZOC , you will be able to send individual AT commands to the terminal adapter. To install ELSA ZOC on your computer, proceed as follows: Switch the ISDN terminal adapter on and boot Windows 95 or Windows NT .

  • Page 19: Installation Of Laplink Under Windows 95

    LapLink for Windows 95. To install LapLink for Windows 95 proceed as follows: Switch the ISDN terminal adapter on and boot Windows 95. Insert the ELSA TanGo 1000- CD in your CD drive (e.g. D:). The CD-Setup will start automatically. Under select...

  • Page 20: Online Services

    Internet. To install AOL on your computer, proceed as follows: Switch the ISDN terminal adapter on and boot Windows 95. Insert the ELSA TanGo 1000- CD in your CD drive (e.g. D:). The CD-Setup will start automatically. Under Selection: in the ELSA CD-Setup, select Install AOL in the list and click OK to start the setup program.

  • Page 21: Installation Of Compuserve

    To install CompuServe on your computer, proceed as follows: Switch the ISDN terminal adapter on and boot Windows 95. Insert the ELSA TanGo 1000- CD in your CD drive (e.g. D:). The CD-Setup will start automatically. Under Selection: in the ELSA CD-Setup, select CompuServe Access Software from the list and click on OK .
  • Page 22 Software Installation Notes ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 23: At Commands

    ISDN communications. A complete description of the AT command set can be found on the ELSA TanGo 1000 CD. A terminal program is required to enter AT commands via a PC (e.g. ZOC ).
  • Page 24 To set the bit 6 of register S14, enter the command ATS14.6=1 . If you would like this value to be maintained after the ISDN terminal adapter is switched off, the new entry can be stored with the command AT*W . ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 25: Frequently Asked Questions And Answers

    Euro-ISDN (DSS1) or national ISDN (1TR6)? ELSA ISDNconfig is a utility program which permits the simple, convenient configuration of your ELSA TanGo 1000 . It can be used to set the D channel protocol for example, or to enter the MSN or the EAZ.
  • Page 26 Is your ISDN terminal adapter connected to the serial interface (COM port) specified in the settings of your communications software? You can determine the IRQ of your serial interface with the program ELSA ISDNconfig . If the configuration of your ISDN adapter is incorrect, try to restore the default settings with the command AT&F , even if the command isn't displayed on the...
  • Page 27 An error-controlled connection to Btx/T-Online (dial number 01910 - Germany only) can be established with the setting AT$IBP=BTX in the init string of T-Online 1.2x in your Btx program. T-Online 2.0 requires the command AT$IBP=HDLCP . ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
  • Page 28 Frequently Asked Questions and Answers Notes ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 29: Advice And Help

    In the event that questions arise during the installation or use of your ISDN terminal adapter, please consult this handbook first. In addition, README files in HTML format can be found on the included ELSA CD which contain modifications and advice.
  • Page 30 The current versions of our software are available for download on our Internet server http://www.elsa.com and in our dial-up web site, ELSA LocalWeb . You can also find answers to "frequently asked questions" (FAQs) and a wealth of tips and tricks.

  • Page 31: Appendix

    Setting the D channel protocol $IEAZ Setting the terminal selection digit (EAZ) $IMSN Call answering from multiple subscriber numbers (MSN) $INCB block dial numbers $ISCI Service characteristics for incoming analog calls ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
  • Page 32 Sets the bit n to the value m (m = 0 to 7; m = 0 to 1) AT.m? Reads the value of bit m ATSn.m=x Sets bit m in S register n to value x (m = 0 to 7; x = 0 to 1) ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
  • Page 33 Appendix: Brief Overview of the AT Command Set Command Description Query of the value range of a command ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 34: Status Display And Troubleshooting

    Green and yellow LEDs on the front panel of the ISDN terminal adapter serve as the status display of the ISDN connection. Green LED The green LED shows the status of your ISDN line and the connection to the exchange. ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
  • Page 35 ISDN terminal adapter clear to send (see also commands AT\D and AT\Q) DCD (M5) Connection established (see also command AT&C) LED lights up red for insecure or fax connections LED lights up green for secure connections ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 36: Technical Specifications

    LED in various colors for the monitoring of the ISDN line and connection status, V.24 display CE conformity: Yes; tested in accordance with EN 50082/Part 1, EN 55022, Class B, EN 60950 Permits: Germany, BAPT D131655J Switzerland, BAKOM 97.0687.I.N ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 37: Rj11 Pin Assignments

    Euro-ISDN in all EU countries with the exception of Germany and France. ISDN terminal equipment to be used in these countries must have an additional national approval certificate for a transitional period. ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 38: Declaration Of Conformity

    This declaration has been made on behalf of the manufacturer / importer ELSA GmbH Sonnenweg 11 D-52070 Aachen GERMANY Peter Padar Quality management mandatary Aachen, 12 June 1997 by order, Peter Padar Quality management mandatary ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...

  • Page 39: D Glossary

    ® received data and transmitting stored data. All ELSA MicroLink products supporting the → AT command set are shipped with the communications program Telix . ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
  • Page 40 (e.g. Telix, Telemate, Frontdoor or Binkly). This → ITU-T standard describes layer 1 of the user/network interface of an ISDN → I.430 Basic Rate Interface. → V.110 I.463 ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
  • Page 41 T.70NL is a data packet header used in the transmission standard → X.75. The T.70NL T.70NL header must be enabled or disabled on both ends of the transmission. → Terminal adapter ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
  • Page 42 If an error has been detected, the defective block is requested once more and transmitted again. The → communications software Telix (supplied with every ELSA MicroLink ® product that uses the AT command set), supports many common transmission...

  • Page 43: E Warranty Conditions

    Appendix: Warranty Conditions Warranty Conditions This warranty is given to purchasers of ELSA products in addition to the warranty conditions provided by law and in accordance with the following conditions: 1. Warranty coverage a) The warranty covers the equipment delivered and all its parts. Parts will be replaced free of charge if, despite proven proper handling and adherence to the operating instructions, these parts became defective due to fabrication and material defects.
  • Page 44 Appendix: Warranty Conditions f) if, in the case of an ELSA Monitor, damage to the cathode ray tube (CRT) has been caused by mechanical load (e.g. from shock to the pitch mask assembly or damage to the glass tube), by strong magnetic fields near the CRT (colored dots on the screen), or through the permanent display of an unchanging image (phosphor burnt).

  • Page 45: Index

    Euro-ISDN............37 Terminal Endpoint Identifier .......39 Executing AT commands ........21 Terminal program ..........36 Fax............. 10, 27 T-Online ............25 Firmware ............ 22, 37 Transfer mode ...........21 Flash ROM technology ........7 Transfer rate............37 ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
  • Page 46 Anhang: Index TransferMaster ..........13 Transmission protocol ........39 Transmission rate ..........37 Upload .............24 V.110 ...............39 V.120 ............5, 39 V.24/V.28 interface lines........31 V.42bis.............39 WWW..............27 X.75 .............5, 39 ELSA TanGo 1000 Operating Manual © 1997 ELSA GmbH...
