Operating Manual
(English)

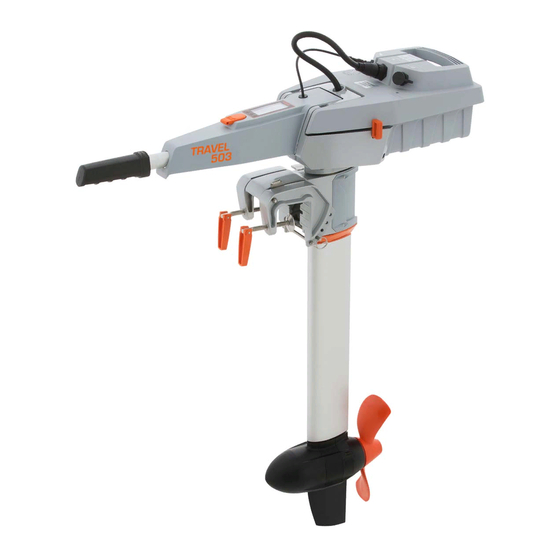

Long tiller arm for Travel 503/1003
(Item No. 1919-00)
Delivery scope:
- long tiller arm with connecting pin and diametral magnet
- Tiller handle
- Mounting instruction
- Packaging
- Warranty certificate

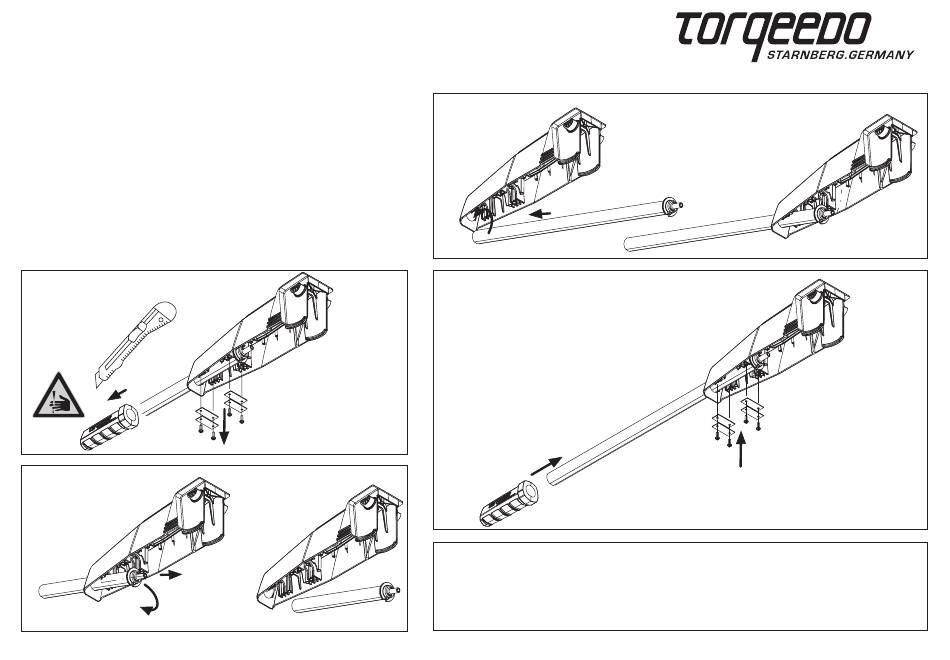

Disassembly
1.
1.
2.
2.
1.
039-00034 Version 2.0
Assembly
2.
3.
4.
5.
• Re-calibrate: Press "cal" button for 10 seconds.
• The display shows "cal up": Press tiller forward to full gas then press the "cal" button.
• The display shows "cal stp": Return tiller to central position then press the "cal" button.
• The display shows "cal dn": Press tiller backward to full gas then press the "cal" button.
