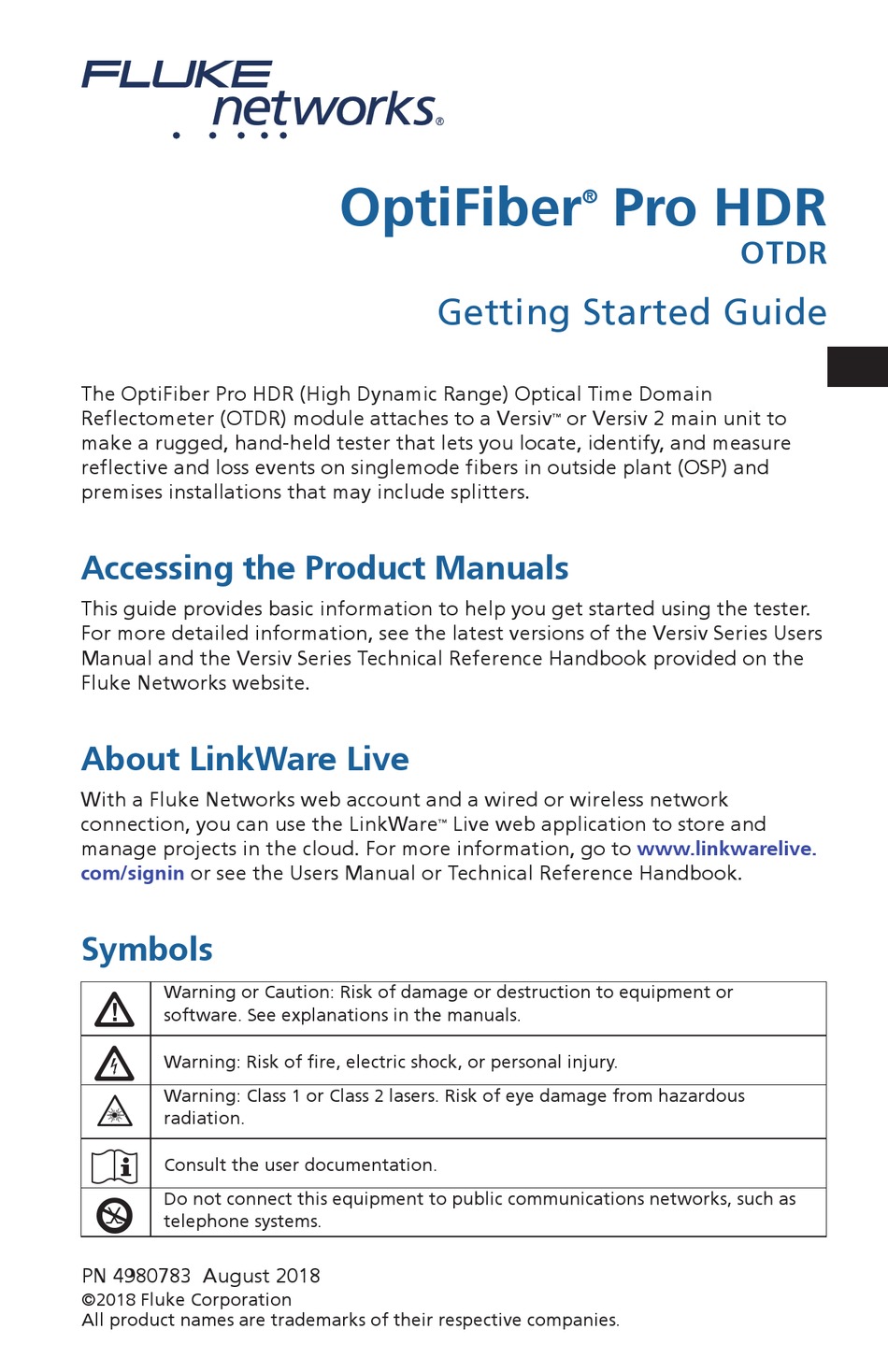

The OptiFiber Pro HDR (High Dynamic Range) Optical Time Domain
Reflectometer (OTDR) module attaches to a Versiv
make a rugged, hand-held tester that lets you locate, identify, and measure
reflective and loss events on singlemode fibers in outside plant (OSP) and
premises installations that may include splitters.
Accessing the Product Manuals
This guide provides basic information to help you get started using the tester.
For more detailed information, see the latest versions of the Versiv Series Users
Manual and the Versiv Series Technical Reference Handbook provided on the
Fluke Networks website.
About LinkWare Live
With a Fluke Networks web account and a wired or wireless network
connection, you can use the LinkWare
manage projects in the cloud. For more information, go to
com/signin
or see the Users Manual or Technical Reference Handbook.
Symbols
Warning or Caution: Risk of damage or destruction to equipment or
W
software. See explanations in the manuals.
X
Warning: Risk of fire, electric shock, or personal injury.
Warning: Class 1 or Class 2 lasers. Risk of eye damage from hazardous
*
radiation.
»
Consult the user documentation.
Do not connect this equipment to public communications networks, such as
j
telephone systems.
PN 4980783 August 2018
©2018 Fluke Corporation
All product names are trademarks of their respective companies.
OptiFiber
Getting Started Guide
Live web application to store and
™
Pro HDR
®
or Versiv 2 main unit to
™
www.linkwarelive.
OTDR
