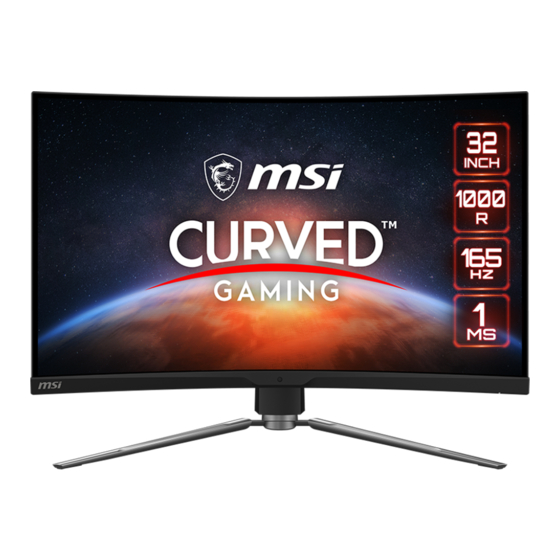

- Page 1 ARTYMIS Series LCD Monitor MPG ARTYMIS 323CQR (3DB1) MAG ARTYMIS 324CP (3DB3) User Guide...
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 5 Monitor Overview ....................6 Connecting the Monitor to PC ................9 OSD Setup ........................10 Navi Key ........................ 10 Hot Key ........................10 OSD Menus........................ -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents MPG ARTYMIS 323CQR Monitor MAG ARTYMIS 324CP Quick Start Guide Documentation Registration Card... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the latches of the stand to the monitor. Tighten the stand with screws. 2. Connect the stand base to the stand and tighten the screw to secure the stand base. -
Page 5: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment capabilities. ⚠ Important Avoid touching the display panel when adjusting the monitor. 100mm Getting Started... -
Page 6: Monitor Overview
Monitor Overview MPG ARTYMIS 323CQR MAG ARTYMIS 324CP Getting Started... - Page 7 MPG ARTYMIS 323CQR MAG ARTYMIS 324CP Getting Started...
- Page 8 Light Sensor (MPG ARTYMIS 323CQR) Microphone (MPG ARTYMIS 323CQR) Headset Hanger Macro Key To activate Gaming OSD Application. Navi Key Power Button Cable Routing Hole Kensington Lock Power Jack DisplayPort HDMI Port USB Type-C Port This port supports DisplayPort Alternate (DP Alt) Mode and up to 5V/3A power delivery.
-
Page 9: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Connect the power cord to the monitor power jack. (Figure A) 4. Plug the power cord into the electrical outlet. (Figure B) 5. -
Page 10: Osd Setup
OSD Setup This chapter provides you with essential information on OSD Setup. ⚠ Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/Down/Left/Right: ∙... -
Page 11: Osd Menus
OSD Menus MPG ARTYMIS 323CQR MAG ARTYMIS 324CP ⚠ Important When receiving HDR signals, Night Vision, MPRT, Low Blue Light, HDCR, Brightness, Contrast, Color Temperature, Auto Brightness Control and Ambient RGB Light will be grayed out. OSD Menus... -
Page 12: Mpg Artymis 323Cqr)
G.I. (MPG ARTYMIS 323CQR) 1st Level Menu 2nd Level Menu Description Auto ∙ Through the internal Light Sensor Brightness and AI (Artificial Intelligence) Auto Control algorithm, this function detects the ambient light and Customize automatically sets the monitor to optimal brightness for users. ∙... -
Page 13: Gaming
Smart Icon None ∙ Through AI algorithm, this Crosshair function enhances the visibility of in-game crosshair. ∙ Users can select the color and position of the crosshair. Color White Auto Position Reset Gaming 1st Level Menu 2nd/3rd Level Menu Description Game Mode User ∙... - Page 14 1st Level Menu 2nd/3rd Level Menu Description MPRT ∙ When MPRT is enabled, Brightness cannot be enabled and will be grayed out. ∙ Response time will be grayed out while MPRT is enabled. ∙ MPRT is available when the refresh rate is over 85Hz.
- Page 15 1st Level Menu 2nd/3rd Level Menu Description Auto ∙ Auto allows the monitor to automatically switch between USB (MAG ARTYMIS Upstream input sources, such as keyboards, 324CP) mice or other USB devices. Type-C ∙ Users can also designate Upstream port or USB Type-C as the only USB signal source.
-
Page 16: Professional
Professional 1st Level Menu 2nd Level Menu Description Pro Mode User ∙ Use Up or Down Button to select and preview mode effects. Anti-Blue ∙ Press the OK Button to confirm and apply your mode type. Movie Office sRGB Low Blue Light ∙... -
Page 17: Image
Image 1st Level Menu 2nd/3rd Level Menu Description Brightness 0-100 ∙ Properly adjust Brightness according to the surrounding lighting. ∙ Brightness will be grayed out when MPRT or HDCR are enabled. Contrast 0-100 ∙ Properly adjust Contrast to relax your eyes. Sharpness ∙... -
Page 18: Navi Key
Navi Key 1st Level Menu 2nd Level Menu Description Up / Down / Left ∙ All Navi Key items can be adjusted via / Right OSD Menus. Brightness Game Mode Smart Crosshair Alarm Clock Input Source Refresh Rate Info. On Screen Night Vision Setting 1st Level Menu... - Page 19 1st Level Menu 2nd Level Menu Description Transparency ∙ Users can adjust Transparency in any mode. OSD Time Out 5~30s ∙ Users can adjust OSD Time Out in any mode. RGB LED ∙ Users can adjust RGB LED to ON or OFF. (MPG ARTYMIS 323CQR) Power Button...
-
Page 20: Specifications
Specifications Monitor MPG ARTYMIS 323CQR MAG ARTYMIS 324CP Size 31.5 inch Curvature 1000R Panel Type Resolution 2560 x 1440 @165Hz 1920 x 1080 @165Hz 16:9 Aspect Ratio Brightness (nits) Contrast Ratio 2500:1 3000:1 Refresh Rate 165Hz Response Time 4ms(GTG) MPRT ∙... - Page 21 Monitor MPG ARTYMIS 323CQR MAG ARTYMIS 324CP Adjustment (Tilt) -5° ~ 20° Adjustment (Height) 0 ~ 100mm -30° ~ 30° Adjustment (Swivel) Kensington Lock ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm VESA Mounting •...
-
Page 22: Preset Display Modes
Preset Display Modes MAG ARTYMIS 324CP Standard Resolution HDMI DP/ Type-C 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD 1920x1080... - Page 23 MPG ARTYMIS 323CQR Standard Resolution HDMI DP/ Type-C 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD 1920x1080 @60Hz @120Hz...
-
Page 24: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 25: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 26 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 27: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 28: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 29 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 30 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
