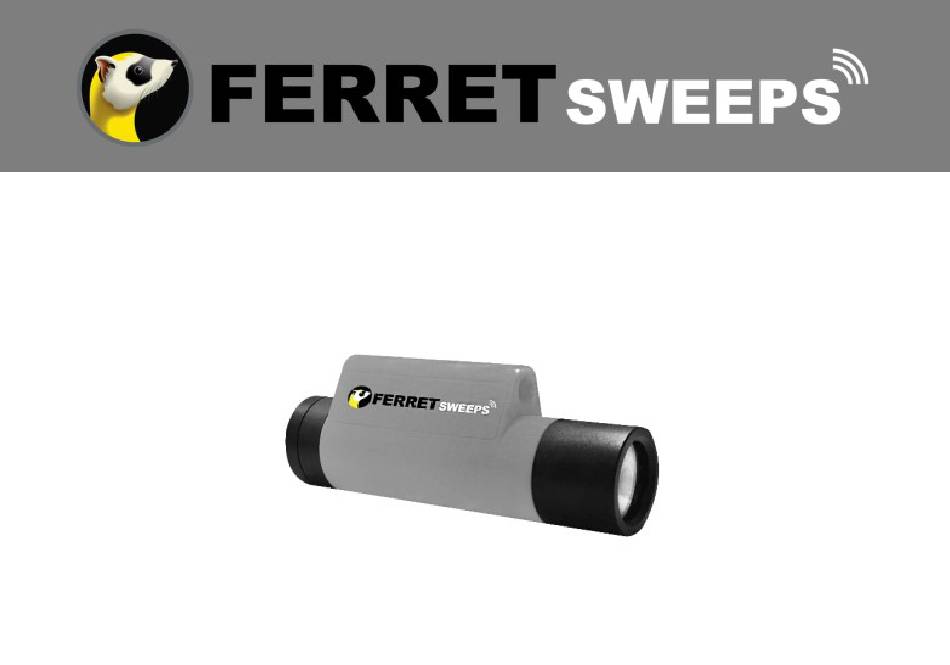

- Page 1 Multipurpose Wireless Inspection Camera Quick Start Guide and FAQs Smart Tool. Smart Choice.
- Page 2 FERRET Sweeps CFWF50S Version 1.07 © 2020 Patent Pending in the USA The Cable Ferret Company Limited The Cable Ferret Company Pty Ltd Cable Ferret, Inc. Designed in New Zealand Made in China www.cableferret.com...
- Page 3 Welcome to the Ferret community and thank you for choosing a Ferret Sweeps camera. We are confident it will provide you with faster, easier and safer close up visual inspections. Your Ferret Sweeps CFWF50S is an IP67 rated compact wireless rechargeable inspection camera designed to help you see and work in dark hard to reach locations.
- Page 4 The Ferret Sweeps Include...
- Page 6 Features of your Ferret Sweeps Front View Rear View Connect to a rod Screw in Ferret or pole and/or accessories gooseneck Adjustable USB-C Charging bright white Socket LEDs (4) Power Switch Camera Lens Power / Charging Indication LED...
- Page 7 Start Using Your Ferret Sweeps Step 1: Download the Free Ferret App Scan the QR Code below or search for “Ferret WiFi” iOS V8 or later Android V6 or later recommended recommended NOTE: During installation or first use of the app you must give access to the...
- Page 8 Step 2: Connect to your Ferret Sweeps Turn on your Ferret camera. The camera power switch is at the back of the camera under the back cap. The camera will take about 2 seconds to boot and power on. NOTE: The camera is IP67 rated only when the back cap is in place.
-
Page 9: Digital Zoom
Digital Zoom Use 2 fingers to use the digital zoom to bring your image closer. - Page 10 LED Brightness Adjustment For the latest Ferret Sweeps models, LED brightness can be adjusted in 2 ways: 1. Tap the button to change brightness to one of 3 settings: OFF-NORMAL-FULL 2. Press and hold the button. A slider appears below the button which you can slide up or down to adjust LED brightness.
- Page 11 Manual Focus allows you to adjust the focus with a slider from a focal length of 1.5" (3cm) for detailed close-up viewing. Manual Focus Slider Brightness Slider NOTE: The LED and Manual Focus slider features are available with all Ferret Sweeps models and later Ferret WiFi models.
-
Page 12: Settings Screen
/ default setting is Auto). • Select JPG or PNG picture format (Android devices only). If a firmware update for your Ferret Sweeps is available, the “Firmware Update” button will appear on the bottom left of the Settings screen. - Page 13 Settings Screen Main Screen With Left Hand Side Buttons Enabled...
- Page 14 FAQs General • I can’t connect or see the camera when I search on Bluetooth? The Ferret Sweeps has a built in WiFi hotspot. No other network is needed, and the camera does not connect via Bluetooth. • The camera is not turning on immediately. Is it OK? The camera takes about 2 seconds to boot and power on.
- Page 15 WiFi signal. • What is the WiFi range of the Ferret Sweeps camera? The WiFi range is about 12m (40ft) with line of sight between your phone and Ferret. This can be extended by using a Ferret Repeater.
- Page 16 When I try to download the App it asks for a password - why? The Ferret App is free – it will never ask for a password or a code. Your phone sometimes will ask for a password due to your App Store not having a payment method.
-
Page 17: Warranty
Warranty Your FERRET comes with a 12-month replacement warranty. In the unlikely event that your FERRET develops a fault within 12 months of purchase, please email support@cableferret.com, or simply return it your place of purchase with proof of purchase. Failure due to physical damage, misuse, neglect, improper use or moisture is not covered. - Page 18 Caution: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
