LM Technologies Ltd
Quick Start Guide
LM048 and LM058 Bluetooth Serial
Adapters

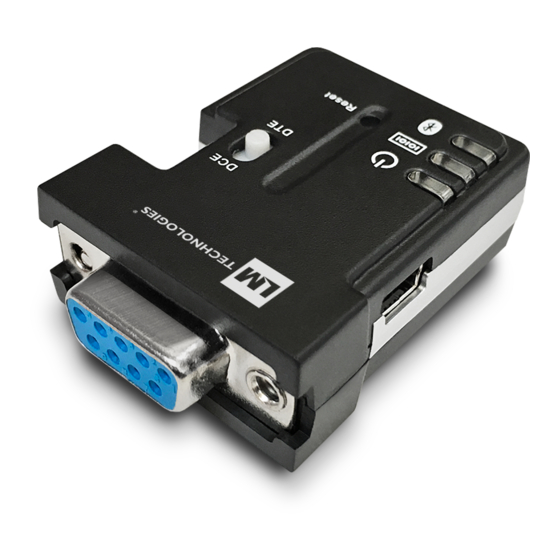

LM048
LM058
1 Package Contents
Single Retail Pack
1x Bluetooth Serial Adapter
1 x DB9 male to female connector
1 x USB – mini USB cable for power
1 x User Manual
1 x Warranty Card
1 x All in One PSU (UK, EU, US)
1 x 2dBi Antenna (LM058 only)
1 x CD with LM149 Configuration
Software
Optional:
1 x LM025 Slim Line 9 pin to 25 pin
converter
2 Setup
1. Connect LM048/LM058 to the serial port of the PC/Laptop. If the
PC or Laptop does not have serial port, a USB to Serial Converter
can be used.
2. Power the LM048/LM058 via the mini USB port using the mains
power supply or USB port of the PC. The connection to PC is
shown in diagram below
Twin Retail Pack
1x Bluetooth Serial Adapter
1 x DB9 male to female connector
1 x USB – mini USB cable for power
1 x User Manual
1 x Warranty Card
2 x All in One PSU (UK, EU, US)
2 x 2dBi Antenna (LM058 only)
1 x CD with LM149 Configuration
Software
Optional:
1 x LM025 Slim Line 9 pin to 25 pin
converter
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LM Technologies LM048
Summary of Contents for LM Technologies LM048
- Page 1 2 Setup 1. Connect LM048/LM058 to the serial port of the PC/Laptop. If the PC or Laptop does not have serial port, a USB to Serial Converter can be used. 2. Power the LM048/LM058 via the mini USB port using the mains power supply or USB port of the PC.
- Page 2 Serial Port Settings and press “Read Settings”. The default serial change the settings on the window and press “Save Settings”. This settings on LM048 and LM058 are 19200 8 N 1 Flow: None. will save the modified settings to the adapter.
- Page 3 LM048/LM058 Quick Start Guide v1.3 3 Cannot communicate with the adapter? Serial Device/Cable Adapter Slide Switch Position Type If for some reason, the communication with the adapter cannot be established, the LM149 software will give error “Initialization failed” as Straight...
- Page 4 3. A window will pop up to connect the 1 adapter back to the COM A pair of LM048 or LM058 adapters can be configured to connect to each port. Connect the 1 adapter back and press OK. The Device1 and other automatically when powered ON.
-
Page 5: Application Setup
“pairing completed successfully” message will pop up. technologies.com 5 Application Setup A pair of LM048 or LM058 adapters can be used as serial cable replacement solution. However these adapters can also be used with a Bluetooth enabled PC, Laptop, Smartphone, PDA or Tablet. - Page 6 MFI chip is required on any accessory communicating does not provide power on Pin 9, then an external power supply with Apple devices. LM048/LM058 does not include the MFI chip at the may be required. moment. For further information on the roadmap to support Apple 7.
-
Page 7: Fcc Warning Statement
LM048/LM058 Quick Start Guide v1.3 6 FCC Warning Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including... -
Page 8: Revision History
