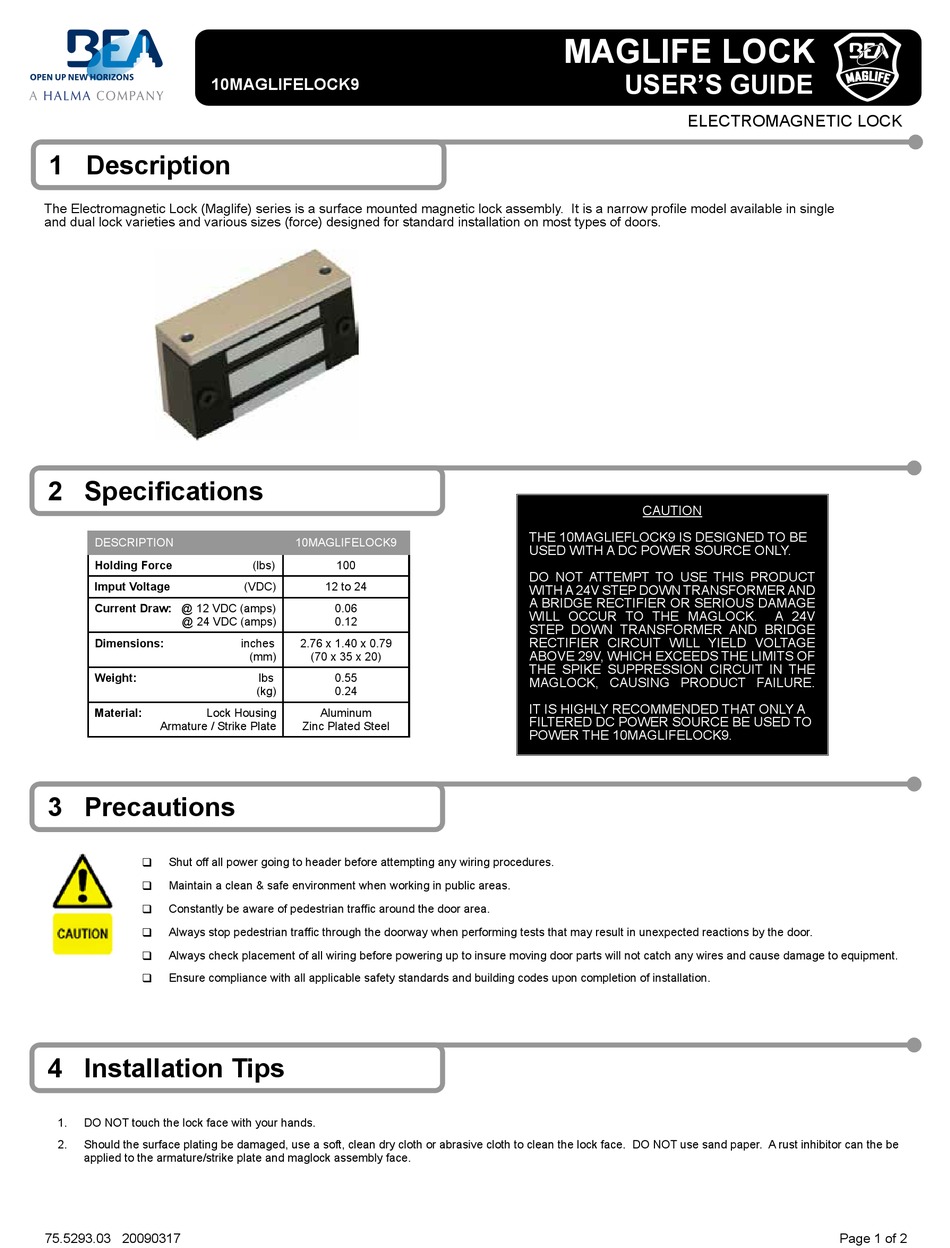

Halma BEA 10MAGLIFELOCK9 User Manual

10MAGLIFELOCK9
1 Description
The Electromagnetic Lock (Maglife) series is a surface mounted magnetic lock assembly. It is a narrow profile model available in single
and dual lock varieties and various sizes (force) designed for standard installation on most types of doors.
2 Specifications
DESCRIPTION
Holding Force
Imput Voltage
Current Draw: @ 12 VDC (amps)
@ 24 VDC (amps)
Dimensions:
Weight:
Material: Lock Housing
Armature / Strike Plate
3 Precautions
Shut off all power going to header before attempting any wiring procedures.

Maintain a clean & safe environment when working in public areas.

Constantly be aware of pedestrian traffic around the door area.

Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door.

Always check placement of all wiring before powering up to insure moving door parts will not catch any wires and cause damage to equipment.

Ensure compliance with all applicable safety standards and building codes upon completion of installation.

4 Installation Tips
1. DO NOT touch the lock face with your hands.
2. Should the surface plating be damaged, use a soft, clean dry cloth or abrasive cloth to clean the lock face. DO NOT use sand paper. A rust inhibitor can the be
applied to the armature/strike plate and maglock assembly face.
75.5293.03 20090317
10MAGLIFELOCK9
(lbs) 100
(VDC) 12 to 24
0.06
0.12
inches 2.76 x 1.40 x 0.79
(mm) (70 x 35 x 20)
lbs 0.55
(kg) 0.24
Aluminum
Zinc Plated Steel
MAGLIFE LOCK
USER'S GUIDE
ELECTROMAGNETIC LOCK
CAUTION
THE 10MAGLIEFLOCK9 IS DESIGNED TO BE
USED WITH A DC POWER SOURCE ONLY.
DO NOT ATTEMPT TO USE THIS PRODUCT
WITH A 24V STEP DOWN TRANSFORMER AND
A BRIDGE RECTIFIER OR SERIOUS DAMAGE
WILL OCCUR TO THE MAGLOCK.
STEP DOWN TRANSFORMER AND BRIDGE
RECTIFIER CIRCUIT WILL YIELD VOLTAGE
ABOVE 29V, WHICH EXCEEDS THE LIMITS OF
THE SPIKE SUPPRESSION CIRCUIT IN THE
MAGLOCK, CAUSING PRODUCT FAILURE.
IT IS HIGHLY RECOMMENDED THAT ONLY A
FILTERED DC POWER SOURCE BE USED TO
POWER THE 10MAGLIFELOCK9.
A 24V
