  • Page 1 Operator’s Manual Chart Projector...
  • Page 2 HUVITZ reserves the right to make changes in its products or product specifications at any time and without prior notice, and is not required to update this documentation to reflect such changes.

  • Page 3: Table Of Contents

    -------------------------------------------------------------------- HCP-7000 Opreator’s Manual CONTENTS Introduction ....................... 5 1.1. Outline of product ....................5 1.2. Classifications ....................5 1.3. Standards ......................5 1.4. EMC Information ....................6 2. Safety Information ....................... 10 Introduction ...................... 10 Safety Symbols....................11 Environmental factors ..................14 Safety Precautions ..................
  • Page 4 HCP-7000 Operator’s Manual ----------------------------------------------------------------------- How to input user's program ................25 How to use your stored programs..............26 Types of Chart (Type C is Standard) ..............27 Maintenance and Repair ..................28 Fuse Replacement ................... 28 Remote Control batteries Replacement ............29 Cleansing ......................

  • Page 5: Introduction

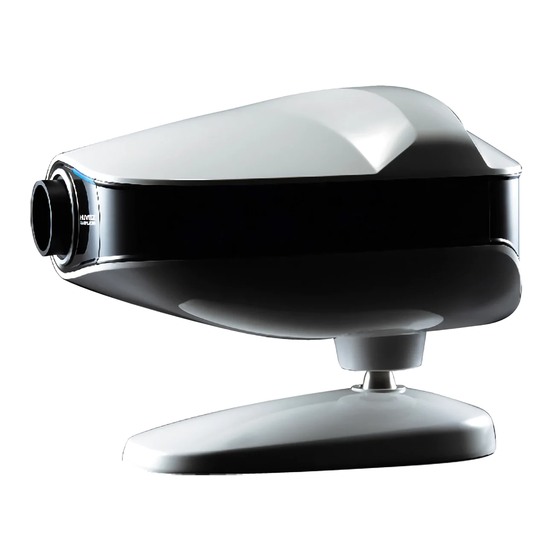

    Introduction 1.1 Outline of product HUVITZ HCP-7000 is an automatic chart projector which provides 41 different charts including red/green and polarized filters for the eye optometry. Users can select the desired charts instantaneously by cordless remote controller. Charts move quickly and quietly.

  • Page 6: Emc Information

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- 1.4 EMC Information...
  • Page 7 -------------------------------------------------------------------- HCP-7000 Opreator’s Manual...
  • Page 8 HCP-7000 Operator’s Manual -----------------------------------------------------------------------...
  • Page 9 -------------------------------------------------------------------- HCP-7000 Opreator’s Manual...

  • Page 10: Safety Information

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- 2. Safety Information 2.1 Introduction Safety is everyone’s responsibility. The safe use of this equipment is largely dependent upon the installer, user, operator, and maintainer. It is imperative that personnel study and become familiar with this entire manual before attempting to install, use, clean, service or adjust this equipment and any associated accessories.

  • Page 11: Safety Symbols

    -------------------------------------------------------------------- HCP-7000 Opreator’s Manual 2.2 Safety Symbols The International Electrotechnical Commission (IEC) has established a set of symbols for medical electronic equipment, which classify a connection or warn of any potential hazards. The classifications and symbols are shown below. I and O on power switch represent ON and OFF respectively.
  • Page 12 HCP-7000 Operator’s Manual ----------------------------------------------------------------------- Direct Current (Courant continu) Temperature Limitation (Limitation de température) Keep DRY (Garder au sec) WEEE mark Dispose of Electrical and Electronic Equipment Correctly (Marque WEEE) (Éliminer les équipements électriques et électroniques Correctement) CE Mark (Marque CE)
  • Page 13 -------------------------------------------------------------------- HCP-7000 Opreator’s Manual Atmospheric pressure limitation (Limitation de pression atmosphérique) Humidity limitation (Limite d'humidité) Stack direction (Direction de la pile) Fragile , handle with care (Fragile, manipuler avec soin) Keep away from sunlight (Tenir à l'écart de la lumière du soleil)

  • Page 14: Environmental Factors

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- Serial Number Symbol (Symbole du numéro de série) 2.3 Environmental factors Avoid the following environments for operation or storage: Where the equipment is exposed to water vapor. Don’t operate an equipment with a wet hand. Where the equipment is exposed to direct sunlight.
  • Page 15 -------------------------------------------------------------------- HCP-7000 Opreator’s Manual Where equipment is exposed to chemical material or explosive gas. Be careful not to be inserted dust, especially, metal This instrument can withstand the following conditions: 1. Operation - An ambient temperature range of 50°F ~ 104°F (10℃ ~ 40℃)

  • Page 16: Safety Precautions

    Customer maintenance of this equipment may only be performed as stated in the User’s Manual. Any additional maintenance may only be performed by HUVITZ service technicians or other authorized persons. The manufacturer is only responsible for effects on safety, reliability,...
  • Page 17 -------------------------------------------------------------------- HCP-7000 Opreator’s Manual authorized to install, use, operate, and maintain this equipment. Keep the User’s Manual in a place easily accessible at all times for persons operating and maintaining the equipment. Please do not pull on any cable. Always hold on to the plug when disconnecting cables.

  • Page 18: Features

    Aniseikonia tests. 34 Masks (vertical line, horizontal line, and single character) 2.5 ~ 8 m (8 ~ 26 feet) projection range Cordless Remote Control User Programmable (2 programs up to 30 charts each) Easily networked with HUVITZ’s Digital Refractor...

  • Page 19: Notes For Using The Instrument

    Don’t use organic solution such as alcohol, thinner, benzene, etc. to clean the surface of this instrument. It may damage the instrument. When moving the HCP-7000, always make sure the power supply is off, and then lift the bottom of the unit with both hands.

  • Page 20: Configurations

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- 5. Configurations 5.1 Main Body The HCP-7000 Chart Projector is mainly composed of the body, stand, screen and remote control. [Fig. 1 Front View with Remote Control] 1. Projection lens 2. IR receiving window 3. Stand (table mount)

  • Page 21: Main Body Cont

    -------------------------------------------------------------------- HCP-7000 Opreator’s Manual 5.2 Main Body cont. [Fig. 2 Bottom View] [Fig. 3 Rear View] 1. Power On/Off Switch 2. Power ON/OFF LED 3. Tilting Adjustment 4. CAN (Controller Area Network 5. RS-232 Comm.Port 6. AC Power Inlet 7. Fuse Holder...

  • Page 22: Accessories

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- 5.3 Accessories [Fig.4 Accessories] 1. Table stand 2. Remote contol 3. Screen 4.Wrench (4mm) 5. Fuse(250v 3.15A) 6. Batteries(2 size AA) 7. Power cable 8. Operator manual 9. Dust Cover 10. Screw(3*10)

  • Page 23: Installation

    -------------------------------------------------------------------- HCP-7000 Opreator’s Manual 6. Installation 6.1 Position of Chart Projector The single tube projector must be installed at the same distance from the screen as the patient. [Fig. 6 Installation without mirrors] Install chart projector at desired position within 2.5~8m (8~26 feet).

  • Page 24: How To Obtain Correct Letter Size And Focus (Zooming Type Only)

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- 6.2 How to obtain correct Letter Size and focus (Zooming Type only) Install chart projector at desired position of 2.5~8m (8~26 feet) Measure the distance from patient to screen Refer to the test scale shown in the Appendix A Have someone hold the test scale at the screen Project the 20/400(6/120, 0.05) alphabet “C”...

  • Page 25: Input And Use Of Program

    -------------------------------------------------------------------- HCP-7000 Opreator’s Manual Input and Use of Program 7.1 How to input user's program Press the “LIGHT” button once. Step 1. Results: The light goes out. Press the “PGM 1” button three times. Step 2. Results: The light will come on and the chart projector will display the first chart of the default program.

  • Page 26: How To Use Your Stored Programs

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- 7.2 How to use your stored programs. Press “ PGM 1 ” or “PGM 2” to select the program of your choice. Step 1. Use the “Program▶” or “Program ◀” to scroll through your stored Step 2.

  • Page 27: Types Of Chart (Type C Is Standard)

    -------------------------------------------------------------------- HCP-7000 Opreator’s Manual Types of Chart (Type C is Standard) [Fig. 7 Types of Chart]...

  • Page 28: Maintenance And Repair

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- Maintenance and Repair 9.1 Fuse Replacement Turn off power, and disconnect the power cord. Pull out the plastic cover at the lower part of power socket, to replace the fuse. WARNING Do not touch the projector with wet hands. (Risk of electric shock)

  • Page 29: Remote Control Batteries Replacement

    -------------------------------------------------------------------- HCP-7000 Opreator’s Manual 9.2 Remote Control batteries Replacement 1. On the remote control battery cover to remove. 2. Battery replacement and remote control cover is mounting.. Battery(2) LR6(AA)1.5V 9.3 Cleansing 1. Product appearance and screen is dry and clean with a soft cloth.

  • Page 30: Disposal Information

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- 9.4 Disposal Information This product consists of devices that may contain mercury, which must be recycled or disposed of in accordance with local, state, or country laws (Within this system, the backlight lamps in the monitor display contain mercury). This equipment has required the extraction and use of natural resources for its production.

  • Page 31: Specifications

    -------------------------------------------------------------------- HCP-7000 Opreator’s Manual 10. Specifications 41charts -34 mask, Red/green& Polarization Charts Filters Distance of projection 2.5~8m(Optional: 8m screen) Chart Rotation Speed Average 0.15 sec Chart magnification 30X (When 5m distance) Power saving Automatic Lamp Off (10 min) Program 2 programs with a maximum of 30 charts each...

  • Page 32: Components List

    HCP-7000 Operator’s Manual ----------------------------------------------------------------------- 11. Components List 11.1 Standard accessories 1. Table stand 2. Remote contol 3. Screen 4.Wrench (4mm) 5. Fuse(250v 3.15A) 6. Batteries(2 size AA) 7. Power cable 8. Operator manual 9. Dust Cover 10. Screw(3*10)

  • Page 33: Service Information

    Dealer Phone No.: Model No.: Serial No.: If you can’t contact with your local distributor, you can directly get in touch with the service department of the HUVITZ using the phone number and the address written in the below table.
  • Page 34 HCP-7000 Operator’s Manual ----------------------------------------------------------------------- How to Contact HUVITZ Co., Ltd HUVITZ Co., Ltd. Tel: +82-31-428-9100 38, Burim-ro 170beon-gil, Dongan-gu, Fax: +82-31-477-9022(C/S) Anyang-si, Gyeonggi-do, 14055, http://www.huvitz.com Republic of Korea e-mail: svc@huvitz.com EU Representative Schiffgraben 41, 30175 Hannover, Germany Medical Device Safety Service GmbH...
  • Page 35 -------------------------------------------------------------------- HCP-7000 Opreator’s Manual ◼ Appendix A Test Scale Hold this test scale at the Screen, and according to the refracting distance from the patient’s eye to the screen such as 3m, 4m, 5m or 6m position the projector backward and forward to fit the projector Alphabet 400 chart “C” with this Scale...
  • Page 36 HCP-7000 Operator’s Manual -----------------------------------------------------------------------...
  • Page 37 -------------------------------------------------------------------- HCP-7000 Opreator’s Manual...
  • Page 38 HCP-7000 Operator’s Manual -----------------------------------------------------------------------...
