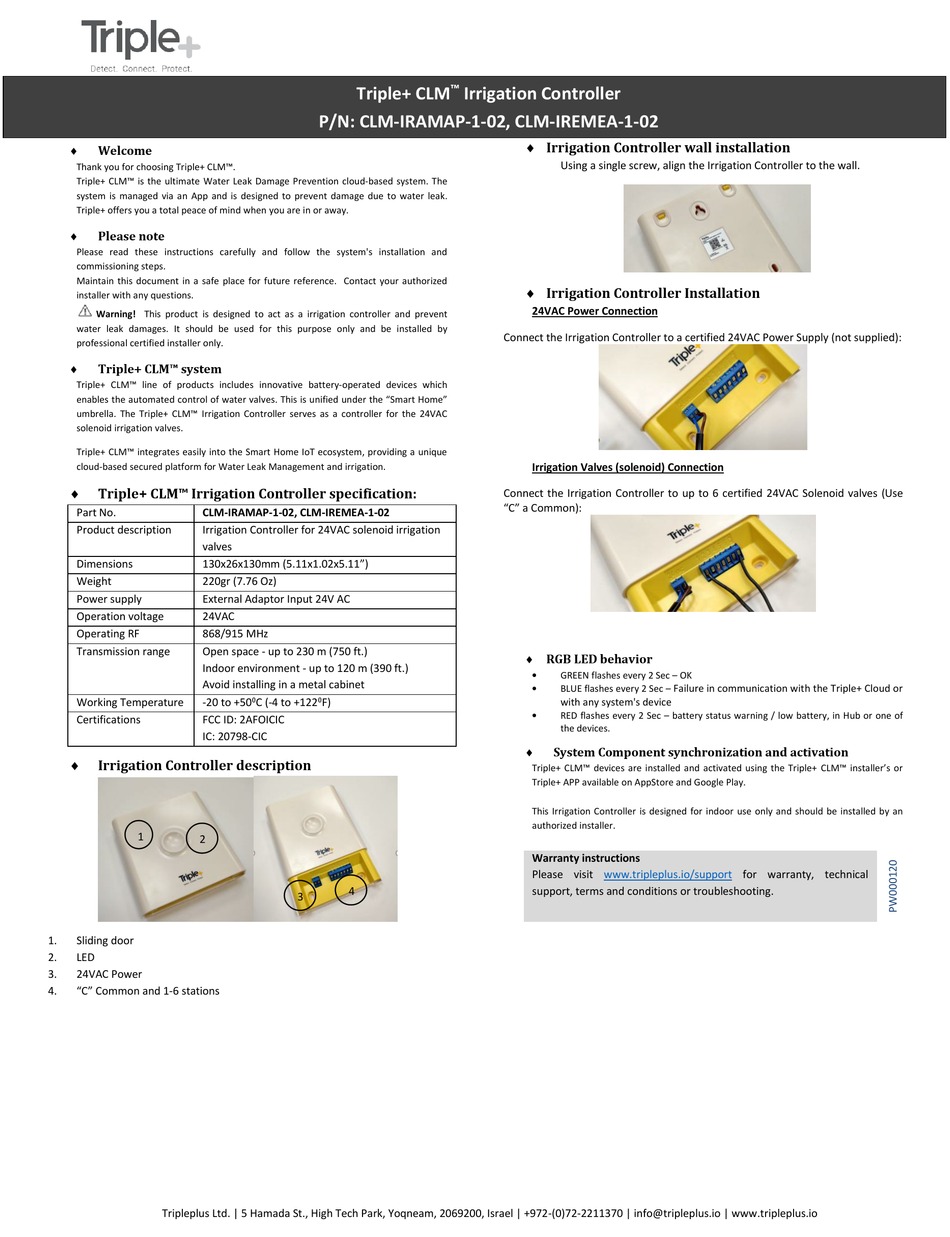

Triple Plus CLM-IRAMAP-1-02 Quick Start Manual



Welcome

Thank you for choosing Triple+ CLM™.
Triple+ CLM™ is the ultimate Water Leak Damage Prevention cloud-based system. The
system is managed via an App and is designed to prevent damage due to water leak.
Triple+ offers you a total peace of mind when you are in or away.


Please note

Please read these instructions carefully and follow the system's installation and
commissioning steps.
Maintain this document in a safe place for future reference. Contact your authorized
installer with any questions.
Warning! This product is designed to act as a irrigation controller and prevent
water leak damages. It should be used for this purpose only and be installed by
professional certified installer only.

Triple+ CLM™ system
Triple+ CLM™ line of products includes innovative battery-operated devices which
enables the automated control of water valves. This is unified under the "Smart Home"
umbrella. The Triple+ CLM™ Irrigation Controller serves as a controller for the 24VAC
solenoid irrigation valves.
Triple+ CLM™ integrates easily into the Smart Home IoT ecosystem, providing a unique
cloud-based secured platform for Water Leak Management and irrigation.

Triple+ CLM™ Irrigation Controller specification:
Part No. CLM-IRAMAP-1-02, CLM-IREMEA-1-02
Product description Irrigation Controller for 24VAC solenoid irrigation
valves
Dimensions 130x26x130mm (5.11x1.02x5.11")
Weight 220gr (7.76 Oz)
Power supply External Adaptor Input 24V AC
Operation voltage 24VAC
Operating RF 868/915 MHz
Transmission range Open space - up to 230 m (750 ft.)
Indoor environment - up to 120 m (390 ft.)
Avoid installing in a metal cabinet
Working Temperature -20 to +50
Certifications FCC ID: 2AFOICIC
IC: 20798-CIC


Irrigation Controller description

1
2
1. Sliding door
2. LED
3. 24VAC Power
4. "C" Common and 1-6 stations
Tripleplus Ltd. | 5 Hamada St., High Tech Park, Yoqneam, 2069200, Israel | +972-(0)72-2211370 | info@tripleplus.io | www.tripleplus.io
Triple+ CLM
P/N: CLM-IRAMAP-1-02, CLM-IREMEA-1-02
0 C (-4 to +122 0 F)
4
3
™
Irrigation Controller
 Irrigation Controller wall installation
Using a single screw, align the Irrigation Controller to the wall.
 Irrigation Controller Installation

24VAC Power Connection

Connect the Irrigation Controller to a certified 24VAC Power Supply (not supplied):

Irrigation Valves (solenoid) Connection

Connect the Irrigation Controller to up to 6 certified 24VAC Solenoid valves (Use
"C" a Common):
 RGB LED behavior

GREEN flashes every 2 Sec – OK

BLUE flashes every 2 Sec –
with any system's device

RED flashes every 2 Sec – battery status warning / low battery, in Hub or one of
the devices.


System Component synchronization and activation

Triple+ CLM™ devices are installed and activated using the Triple+ CLM™ installer's or
Triple+ APP available on AppStore and Google Play.
This Irrigation Controller is designed for indoor use only and should be installed by an
authorized installer.

Warranty instructions

Please visit www.tripleplus.io/support
support, terms and conditions or troubleshooting.
Failure in communication with the Triple+ Cloud or
for warranty, technical
