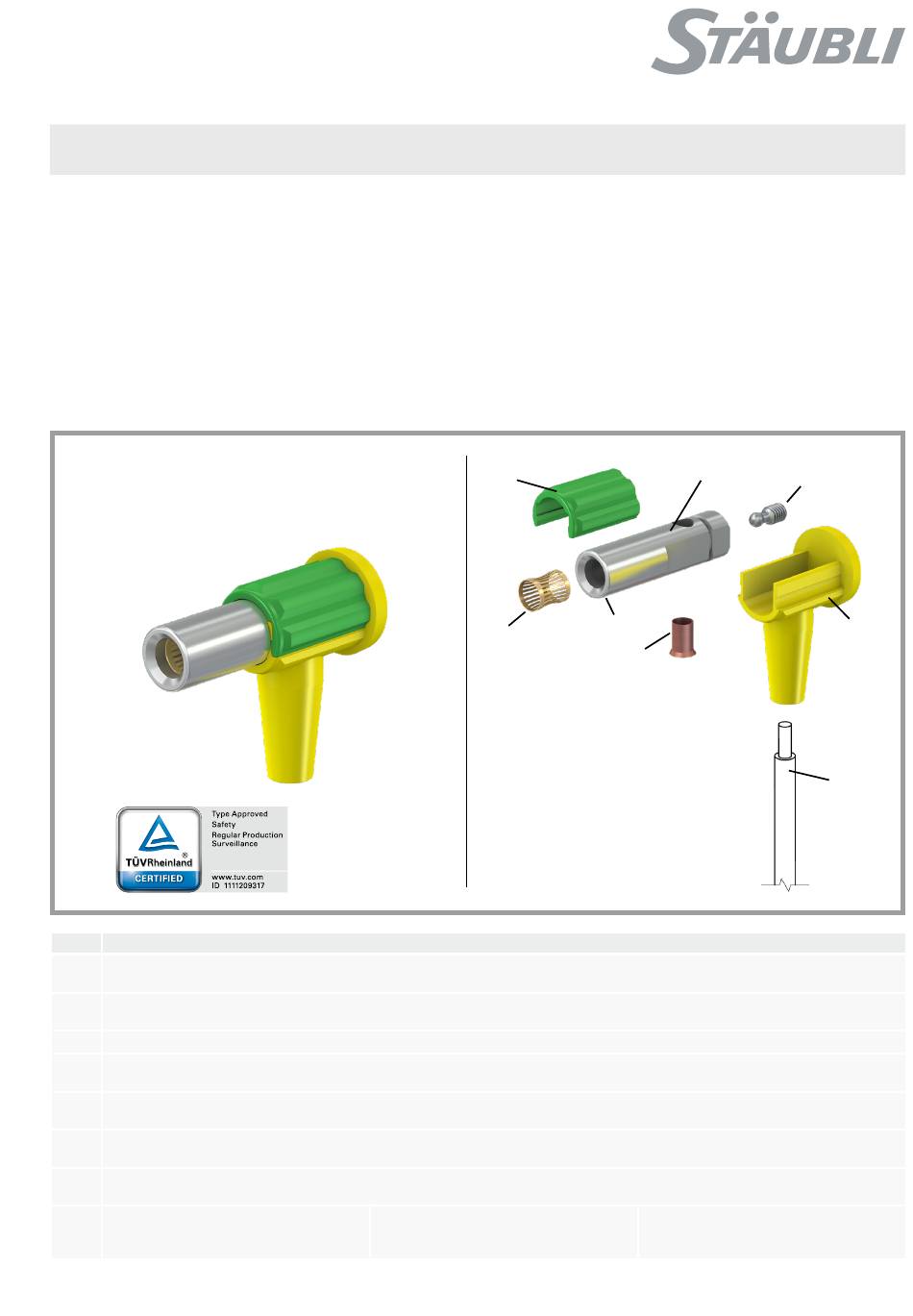

MA564 (de_en)
Montageanleitung

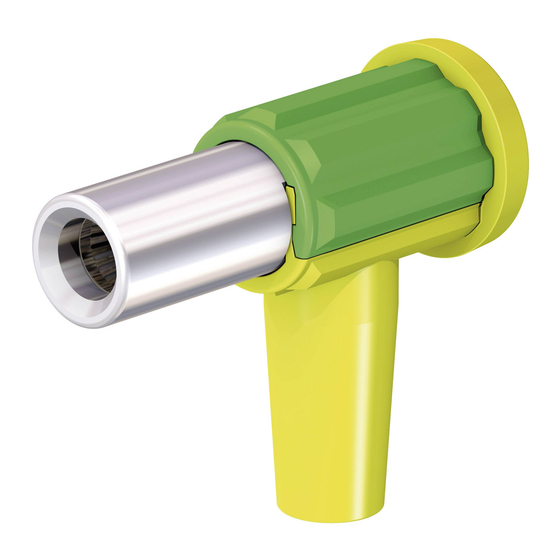

POAG-KBT6-EC/4
POAG-KBT6-EC/6
POAG-KBT6-EC/4-6
Inhalt
Sicherheitshinweise ���������������������������������������������������������������������2
Vorbereitung der Leitung ��������������������������������������������������������������3
Montage ��������������������������������������������������������������������������������������4
Pos.
Bezeichnung / Description
Buchse, werkseitig vormontiert
1
Socket, pre-assembled
Buchsenkörper
1a
Socket body
1b
MULTILAM
Madenschraube
1c
Grubscrew
Aderendhülse
1d
Lead end sleeve
Isolierungs-Oberteil
2
Upper part of insulator
Isolierungs-Unterteil
3
Lower part of insulator
Leitung (nicht mitgeliefert)
4
Lead (not supplied)
MA564 (de_en)
Assembly instructions
POAG-KBT6-EC/4
POAG-KBT6-EC/6
POAG-KBT6-EC/4-6
Content
Safety Instructions �����������������������������������������������������������������������2
Lead Preparation �������������������������������������������������������������������������3
Assembly �������������������������������������������������������������������������������������4
2
1b
Außen-Ø / Outer Ø
POAG-KBT6-EC/4: 4,8 mm
POAG-KBT6-EC/6: 6,0 mm
1
1a
1d
Leitungsquerschnitt / Lead cross section:
POAG-KBT6-EC/4: 4,0 mm²
POAG-KBT6-EC/6: 6,0 mm²
1c
3
4
1 / 4
