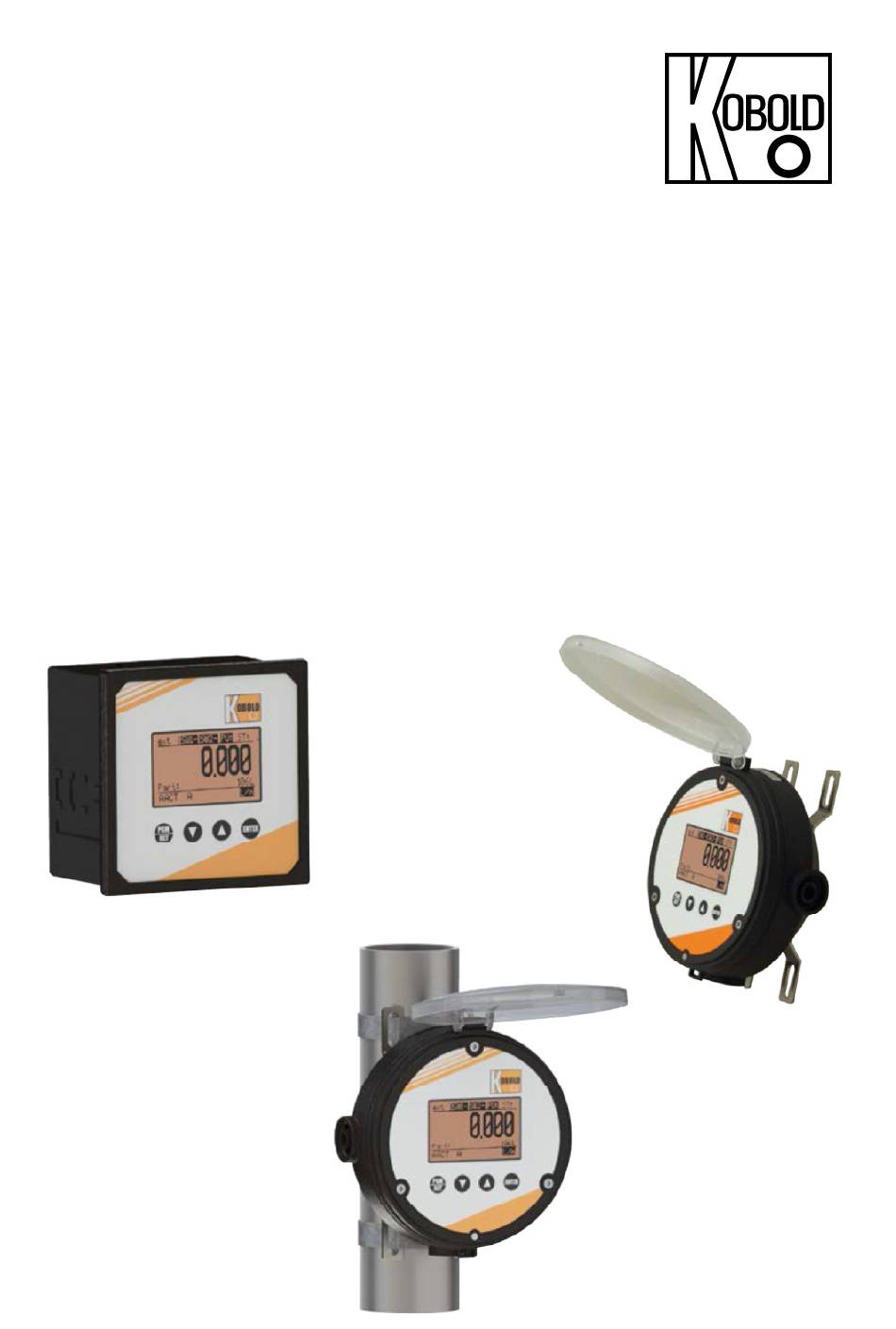

Kobold ZOK-ZxP Operating Manual

Flow-counter/-dosing unit/-controller
Hide thumbs Also See for ZOK-ZxP:

Advertisement

Quick Links

Operating Manual
for
Flow-Counter/-Dosing Unit/-Controller
Model:
ZOK-ZxP
ZOK-ExK/ZxK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZOK-ZxP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kobold ZOK-ZxP

  • Page 1 Operating Manual Flow-Counter/-Dosing Unit/-Controller Model: ZOK-ZxP ZOK-ExK/ZxK...
  • Page 2: Table Of Contents

    Ordering Details ..................49     Dimensions ....................50     Declaration of Conformance ............... 51     Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com Page 2 ZOK K03/1115...
  • Page 3: Note

    ZOK-E/-Z 2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &...
  • Page 4: Regulation Use

    (NEMA 4X). The electronics are housed in a UV-resistant, glass-filled nylon housing with stainless steel screws and FPM seals. The options ZOK-ZxP are in a panel mount housing 96x96 mm with protection class IP44. The instruments are suitable for harsh indoor or outdoor environments and comply with EU Directive 2004/108/EC (Electromagnetic Compatibility).
  • Page 5: Instrument / Functions Overview

    ZOK-E/-Z 6. Instrument / Functions overview Function Dual Counter Dosing function Controller function Certification ATEX Certification Power supply DC-Supply AC-Supply Battery operation 4-20 mA Loop Sensor supply (only with external power supply) 8 V/ 8 V/ 8 V/ Sensor supply 23 V 23 V 23 V...
  • Page 6: Electrical Connections

    ZOK-E/-Z 7. Electrical connections 7.1 Cable entry for housing option -K Up to 3 cable entries (M20x1.5 or ½ "NPT) are available for electric connection in case of electronics with plastic housing. To use these cable inlets, the existing factory protection caps must be broken with a tool (e.g.
  • Page 7: Overview Of Terminals Zok-E/Z With Universal Housing 'K

    ZOK-E/-Z 7.2 Overview of Terminals ZOK-E/Z with universal housing ‘K’ Battery 3,6V 2200mAh Size AA 7.3 Overview of Connections ZOK-Z with panel mount housing ‘P’ ZOK K03/1115 Page 7...
  • Page 8: Power Supply

    ZOK-E/-Z 7.4 Power Supply Depending on functionality and features, the electronics offer different possibilities for power supply:  Options ZOK-Z2: External DC-Supply  Options ZOK-Z1: Battery and ext. DC-Supply  Options ZOK-Z3: Battery and ext. DC-Supply and 4-20 mA Loop current 7.4.1 Storing the counter readings The storage of meter readings is carried out after each measurement cycle in the...
  • Page 9 ZOK-E/-Z 7.4.4 Battery operation (only ZOK-Z1K/Z3K) The options ZOK-Z1/-Z3/-E1/-E3 can also be powered by a battery. In battery mode, the device function scope is relatively limited:  All electrical outputs (switching outputs, analogue output, pulse output, status output) are disabled during battery operation. ...
  • Page 10: Sensor Inputs

    ZOK-E/-Z 7.5 Sensor Inputs 7.5.1 Active pulse signal Power Supply: External DC-Supply Signal input setting: „AKTIVES SIGNAL“ Wiring for ZOK-Z with universal housing ‘K’: Page 10 ZOK K03/1115...
  • Page 11 ZOK-E/-Z Wiring for ZOK-Z with panel mount housing ‘P’: 7.5.2 Hall Sensor, NPN- and PNP-Sensors Power supply: only external DC-supply Signal input setting: „HALL“ Signal input setting: „NPN“ Signal input setting: „PNP“ Wiring for ZOK-Z with housing ‘K’: ZOK K03/1115 Page 11...
  • Page 12 ZOK-E/-Z Wiring for ZOK-Z with panel mount housing ‚P‘: 7.5.3 Reed switch (-R0 Sensor option) Power supply External DC-supply, Battery operation or 4-20 mA loop current Signal input setting: „REED “ Wiring for ZOK-Z with universal housing ‘K’: Page 12 ZOK K03/1115...
  • Page 13 ZOK-E/-Z Wiring for ZOK-Z with panel mount housing ‘P’: 7.5.4 Inductor Power supply: External DC-supply and battery operation (Battery operation reduces battery life) Signal input setting: „Inductor“ Wiring for ZOK-Z with universal housing ‘K’: ZOK K03/1115 Page 13...
  • Page 14 ZOK-E/-Z Wiring for ZOK-Z with panel mount housing ‘P’: 7.5.5 Namur-Sensor Power supply: only external DC-supply Signal input setting: „NAMUR“ Wiring for ZOK-Z with universal housing ‘K’: Page 14 ZOK K03/1115...
  • Page 15: Control Inputs

    ZOK-E/-Z Wiring for ZOK-Z with panel mount housing ‘P’: Control Inputs There are 3 control inputs for external controlling of instrument functions. The activation of each function can be done through: a.) an active control input or b.) Carried out by a passive N/O contact. In both cases, the function will be activated on switching from HIGH to LOW level (falling edge).
  • Page 16 ZOK-E/-Z Wiring for ZOK-Z with universal housing ‘K’: Battery 3,6V Batterie 3,6V 2200mAh 2200mAh Size AA Größe AA Wiring for ZOK-Z with panel mount housing ‘P’: Page 16 ZOK K03/1115...
  • Page 17: Analogue Output (Only Zok-E3K/-Z3K/-Z3P)

    ZOK-E/-Z Analogue Output (only ZOK-E3K/-Z3K/-Z3P) 7.7.1 2-Wire Configuration 4-20 mA The options ZOK-Z3/-E3 can be operated as a source in a 2-wire 4-20 mA current loop. However, only passive Reed switch (option -R0) should be used as a sensor. In 2-wire loop operation, no other active outputs are available.
  • Page 18 ZOK-E/-Z Wiring for ZOK-E3K/-Z3K: Page 18 ZOK K03/1115...
  • Page 19 ZOK-E/-Z Wiring for ZOK-Z2P/-Z3P: 7.7.3 3-Wire Configuration as passive output, current sink (only ZOK-E3K/-Z3K) In the wiring 3-wire passive current sink, the load (load) is connected between current output (+) and voltage source (+Vs). In the 3-conductor wiring, all types of sensors can be connected and all other outputs can be used.
  • Page 20: Switching Output (Only Zok-Z2K/-Z2P/-Z3P/-Z3K)

    ZOK-E/-Z Switching output (only ZOK-Z2K/-Z2P/-Z3P/-Z3K) 7.8.1 Transistor Output The transistor outputs can be configured by software as PNP, NPN or push-pull output. In case of push-pull configuration, output will be switched between active- HIGH or LOW potential. The load can either be connected to GND or + Vs. In push- pull mode, no additional pull-up or pull-down resistor is required.
  • Page 21: Pulse Output And Status Output

    ZOK-E/-Z 7.9 Pulse Output and Status Output Pulse and status outputs are set to push-pull output type and provide an active digital signal with HIGH amplitude of about + Vs. Wiring for ZOK-E3K/-Z3K: ZOK K03/1115 Page 21...
  • Page 22: Operating And Menu Structure

    ZOK-E/-Z 8. Operating and Menu Structure 8.1 Overall 8.1.1 Functions of operating buttons Function Button Symbol Measuring mode Menu mode During the parameter setting, back to main menu / return to Enter Menu mode the measurement mode/jump Menu / Return to the previous decimal To be pressed position while setting...
  • Page 23: Measuring Mode

    ZOK-E/-Z 8.1.2.2 Numerical value input While setting parameters with numerical value, the assigned unit is always displayed above the input field in square brackets. The maximum size and the number of decimal places are fixed and cannot be changed. While setting the numerical value of a parameter, the left outer position is highlighted first.
  • Page 24 ZOK-E/-Z 8.2.2 Display layout in measuring mode single channel (ZOK-Z1/E1/Z3/E3) part- or total volume display input A part- or total volume display input A Unit associated to main display Page 24 ZOK K03/1115...
  • Page 25 ZOK-E/-Z 8.2.3 Display layout in measuring mode for dual channel (ZOK-Z1/E1/Z3/E3) ZOK K03/1115 Page 25...
  • Page 26 ZOK-E/-Z 8.2.4 Display layout in measuring mode for dossier ZOK-Z2 Page 26 ZOK K03/1115...
  • Page 27: Menu Mode

    ZOK-E/-Z Menu Mode In the menu, all device parameters can be set. The individual parameters are organized into groups according to their function. While the menu mode is turned on, the input signal detection and pulse output (option -Z3) are still active in the background.
  • Page 28: General Functions

    ZOK-E/-Z 9. General Functions MIN- MAX. Memory (not for ZOK-Z2P/-Z2K) The MIN-MAX memory function stores the absolute maximum and minimum measured value of the flow rate since the last reset or since the last device start. The current memory values can be displayed and if required reset by pressing measurement mode.
  • Page 29: Overview Of Menu Functions/ Instrument Parameters

    ZOK-E/-Z 10.2 Overview of menu functions/ instrument parameters Parameter Default available with available with Menu level Sublevel Description Value range level value Electronics type voltage type German English Language English Z1,Z2,Z3 Battery, external  Spanish French Contrast Display contrast 0 -50 Z1,Z2,Z3 Battery, external ...
  • Page 30 ZOK-E/-Z Parameter Default available with available with Menu level Sublevel Description Value range level value Electronics type voltage type Filter factor Filter Size 1-50 Z1,Z2,Z3 Battery, external  Jump det. Jump threshold for threshold jump-detector 0.05 – 1.00 0.1 [xFS] Z1,Z2,Z3 Battery, external  function Filter Jump det.
  • Page 31 ZOK-E/-Z Parameter Default available with available with Menu level Sublevel Description Value range level value Electronics type voltage type Pulsoutput enable Enabled/ disabled disabled external (3‐wire)   Source Input A / Output Selection of the Input A / Input B Input A associated signal external (3‐wire)  ...
  • Page 32: Signal Input

    ZOK-E/-Z Parameter Default available with available with Menu level Sublevel Description Value range level value Electronics type voltage type Disabled /Dosing Function disabled external  low flow Assigning switching Input A Source Input A external  output Output 1 Assignment output NPN / PNP / PP Output type external ...
  • Page 33 ZOK-E/-Z 10.3.2 Signal input / Input type The 2 pulse inputs can be configured in different modes together or independently. The following modes are available: Parameter Description Menu Input A single Single-channel mode, only input A is active. Signals at the input B are not evaluated.
  • Page 34 ZOK-E/-Z 10.3.4 Signal Input / Filter In case of discontinuous input signals, the integrated filter function can filter the display of flow rates, the analogue output and the switching outputs (only options E3/Z3). Despite filtering effect, the reaction time to rapid changes in the flow rate can be kept low by appropriate choice of filter parameters.
  • Page 35 ZOK-E/-Z 10.3.5 Signal Input / Scaling A The correct scaling of the signal inputs is necessary for exact indication on the display. For this purpose, entering the pulse rate of the connected sensors is necessary. For option ZOK-Z3P / -Z3K in single-channel mode for input A linearization function with up to 10 points is available.
  • Page 36 ZOK-E/-Z Linearization Incorrect! Flowrate Ax negative slope! Such a case is illustrated in the graph below, in which Q2 <Q1, thus having a negative slope between A2 and A1. To correct this error, the bases must be checked and corrected if necessary. This must always apply: 10.3.6 Signal Input / Scaling B...
  • Page 37: Rate Measurement

    ZOK-E/-Z 10.4 Rate Measurement 10.4.1 Rate Measurement / Refresh rate Parameter "Sampling rate" specifies the time interval within which the input signal is recorded, the flow rate is calculated and brought to display. The condition of all other outputs which depends on the flow rate (analogue output, switching outputs and status output) will be recalculated after the measurement time.
  • Page 38: Counter

    ZOK-E/-Z 10.5 Counter All electronics have options of a (non-resettable) total counter and a (resettable) subset counter for each input channel. For devices with dosing function, only a total count is present, the subset counter acts as a dosing counter. The count of all active counters can be displayed in the "Device Status"...
  • Page 39 ZOK-E/-Z Behaviour at OVERFLOW: The maximum pulse frequency is limited to 50 Hz due to fixed pulse width. If this frequency is reached or if the measured volumetric flow lies in the OVERFLOW range, the pulse output is switched off and a constant HIGH level is switched at the output.
  • Page 40: Switching Outputs (Only For Options Zok-Z2/-Z3)

    ZOK-E/-Z 10.7 Switching outputs (only for options ZOK-Z2/-Z3) There are two independently configurable limit switch outputs. With options ZOK-Z3, these can be parameterized with a limit function or window function. For options ZOK-Z2, these outputs are permanently linked to the dosing. 10.7.1 Switching Output / Output 1+2 / Function "Function"...
  • Page 41 ZOK-E/-Z 10.7.3 Switching Output / Output 1+2 / Output type Parameter "Output" defines the function of the transistor output. NPN, PNP or PP (Push-pull) output types are available. The push-pull type combines NPN and PNP and is therefore the best choice for most wiring. All outputs are equipped with short circuit and overload protection.
  • Page 42: Dosing Function (Only Zok-Z2)

    ZOK-E/-Z 10.8 Dosing function (only ZOK-Z2) The dosing function is exclusively available for the options ZOK-Z2K / -Z2P. To build a dosing system, a flow sensor can be connected to input A and up to 2 switch actuators (valves) can be connected to the switching outputs (relay outputs). The use of the second input signal B is not possible.
  • Page 43: Analogue Output (Only Option Zok-E3/-Z3)

    ZOK-E/-Z 10.8.2 Dosing function / Dosing value Parameter "dosing value" specifies the dosing volume. The setting for the dosing volume can also be accessed directly from the dosing function by pressing the control key button (as long as the dosing is not started). 10.8.3 Dosing function / Dosing unit Parameter "dosing"...
  • Page 44 ZOK-E/-Z 10.9.1 Analogue output / Flow rate for 20 mA The scaling of the analogue output is done through parameter "flow rate for 20 mA". As a standard, this value is always set at the last value of measuring range. However, this can be defined at any point in the measuring range (however always greater than measuring range starting value).
  • Page 45: Service

    If the user's password has been changed from "00000", password request will be generated on next entry to User menu. If the default password has been forgotten or misplaced, the master password can be requested from KOBOLD. 10.10.3 Service / User service / Factory defaults By activating this function, the user can reset the device to factory settings.
  • Page 46: Technical Details

    Battery (data backup and battery operation): 3.6 V/2200 mAh Lithium size AA Battery life in battery mode: approx. 12 months (not applicable for ZOK-ZxP- [panel mount]) Battery life in the data 5 years backup operation: Display: LCD, graphic 128x64, backlight adjustable...
  • Page 47 ZOK-E/-Z Outputs Status output: transistor output, Push pull (PP), max. 300 mA, overload protection Outputs ZOK-Z2 Relay outputs (only –Z2): potential-free changeover contacts, max. switching voltage 230 V , max. current load dependent (see AC/DC diagram) Switching outputs (only –Z2/-Z3): transistor output, PNP, NPN or push-pull (PP), with software configureable, max.
  • Page 48 ZOK-E/-Z Additional data for options ZOK-ZxP Power supply: 8…32 V option (option -3) 85…240 V (option -0) no battery operation Sensor supply: always 0.5 V (option -3) less than power supply always 8 V or 23 V selectable (option -0) Relay outputs (not ZOK-Z1P): potential-free changeover contacts, max.
  • Page 49: Ordering Details

    = field housing (in preparation) not for ZOK-E1 and ZOK-E3 only for housing ZOK-ZxP and ZOK-ZxF only for housing ZOK-xxK, ZOK-xxM and ZOK-xxF battery operation, only for housing ZOK-xxK, ZOK-xxM, not for ZOK-Z2… in preparation (not for ZOK-E1 and ZOK-E3) standard for ZOK-xxP, optional for ZOK-ZxK and ZOK-ZxM…...
  • Page 50: Dimensions

    ZOK-E/-Z 13. Dimensions ZOK-ZxK ZOK-Ex/-Zx ZOK-ZxP Page 50 ZOK K03/1115...
  • Page 51: Declaration Of Conformance

    ZOK-E/-Z 14. Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flow-Counter/-Dosing Unit/-Controller Model: ZOK-Ex and ZOK-Zx to which this declaration relates is in conformity with the standards noted below: EN 61326-1:2013...
