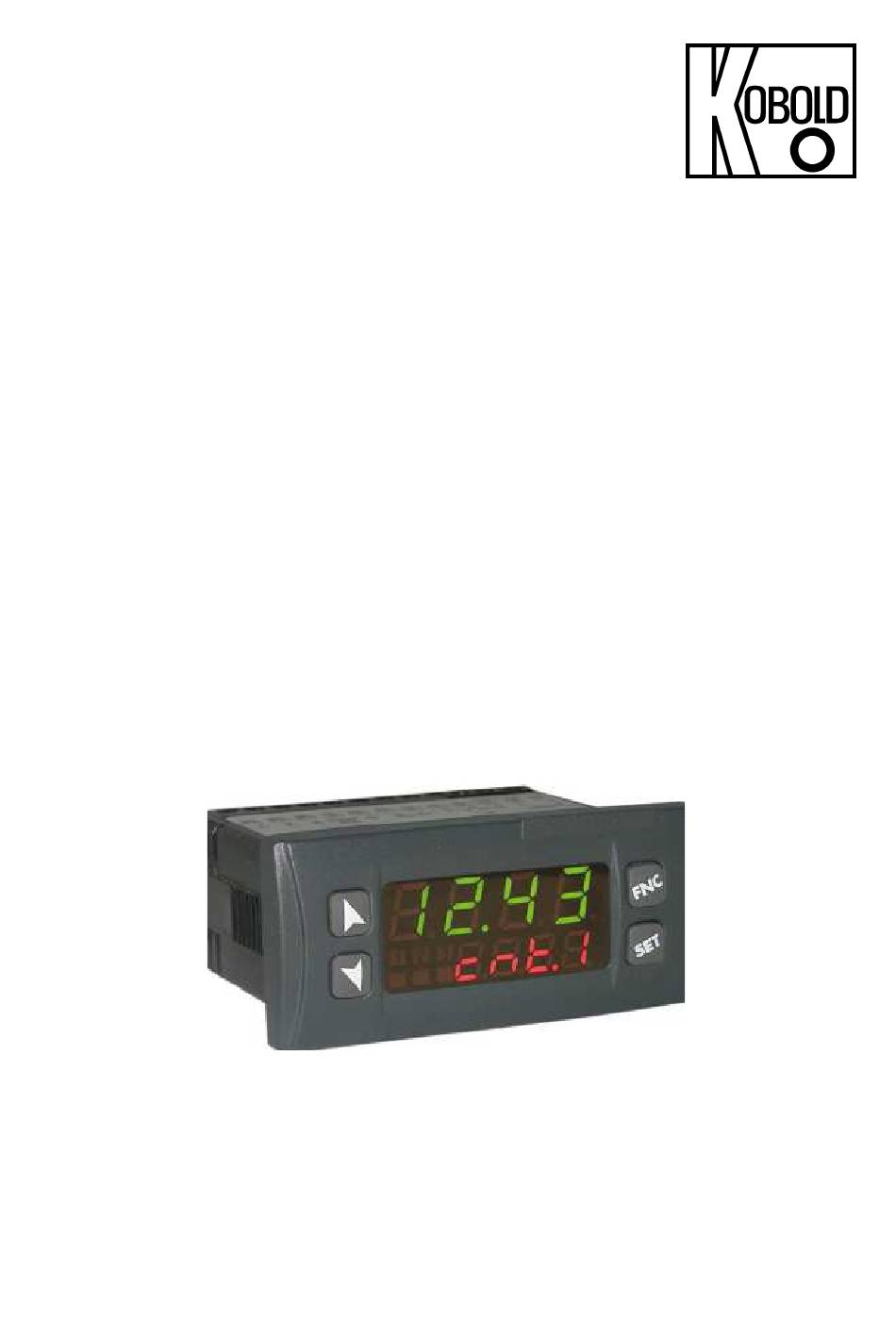

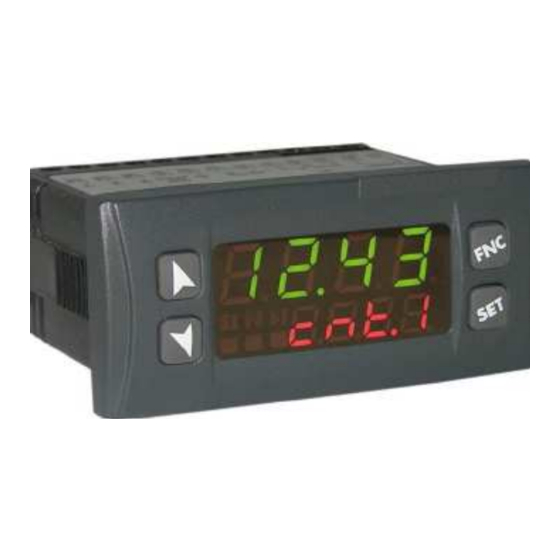

- Page 1 Operating Instructions Counter/Preset Counter Model: DAG-Z2F80W2...
- Page 2 24 to 230VAC/VDC +/-15% 50/60Hz / 2W Report serial transmission by the DAG-Z2 INTRODUCTION SETPOINT MODIFICATION Thanks for choosing a KOBOLD device.The DAG-Z2 can be set in 2 different PRESS DISPLAY modes: Single or Double counter, all with independent settings. 3 universal...
- Page 3 Counter value not visualized Disable Default C2 MODIFY CONFIGURATION PARAMETERS Counter value visualized Visualized Default C1 PRESS DISPLAY Function Counter 1 visualization format P-17 Decimal Point Counter 1 Display 1 shows Counter 2 visualization format P-35 Decimal Point Counter 2 and 1st digit flashes.
- Page 4 COUNTER FUNCTION COUNTER CLOCK CONFIGURATION Counts I1:Enc.A I2:Enc.B I3:Enc.Z COUNTER OUTPUT MODE CONFIGURATION COUNTERS DISPLAY CONFIGURATION P-15 (opz.) P-01 Load DAG- Counter Clock P-25 Counter 1 Output Mode P-16 P-17 P-18 P-19 Function Counter 1 Display Decimal Point Counter 1 Counter 1 Counter Setpoint1...
- Page 5 DAG-Z2F80W2 Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Counter/Preset Counter: DAG-Z2F80W2 to which this declaration relates is in conformity with the standards noted below: EN61000-6-3 EN61000-6-4 EMV emission EN61000-6-2 EN61000-4-2...
