Cover Pools Save-T Cover II Installation & Owner's Manual

Description:
The Touch Pad sends a digital signal to the cover receiver unit which is mounted in the cover housing.
The signal is received through the remote antenna that is connected to the receiver board. The Touch
Pad must be located in line of sight of the antenna.
(See "Wireless Touch Pad Placement and Antenna Mounting" instructions.)
There are no wires required to be run to the Touch Pad, it is powered by a long life lithium battery
with a 5 year life expectancy. Only power wires need to be run to the receiver board and the receiver
board is wired to the pool cover motor or hydraulic pump motor.
Touch Pad:
The Touch Pad is operated by pushing and holding either the cover, or uncover buttons.
The Touch Pad can be locked off or on with the lock provided. Up to 3 Touch pads may be installed
to operate the same cover.
Touch Pad Mounting:
The Touch Pad comes in a 2" x 4" bezel mounted in a separate standoff box. The Touch Pad can
be mounted in a standard recessed wall box if you choose. The Touch Pad must be mounted in
full view of the pool cover and must be 5 feet above the deck to meet codes.

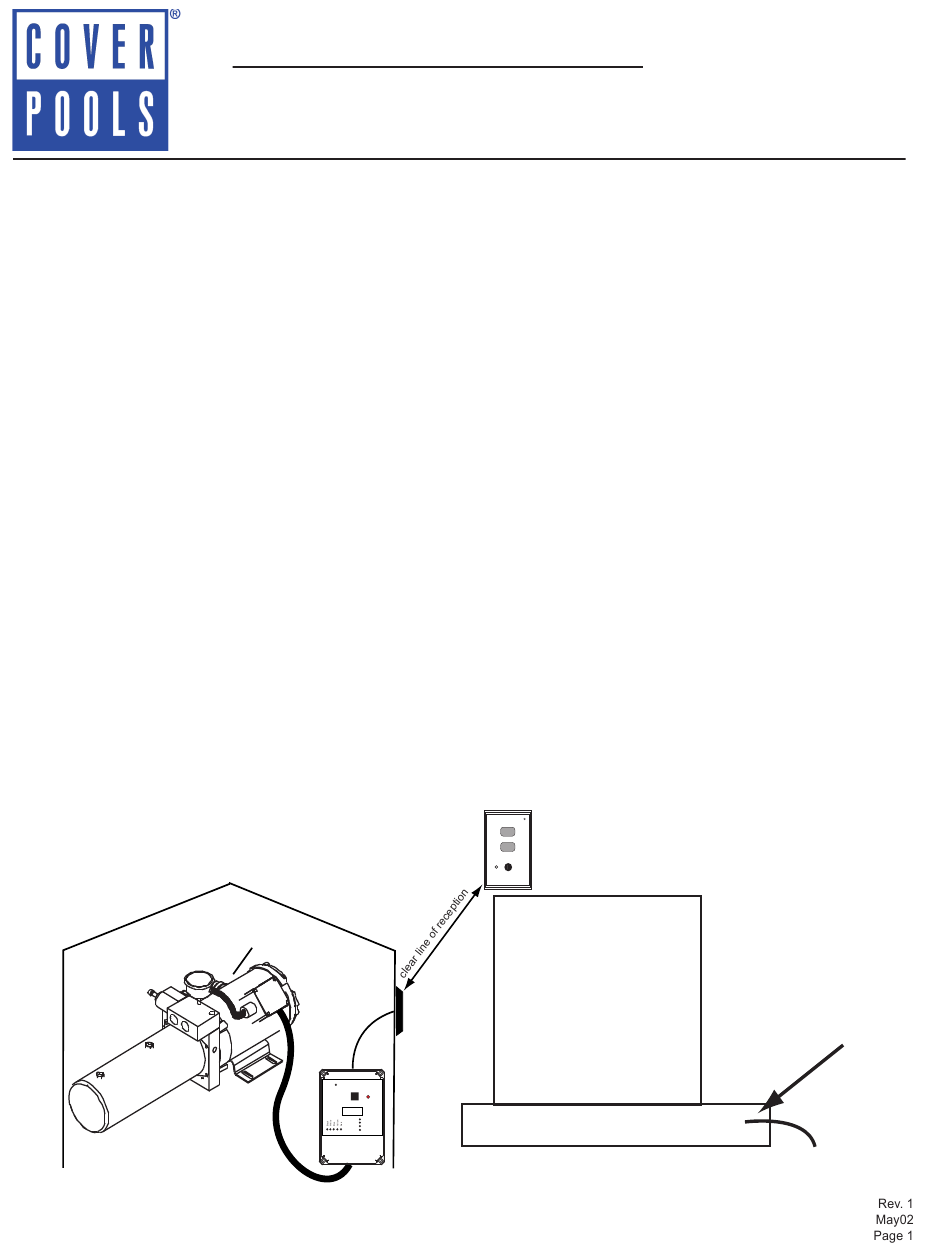

Hydraulic Installations:
Hydraulic power units are typically mounted in a remote location from the pool. Your power wires for
the Touch Pad will run to the hydraulic power unit location. The antenna attached to the receiver board
must be located in line of site with the Touch Pad for reception. The antenna has a 10 ft cord and may
be able to be mounted in a good reception location. If not the receiver will have to be extended away
from the hydraulic system until the antenna is in a good reception location. Do not cut or extend the
antenna wire. It has been tuned for a specific length and will not work if changed.
Electrical Requirements:
120 V AC dedicated line from 15 amp G.F.C.I. 3# 14 AWG wires, hot, neutral and ground.
(Run's longer than 50 ft, may require larger wires.) Conduit from breaker must terminate in motor side of
housing with at least 3 feet of flex conduit plus wires.
HYDRAULIC PUMP UNIT
TANK
equiptment room
copyright Cover Pools Inc. 2000 * 66 East 3335 South Salt Lake City, UT 84115 * 801-484-2724 Fax 801-484-2763 * www.coverpools.com
Installation / Owners Manual
Wireless Touch Pad Pre-wiring Instructions
antenna
remote
mounted
Antenna
Programming
Button
LED
Relay
Black / Red strp
Black
Green / Ground
White / Neutral
Motor Connection Wires
receiver
touch pad
SAVE-T COVER II
R
cover
uncover
off
on
cover-pools, inc.
POOL
COVER HOUSING
Extend 3 feet of seal tight
flex conduit in to housing.
Provide 3 # 14 AWG wires
hot, neutral, ground.
motor
To 120 VAC dedicated
15 amp G.F.C.I circuit
