- Page 1 X3 TACTIX...
-
Page 2: Table Of Contents
FOR MAKING A Technical Specifications Explanation of MOA PURCHASE WITH Reticle Information RITON OPTICS. Explanation of Parallax Illumination System We know that you have many Factory Zero, Windage and Elevation options and we are thankful for Mounting the Riton Optic selecting Riton as your optics provider. Bore Sighting Zeroing the Riflescope As a company founded by Law Enforcement and Military Veterans, we take our commitment to service seriously. We have an unwavering passion for offering high quality optics at the industry’s Troubleshooting most competitive prices and matched by incredible service. You will see the difference in everything we do because we are different, Warranty and we developed this company to be exactly that so that you, the consumer, get everything you deserve. If you are ever in need of... -
Page 3: Optic Specifics

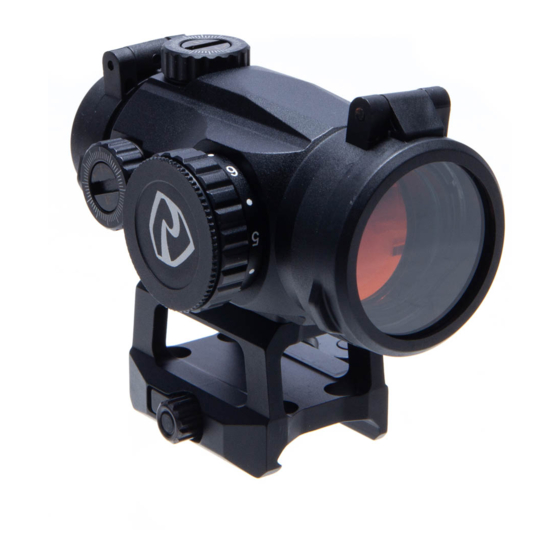

X3 TACTIX ARD DE TAIL ED PRODUC T FEAT U R ES: • Capped Turrets • Aircraft Grade Aluminum with Rugged Design Ready for the Toughest Environments Optic Specifics • 100% Waterproof, Fog proof and Shockproof (tested up to 1200 G’s) The X3 Tactix ARD is a versatile red dot optic, whether you’re mounting it to an AR, AK, a • 1 MOA Windage and Elevation shotgun, or a pistol. Featuring the Riton 2 MOA ultra-precise red dot, it also comes with Adjustment three interchangeable mounts to find the perfect mounting height no matter the platform. • Assembled in EP-Level Clean Room Turrets Illumination Objective QD Rail Mount... -
Page 4: Technical Specifications
Technical Specifications Magnification: 1x Parallax Setting: 50yds Objective Lens Diameter: 23mm Lens Coating: Fully Multi-Coated, Full Wide Band, Waterproof Coated, Low Light Enhancement Dot Size: 2 MOA Red Dot Field of View at 100 yds: 68ft Material: 6061-T6 Aircraft Grade Aluminum Weight: 4oz/118g Length: 2.44in/62mm Eye Relief: Unlimited Exit Pupil: 28mm Click Value at 100 yds: 1 MOA Adjustment Range: 120 MOA... -
Page 5: Explanation Of Moa
1 MOA 1 IN 2 IN 3 IN 4 IN 5 IN *Graduations can be calculated at additional distances beyond 500 yds. Second Focal Plane (SFP) Reticle The reticle in your Riton riflescope is a Second Focal Plane (SFP). SFP reticles are located in rear of the image erecting and magnifying lenses. The advantage of a SFP reticle is that it always maintains the same appearance. Shooters using reticle hash marks should be aware that the listed subtensions used for estimating range, holdover, and windage correction are at the maximum magnification. TO C HAN GE MAG N IFICATION: Simply turn the magnification ring to the desired magnification level. Lower powers offer a wider field of view while higher powers... -
Page 6: Reticle Information
Reticle Information The X3 Tactix ARD has a 2 Minute of Angle (MOA) dot, is night vision compatible and can run up to 1600 hours on one single CR2032 battery. Explanation of Parallax Parallax describes a situation where the focal plane of the object in the scope is offset YOU R RIT ON RI FLE SC OPE DO ES from the reticle. If you have parallax, you have an optical illusion that must be corrected. NOT H AV E A PA RA LL AX FOC U S Parallax should not be confused with focus. Parallax compensation changes neither the AND IS FAC T ORY F OC US ED AT A focus of the reticle nor the focus of the image; it simply moves the planes at which these two objects are in focus so that they share the same plane. -
Page 7: Illumination System
T O C H ANGE BATT E RY: Rotate the adjustment knob in either direction. Unscrew the outer cap. Remove the battery. Note - The illumination knob allows for 6 levels of brightness intensity. Replace with a new CR2032 battery with positive side out. Re-install the battery cap and be sure to tighten fully. Mechanical Zero Your Riton riflescope is pre-set from the factory with the reticle in the center of the adjustment ranges. TO F IND FACTORY ZERO: Dial turret one direction until it will no longer rotate. NOTE - Do not force the turret past it’s stopping point. Dial turret opposite direction counting how many MOA it turns. Divide that total number of MOA in half and dial to that number for your factory zero. - Page 8 Mounting Your Riton Red Dot TO M OU NT YOU R RITO N RED DOT : Your Riton RMD come with a lower 1/3 cowitness mount Using the provided allen wrench loosen the base bolt. Then attach the lower base and make sure this is solidly seated in the base groove. To prevent recoil injury, position the Red Dot so that you have at least four inches of eye relief. Be sure the base clamp is hooked around the outside of the rail/base. Press downward and forward toward the muzzle. Then, firmly tighten the base clamp hex nut. Note. the Riton RRD has an unlimited eye relief. If you plan to mount a magnifier behind your Red Dot be sure to leave sufficient space for this as you mount your RRD.
-
Page 9: Bore Sighting
Bore Sighting T O BORE SI GH T YOU R RIF LE SC OPE : Place the rifle solidly on a rest and remove the bolt/bolt carrier group. Bore sighting is a preliminary procedure to achieve proper alignment of the RMD with the rifle’s bore. Initial bore sighting of Sight through the bore at a target approximately 25 yards the riflescope will decrease the amount of time and ammunition away. you need to use at the range. Move the rifle and the rest until the target is visually centered inside the barrel. This can be done by using a mechanical or laser bore sighter according to the manufacturer’s instructions or by removing the With the target centered in the bore, make windage and bolt and sighting through the barrel on some rifles. elevation adjustments until the red dot is also centered over the target. Note - If a laser bore sighting or any other similar device inside the bore was used, it must be removed before firing. -
Page 10: Troubleshooting
Troubleshooting Problems thought to be associated with the scope are often actually mount problems. Take time to ensure the mounts are tight to the RMD and that RMD is secured and doesn’t twist or move in the rings. Confirm that correct base and rings are being used and in the proper orientation. Be sure to torque rings per manufacturer’s specs. Keep in mind there are many issues that can cause poor bullet grouping. Always utilize a solid rest and maintain good shooting technique. Have a qualified gunsmith look over your rifle to be sure all things are in working order. See that the action and barrel are properly cleaned. Some rifles and ammunition don’t work well together, try different ammunition and see if accuracy improves. Riton Warranty As a part of the Riton Promise we believe in providing you with the best possible service, including the industry’s best warranty. The quality of our products makes this the best warranty you’ll likely never have to use; however, as hunters and outdoorsmen and women, we know that bad things sometimes happen to even the most cautious. OUR WARRAN TY IS SIM PLE: • No proof of purchase or registration required for your Riton products. • Lifetime warranty regardless of original purchaser. • All warranty replacements will receive a brand-new product off the shelf. We will not ever replace the product with a repaired or refurbished product. • Replacement product will be shipped within 48 hours of receiving and approving your return. • Loss, theft and/or deliberately worn and damaged products are not covered. Warranty is VOID if damage results from unauthorized repair or alteration. 1-855-39-RITON info@ritonusa.com R IT ONOPT ICS.COM...
