Summary of Contents for Riton X1 TACTIX RRD

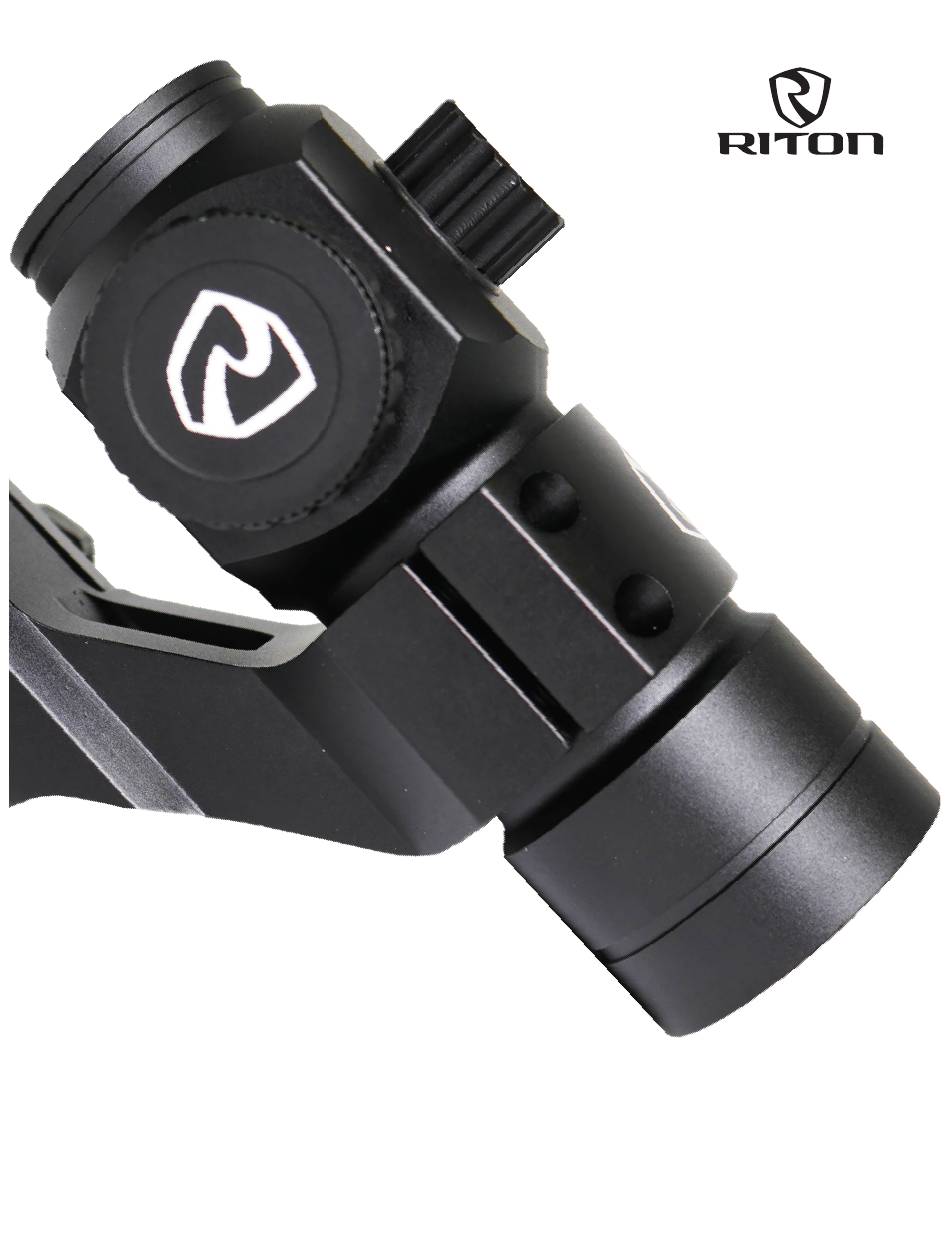

- Page 1 X1 TACTIX...
-
Page 2: Table Of Contents
PURCHASE WITH Explanation of Second Focal Plane RITON OPTICS. Reticle Information Fast Focus Eyepiece We know that you have many Explanation of Parallax options and we are thankful for Illumination System selecting Riton as your optics provider. Factory Zero, Windage and Elevation Mounting the Riton Optic As a company founded by Law Enforcement and Military Veterans, we take our commitment to service seriously. We have an unwavering passion for offering high quality optics at the industry’s Eye Relief and Reticle Alignment most competitive prices and matched by incredible service. You... -
Page 3: Optic Specifics

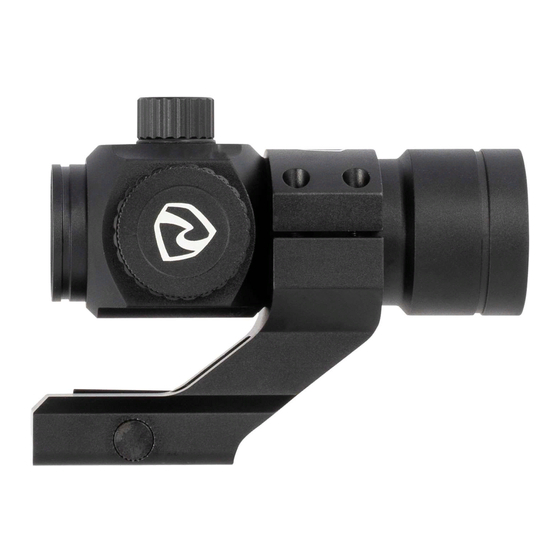

X1 TACTIX RRD DE TAIL ED PRODUC T FEAT U R ES: • Push/Pull Locking Zero Reset Turrets • Aircraft Grade Aluminum with Rugged Design Ready for the Optic Specifics Made from a single piece of aircraft-grade aluminum. Your Toughest Environments RITON X1 Tactix RRD optic is waterproof, fogproof and the lenses are fully multi-coated. • 100% Waterproof, Fog proof and It has been tested to withstand up to 1200 G force of impact as well as being sealed with Shockproof (tested up to 1200 G’s) O rings and Nitrogen purged and sealed for fog and water protection. It has unlimited eye relief, easy to use capped adjustment knobs for elevation, windage and side illumination • 1/4 MOA Fingertip Windage and control knob Elevation Adjustment • Fast-Focus Eyepiece • Assembled in EP-Level Clean Room ELEVATION ADJUSTMENT Windage Adjustment... - Page 4 Technical Specifications Magnification: 1x Parallax Setting: 50yds Objective Lens Diameter: 29mm Lens Coating: Fully Multi-Coated, Full Wide Band, Waterproof Coated, Low Light Enhancement Dot Size: 2 MOA Red Dot Field of View at 100 yds: 68ft Material: 6061-T6 Aircraft Grade Aluminum Weight: 9.5oz/269g Length: 3.76in/95.5mm Eye Relief: Unlimited Exit Pupil: 28mm Click Value at 100 yds: 1 MOA Adjustment Range: 120 MOA...
-
Page 5: Explanation Of Moa
Pictures of turrets with ticks and 1/2 adjustments. 100 Yards 200 Yards 300 Yards 400 Yards 500 Yards 1 MOA 1 IN 2 IN 3 IN 4 IN 5 IN *Graduations can be calculated at additional distances beyond 500 yds. Second Focal Plane (SFP) Reticle The reticle in your Riton riflescope is a Second Focal Plane (SFP). SFP reticles are located in rear of the image erecting and magnifying lenses. The advantage of a SFP reticle is that it always maintains the same appearance. Shooters using reticle hash marks should be aware that the listed subtensions used for estimating range, holdover, and windage correction are at the maximum magnification. -
Page 6: Reticle Information
Reticle Information The X1 Tactix RRD has a 2 Minute of Angle (MOA) dot, is night vision compatible and can run up to 1600 hours on one single CR2032 battery. Explanation of Parallax Parallax describes a situation where the focal plane of the object in the scope is offset YOU R RI T ON RIF LES CO PE DOES from the reticle. If you have parallax, you have an optical illusion that must be corrected. NOT H AVE A PA RA LLAX F OC U S Parallax should not be confused with focus. Parallax compensation changes neither the A ND IS FAC TO RY F OC U SE D AT A focus of the reticle nor the focus of the image; it simply moves the planes at which these two objects are in focus so that they share the same plane. -
Page 7: Illumination System
T O C H ANGE BATT E RY: Rotate the adjustment knob in either direction. Unscrew the outer cap. Remove the battery. Note - The illumination knob allows for 11 levels of brightness intensity. Replace with a new CR2032 battery with positive side out. Re-install the battery cap and be sure to tighten fully. Illumination knob with numbers and battery location Factory Zero Your Riton riflescope is pre-set from the factory with the reticle in the center of the adjustment ranges. TO F IND FACTORY ZERO: Dial turret one direction until it will no longer rotate. NOTE - Do not force the turret past it’s stopping point. Dial turret opposite direction counting how many MOA it turns. Divide that total number of MOA in half and dial to that number for your factory zero. -
Page 8: Eye Relief And Reticle Alignment
Mounting Your Riton Red Dot TO M OU NT YOU R RITO N RED DOT : Loosen the nut on the bottom of the RED DOT base. Then attach the lower half to the rail/base and make sure this is solidly seated in the base groove. To prevent recoil injury, position the ring so that you have at least four inches of eye relief. Note. the Riton RRD has an unlimited eye relief. If you plan to mount a magnifier behind your Red Dot be sure to leave sufficient space for this as you mount your RRD Before tightening the scope ring screws, adjust for maximum eye relief to avoid injury from recoil. Be sure the base clamp is hooked around the outside of the rail/base. Press downward and Eye Relief and Reticle Alignment TO SET A PRO PER EY E RELIEF AND R ETICLE AL IGN MENT: Set the riflescope magnification to the highest setting. -
Page 9: Bore Sighting
Bore Sighting T O BORE SIG HT YOUR RIFLES COPE : Place the rifle solidly on a rest and remove the bolt. Bore sighting is a preliminary procedure to achieve proper Sight through the bore at a target approximately 100 yards alignment of the scope with the rifle’s bore. Initial bore sighting of away. the riflescope will decrease the amount of time and ammunition Move the rifle and the rest until the target is visually centered you need to use at the range. inside the barrel. This can be done by using a mechanical or laser bore sighter With the target centered in the bore, make windage and according to the manufacturer’s instructions or by removing the elevation adjustments until the reticle crosshair is also bolt and sighting through the barrel on some rifles. centered over the target. Note - If a laser bore sighting or any other similar device inside the bore was used, it must be removed before firing. -
Page 10: Troubleshooting
Troubleshooting Problems thought to be associated with the scope are often actually mount problems. Take time to ensure the mounts are tight to the rifle and that scope is secured and doesn’t twist or move in the rings. Confirm that correct base and rings are being used and in the proper orientation. Be sure to torque rings per manufacturer’s specs. Keep in mind there are many issues that can cause poor bullet grouping. Always utilize a solid rest and maintain good shooting technique. Have a qualified gunsmith look over your rifle to be sure all things are in working order. See that the action and barrel are properly cleaned. Some rifles and ammunition don’t work well together, try different ammunition and see if accuracy improves. Riton Warranty As a part of the Riton Promise we believe in providing you with the best possible service, including the industry’s best warranty. The quality of our products makes this the best warranty you’ll likely never have to use; however, as hunters and outdoorsmen and women, we know that bad things sometimes happen to even the most cautious. OUR WARRAN TY IS SIM PLE: • No proof of purchase or registration required for your Riton products. • Lifetime warranty regardless of original purchaser. • All warranty replacements will receive a brand-new product off the shelf. We will not ever replace the product with a repaired or refurbished product. • Replacement product will be shipped within 48 hours of receiving and approving your return. • Loss, theft and/or deliberately worn and damaged products are not covered. Warranty is VOID if damage results from unauthorized repair or alteration. 1-855-39-RITON info@ritonusa.com R IT ONOPT ICS.COM...
