- Page 1 CRT-541 Card Dispenser Machine Ver 1.0 PRODUCT SPECIFICATION CREATOR (CHINA) TECH CO., LTD. ·2F, M-10 Building, Center Area, Hi-tech Industrial Park , Shenzhen Guangdong China ·TEL:+86 755 26710691 FAX:+86 755 26710105 ·Http://www.china-creator.com...
-
Page 2: Table Of Contents
CONTENTS 1. O ………………………………………………….…………………... 1 VERVIEW 2. P ………….……………….……2 RODUCT ODULE UMBER PECIFICATION 3. G ENERAL PECIFICATION…………………………………….……..…………...……… 4. C …………..…………….…...……….…... …4 RT-541 ESIGN PECIFICATION 4.1 C ……………………………...…………..…4 HICKNESS DJUSTMENT 4.2 S …….…………..…...……………5 TRUCTURE IMENSION RAWINGS 4.3 R …………………….……...…………………6 S-232 OMMUNICATION 4.31 R …………………...……...…..……6 S-232... - Page 3 Revision Log Version Revision Time Content 2010.1.25 First Release...
-
Page 4: Overview

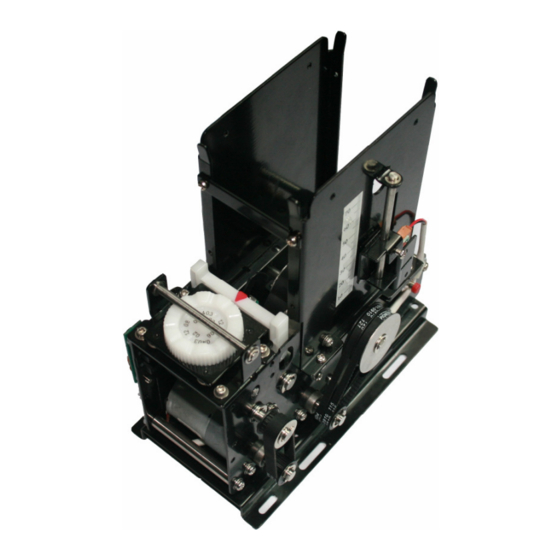

Card Dispenser Page 4/18 VERVIEW CREATOR( CHINA) CRT-541 card dispenser is upgraded from CRT-540. It performs more stable and reliable but is compatible with CRT-540 in all aspects, including communication protocol, mounting holes position and so on. In addition, CRT-541 has the following features: ·... -
Page 5: Product Module Number Specification
0 0 : Standard Product XX: Customized Product (eg. TT) Version&Serials Number 1---9 Notes: J Type bezel can’t support continuous card dispending. NOTE CRT-541 optional stackers Extra long stacker(285PCS) CRT-500-TCZ (285pcs, 0.76 standar card) Long stacker(170PCS) CRT-500-CKZ (170pcs, 0.76 standar card) Short stacker(60PCS) CRT-500-DKZ (60pcs, 0.76 standar card) -
Page 6: General Pecification
Model No. CRT-541 SPECIFICATION Date 2010/01/10 Ver. Card Dispenser Page 3/16 3. General Specification ·Power Supply: DC 24V ±5% ·Current Comsumption: Static Current: 0.1A Peak Current During Operation: 1.5A Normal Current Condition: 800mA ·Card Feeding-Out Speed: > 1Cards/s ·Communication Interface: RS232C, TTL ( customized) ·Card Dimensions:... -
Page 7: Crt-541 Design Specification
With this feature, CRT-541 is quite suitable for the unattended vending devices to dispense various cards of distinct thickness. -
Page 8: Structure And Dimension Drawings
Card Dispenser Page 5/16 Structure And Dimension Drawings The following diagram show the structure and dimension 1. CRT-541 ( No bezel ) Q R - 066/ A . 1 166. 4 38. 5 É ó º Ë ¹ ¤ Ò Õ... -
Page 9: Rs-232 Communication Mode
Model No. CRT-541 SPECIFICATION Date 2010/01/10 Ver. Card Dispenser Page 6/16 RS-232 Communication Mode 4.31 RS-232 Communication Interface Baud rate (BPS) 9600 bps Communication type Asynchronous communication Transmit type Half duplex 4.32 Frame Bit Details Start bit 1 bit Data bit... -
Page 10: Transmission Data Package Characters
Model No. CRT-541 SPECIFICATION Date 2010/01/10 Ver. Card Dispenser Page 7/16 Transmission Data Package Characters 4.4.1 Definition of Control Character S T X: 0X02 Start character of data package. E T X: 0x03 End character of data package. A C K: 0x06 Positive acknowledgement character of unit. -
Page 11: Command List
Model No. CRT-541 SPECIFICATION Date 2010/01/10 Ver. Card Dispenser Page 8/16 4.4.3 Command List The following table shows command list. Command Code Function Dispensing card ‘ ’(0x44 0x43) Dispensing card out of (Card-out address) the bezel Enquiry ‘ ’(0x41 0x50) -
Page 12: Stacker Status Response Datasheet
Model No. CRT-541 SPECIFICATION Date 2010/01/10 Ver. Card Dispenser Page 9/16 4.4.5 Stacker Status Response Datasheet The following table shows stacker status response datasheet. Status Code Specification Full cards ‘0’ (0x30) There are enough cards in stacker stacker Lack card ‘1’(0x31) -
Page 13: General Communication Process
Model No. CRT-541 SPECIFICATION Date 2010/01/10 Ver. Card Dispenser Page 10/16 5. General Communication Process (1) After receiving correct data package, the unit will check the address. If matched, unit must give positive answer to host: ACK+ADDRESS (ADDRESS is the address of dispenser, 2 bytes); If not, unit can not send any data to the host. -
Page 14: Typical Communication Process Between Host & Unit
Model No. CRT-541 SPECIFICATION Date 2010/01/10 Ver. Card Dispenser Page 11/16 5.1 Typical Communication Process Between Host & Unit 5.1.1 Normal process of dispensing The host Unit Enquiry command ACK+ADDRESS Card dispensing success last time Enquiry command ACK+ADDRESS Unit is ready with cards... -
Page 15: Multi-Unit Communication Setting
6. Munti-Unit Communication Setting Sketch map of Multi-Unit PCB The following diagram show the PCB of Multi-Unit CRT-541. Note 1 232-ZIP : Two 232 interfaces complete the same. One connects to extension. 2 DIP-ZIP The multi-switch used to distribute the address of dispenser. -
Page 16: Dip Setting Of Unit Address
Model No. CRT-541 SPECIFICATION Date 2010/01/10 Ver. Card Dispenser Page 13/16 DIP Setting Of Unit Address The following table shows the Dip setting of Unit Address. Multi-switch Corresponding address ‘00’ ‘01’ ‘02’ ‘03’ ‘04’ ‘05’ ‘06’ ‘07’ ‘08’ ‘09’ ‘10’... -
Page 17: Maintenance And Cautions
Model No. CRT-541 SPECIFICATION Date 2010/01/10 Ver. Card Dispenser Page 14/16 7. Maintenance And Cautions Maintenance After using for long time or dispensing amount of cards, the dispenser may be weared out because of every part is running, so we need to do some maintenance to the machine. -
Page 18: Warranty
Date 2010/01/10 Ver. Card Dispenser Page 15/15 WARRANTY 1) One year guarantee free of charge. Counting from the day that users receive the goods; 2) User sends the goods to us for repairing; 3) Provide after-sale service after exceeding guarantee period. We will take some material fee if need to replace fittings.
