Settings map

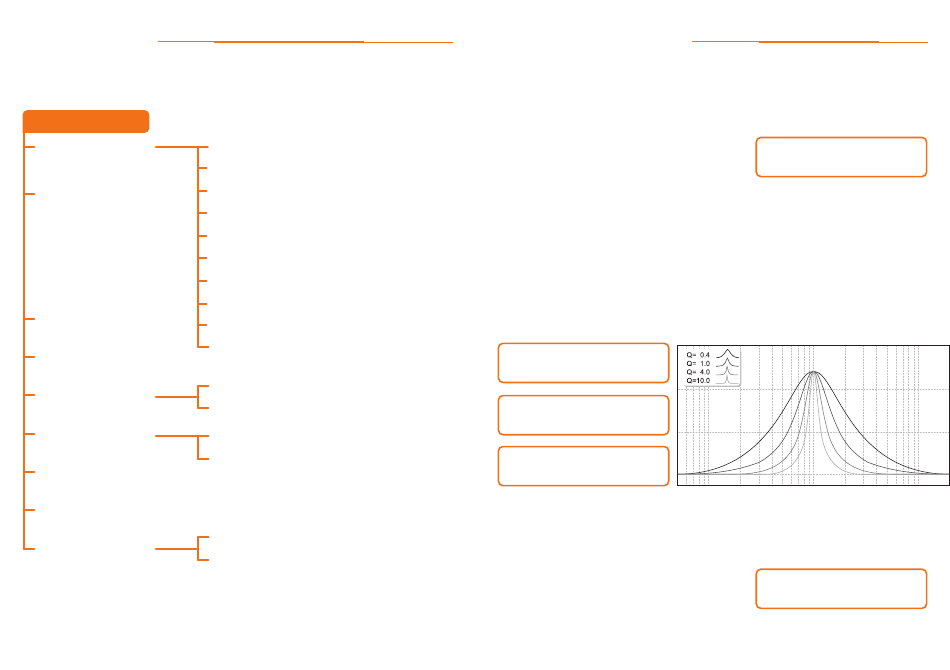

Find the desired configuration from the illustration below with all configurations
and processor features:
Main Menu
Audio Processing
Graphic Equalizer
Presets
Save
Load
Security
Tools
Screensaver
Language
Sequencer
Graphic Input Equalizer
Parametric Input Equalizer
Parametric Output Equalizer
Routing Audio
Crossover
Delay
Phase
Limiter
Gain
Mute
Lock/Unlock
Charge Password
Tone Generator
Frequency Sweep
Time
ON/OFF
6

Processor features

• Graphic Input Equalizer
The input graphic equalizer has 15 bands, allowing a variation of ± 12 dB per
band, with a pitch of 0.1 dB, with frequencies equally spaced in 2/3 octave, in
the range of 25 to 16 kHz in accordance with
ISO requirements . The graphic equalizer
acts on the two inputs simultaneously.
• Parametric Input/Output Equalizer
The parametric equalizer allows you to choose a gain / attenuation at a specific
frequency, as well as the bandwidth of that equalizer by means of the Q factor,
the smaller the Q the greater the width of that equalization band, affecting to a
greater extent the neighboring frequencies .
The DSP 2.4X has 5 parametric equalizers distributed as follows, 1 for the inputs
and 4 for the outputs (1 for output).
PARAMETRIC EQ
freq.: 214 Hz
PARAMETRIC EQ
gain: +3.2 dB
PARAMETRIC EQ
Q: 1.4
• Input and Output Routing
The purpose of the routing option allows you select the audio source A, B
or A + B (sum) for each output. Turning the MAIN CONTROL dial moves the
audio source to the selected route. To
select another channel, quickly press the
corresponding HOTKEY.
GRAPHIC EQ
f: 63 Hz +2.6 dB
ROUTING
IN A+B ---> OUT1
