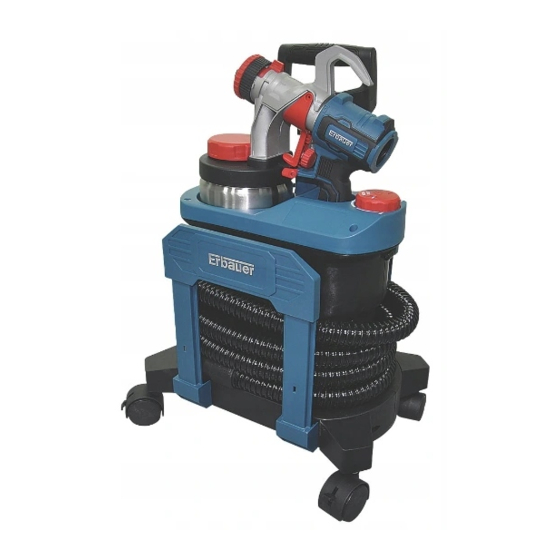

EPS800
EAN:
5059340043357

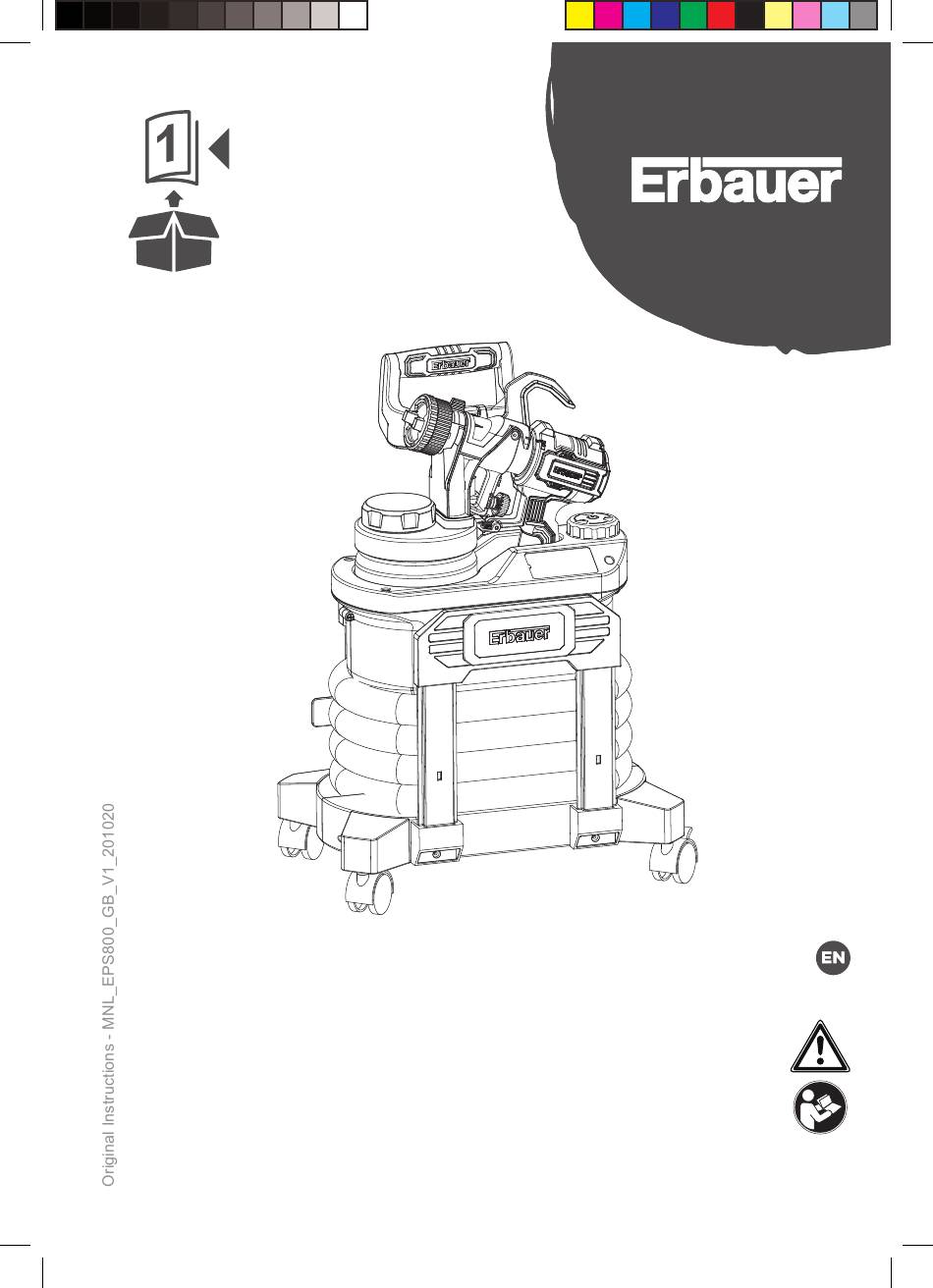

ORIGINAL INSTRUCTIONS
V11020 BX220IM
MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 1
10/20/20 5:03 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EPS800 and is the answer not in the manual?

Questions and answers

Related Manuals for Erbauer EPS800

Summary of Contents for Erbauer EPS800

  • Page 1 EPS800 EAN: 5059340043357 ORIGINAL INSTRUCTIONS V11020 BX220IM MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 1 10/20/20 5:03 PM...
  • Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 2 10/20/20 5:03 PM...
  • Page 3 Safety instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 4 b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
  • Page 5 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times.
  • Page 6 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation.
  • Page 7 c) Do not spray any material where the hazard is not known. Unknown materials can create hazardous conditions. d) Use appropriate personal protective equipment, such as dust masks or respirators, safety goggles, protective gloves and ear protection when spraying or handling chemicals. Wearing protective equipment for the appropriate conditions reduces the exposure to hazardous substances.
  • Page 8 n) Never manipulate the product and always use the safety and/or protective guards on the product to avoid risks. o) Risk of injury: Do not direct the product towards people or animals. p) Never smoke during the paint process. q) Always ensure sufficient circulation of fresh air. r) Never use paint containing lead.
  • Page 9 WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used: • How the materials are grinded, cut or drilled. • If the tool is in good condition and well maintained. •...
  • Page 10 WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 11 a) Only use the product as intended by its design and these instructions. b) Ensure that the product is in good condition and well maintained. c) Use correct attachments for the product and ensure they are in good condition. d) Keep tight grip on the handles/grip surface. e) Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
  • Page 12 Measures to take in the event of contact with chemicals Skin clean with plenty of water and soap, consult a contact: doctor if necessary Eye contact: rinse with plenty of water, consult a doctor Swallowing: do not vomit, consult a doctor Inhalation: fresh air, consult a doctor if necessary RESIDUAL RISKS...
  • Page 13 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 13 10/20/20 5:03 PM...
  • Page 14 Product description 5 6 7 12 13 21a 21 MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 14 10/20/20 5:03 PM...
  • Page 15 4 4d 5 6 MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 15 10/20/20 5:03 PM...
  • Page 16 MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 16 10/20/20 5:03 PM...
  • Page 17 27d-i 27d-ii 27d-iii 27d-iV 27d-V MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 17 10/20/20 5:03 PM...
  • Page 18 MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 18 10/20/20 5:03 PM...
  • Page 19 Part index The index below refers to Fig. 1 on page 4. 1. Air cap adjusting cover a) Slot* (x2) a) Slot* (x2) b) Indication arrow* 2. Union nut 20. Air hose bracket (x2) 3. Air cap a) Wheel compartment* (x4) a) Anchor (x2) b) Cord holder* (x2) b) Spigot (x2)
  • Page 20 NOTE: Parts marked with * are not shown in this overview. Please refer to the respective section in the instruction manual. Symbols the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage) Millimetre Hertz...
  • Page 21 This product is of protection class II. That means it is equipped with enhanced or double insulation Do not expose the product to rain or wet conditions. Open flames in the work area, around the product and in the vicinity of flammable materials are prohibited! Do not smoke in the work area, around the product and in the vicinity of flammable materials!
  • Page 22 Proper measures include among others regular maintenance and care of the product and accessories, keeping hands warm, periodical breaks and proper planning of work processes. Rating label explanation EPS800 = Model number E = Erbauer PS = Paint Sprayer 800 = Rated input (W) MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 22...
  • Page 23 Assembly Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage, do not use the product but contact your dealer.
  • Page 24 Setting up Wheels 1. Attach the front wheels (22) to the front wheel compartments (20a) until an audible click is heard and ensure that the two front wheel latches (22a) are correctly engaged (Fig. A). 2. Attach the rear wheels (24) to the rear wheel compartments (20a) until an audible click is heard and ensure that the two rear wheel latches (24a) are correctly engaged (Fig.
  • Page 25 4. The handle (25) is now assembled. Air hose 1. This product is supplied with an air hose (13). It is locked in position by two air hose brackets (20) for the safety of transportation. Remove the air hose (13) before assembly and operation.
  • Page 26 Connection to power supply 1. Make sure the rotatable On/Off switch (18) is not pressed down. 2. Connect the power cord plug (21) with a suitable socket. WARNING! Check the voltage! The voltage must comply with the information on the rating label! 3.
  • Page 27 Controls Rotatable On/Off switch (Figs. J, K) 1. Press down the rotatable On/Off switch (18) to switch the product on and press again to switch the product off (Fig. J). 2. Turn rotatable On/Off switch (18) clockwise to increase the spray pressure and anti-clockwise to decrease the spray pressure as indicated by indication line (18a) (Fig.
  • Page 28 Operation 1. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that the accessories and attachments are properly fixed. 3.
  • Page 29 2. Make a few strokes on a cardboard test area to test the consistency of the material being applied. If material still appears too thick, add a small amount of thinner. Do not exceed paint manufacturer’s thinning recommendations. 3. Keep the spray nozzle (4) about 10 to 30 cm from the work surface. Move the spray gun keeping perpendicular with spraying area (Fig.
  • Page 30 Care & maintenance WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! Clean 1. Clean the product with a dry cloth. Use a brush for areas that are hard to reach. 2.
  • Page 31 4. Pour out all the remaining paint into another container to empty the paint container (27). Thoroughly clean the paint container (27) with suitable cleaning agent, which does not contain oil. 5. Gradually fill cleaning agent into the paint container (27), switch the product on and squeeze the switch trigger (8), spray it through the spray head (6) until the cleaning agent exits as a clear, transparent mist.
  • Page 32 Air filter (Fig. T) This product is supplied with an air filter (23a). Inspect the air filter (23a) regularly. Replace it with a new one if necessary. 1. The air filter cover (23b) is located at the bottom of appliance. Disengage the three latches (23c) and remove the air filter cover (23b) (Fig.
  • Page 33 7 AMP fuse Connect approved to Blue to BS 1362 N(Neutral) Brown L(Live) Outer sleeve Cable grip firmly clamped WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E. Only fit an approved 7 Amp BS 1363 or BS 1363/A plug and the correctly rated fuse. If in doubt, consult a qualified electrician.
  • Page 34 Transportation 1. Switch the product off and disconnect it from the power supply 2. Wrap the power cord (21) onto the cord holders (20b) of the air hose bracket (20) and secure it with the cord clip (21a) (Fig. U). 3.
  • Page 35 Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! Problem...
  • Page 36 4. Paint pattern 4.1 Spray nozzle loose or 4.1 Tighten spray nozzle or curvy worn replace 4.2 Spray nozzle / nozzle 4.2 Clean or replace spray needle plugged up nozzle / needle 5. Irregular paint 5.1 Spray nozzle / needle 5.1 Clean or replace spray pattern plugged up...
  • Page 37 Guarantee we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. We carry out stringent testing procedures on all our tools and are confident that they can provide regular, sustained daily use during the period covered. That’s why we offer a 3 year guarantee against manufacturing defects on our power tool products.
  • Page 38 (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARAȚIA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE HVLP Pistolet natryskowy/800W HVLP Pulverizator pentru vopsire/ EPS800 MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 38 10/20/20 5:03 PM...
  • Page 39 Product/Produit/Produkt/ Model/Modèle/ Produsul/ Producto/ Produto Model/Modelul/ Modelo/ Modelo 800W HVLP Paint Sprayer/800W EPS800 5059340043357 5059340043364 800W HVLP Pistolet natryskowy/ 800W HVLP Pulverizator pentru vopsire/800W HVLP Rociador de pintura/ 800W HVLP Pulverizador MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 38 10/20/20 5:03 PM...
  • Page 40 &(EU)2015/863 substances dangereuses dans les équipements électriques et électroniques 2006/42/WE w zmienionej dyrektywie maszynowej 2014/30 / UE ze zmianami Dyrektywa Kompatybilność elektromagnetyczna 2011/65 / UE& (EU) 2015/863 ze zmianami Dyrektywa Ograniczenie stosowania niektórych niebezpiecznych substancji w sprzęcie elektrycznym i elektronicznym substanțe periculoase în echipamentele electrice și electronice peligrosas en equipos eléctricos y electrónicos certas substâncias perigosas em equipamentos elétricos e eletrónicos...
  • Page 41 fechas de las normas, o referencias a las otras especificaciones técnicas, incluidas las fechas de las especificaciones, respecto a las cuales se declara la conformidad: data da norma, ou às outras especificações técnicas, incluindo a data da especificação, em relação às quais é declarada a conformidade: EN 60745-1:2009+A11:2010 EN 50580:2012+A1:2013 EN 55014-1: 2017...
  • Page 42 Manufacturer,Fabricant,Producent, Produc ător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam www.diy.com  www.screwfix.com To view instruction manuals online, visit www.kingfisher.com/products MNL_Erbauer_GB_EPS800_800W paint sprayer_V1_201020.indd 39 10/20/20 5:03 PM...
