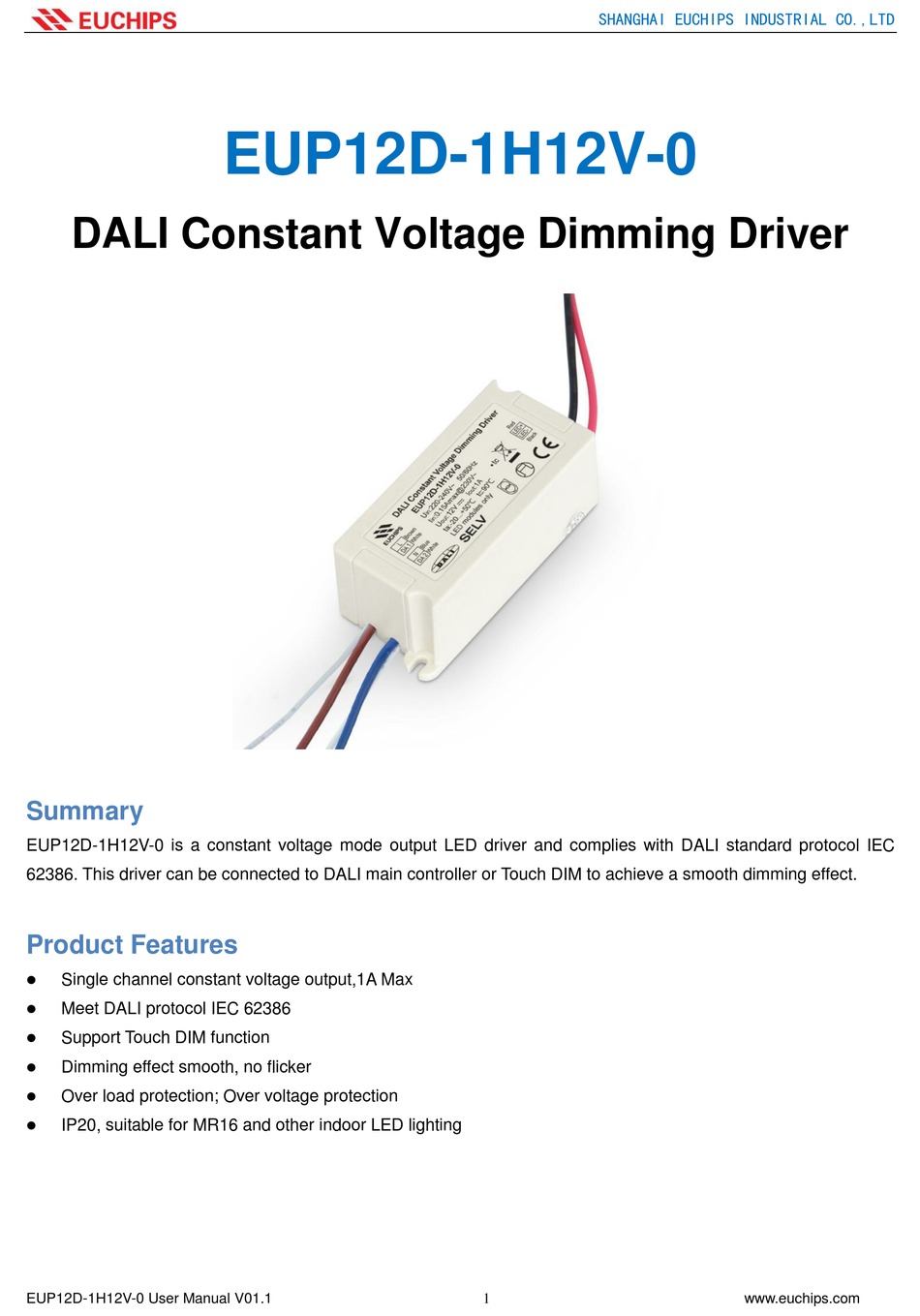

EUCHIPS EUP12D-1H12V-0 User Manual

Dali constant voltage dimming driver

DALI Constant Voltage Dimming Driver

Summary

EUP12D-1H12V-0 is a constant voltage mode output LED driver and complies with DALI standard protocol IEC

62386. This driver can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.



Single channel constant voltage output,1A Max



Meet DALI protocol IEC 62386



Support Touch DIM function



Dimming effect smooth, no flicker



Over load protection; Over voltage protection



IP20, suitable for MR16 and other indoor LED lighting

EUP12D-1H12V-0 User Manual V01.1

EUP12D-1H12V-0

SHANGHAI EUCHIPS INDUSTRIAL CO.,LTD

www.euchips.com

Table of Contents

Do you have a question about the EUP12D-1H12V-0 and is the answer not in the manual?

Page 1 DALI Constant Voltage Dimming Driver Summary EUP12D-1H12V-0 is a constant voltage mode output LED driver and complies with DALI standard protocol IEC 62386. This driver can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Page 2 Shut down the output, recovers automatically when temp. back Over temperature to normal. Function Dimming mode DALI, Touch DIM Dimension 78*36*29 mm（L*W*H） Others IP rating IP20 Working temp. -20℃ ~ 50℃ Relative humidity 20~90% RH Dimension (mm) EUP12D-1H12V-0 User Manual V01.1 www.euchips.com...
Page 3 2. Long press the Touch DIM switch (>0.5s) to dim the brightness of light. The dimming direction will change every time after pressing switch. 3. Double-click the Touch DIM switch (<0.3s), then all lamps connected on the device will be set maximum EUP12D-1H12V-0 User Manual V01.1 www.euchips.com...
Page 4 7. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights. 8. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself. EUP12D-1H12V-0 User Manual V01.1 www.euchips.com...
