1.

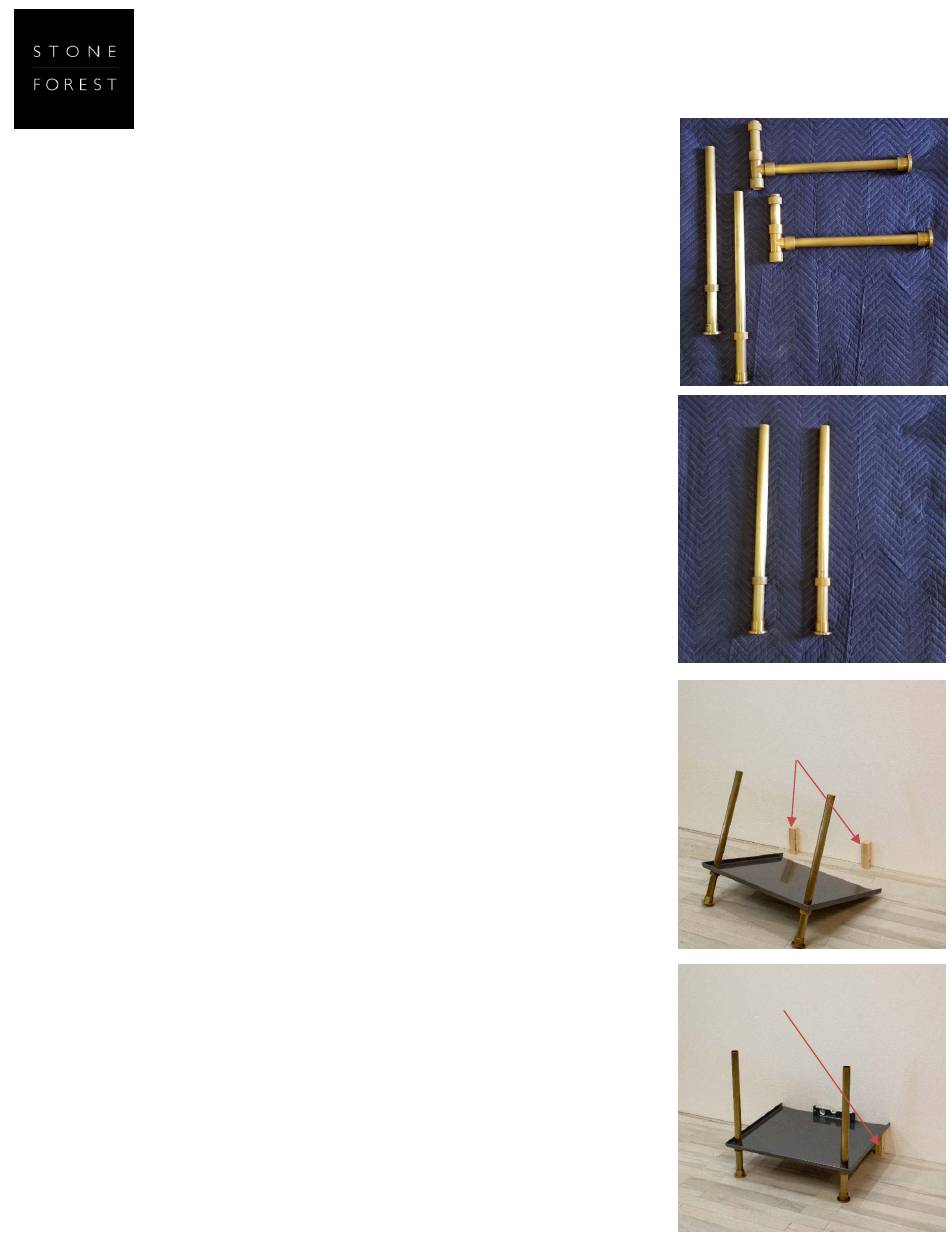

Using white gloves provided, carefully layout all brass or nickel fittings
on a protected surface. Some assembly will be required using the
included allen wrench.
2.
Start with the front legs. These come pre‐assembled with the bottom collars
set to support the metal tray 8" from the ground. The height of the collars can
be adjusted using the set screw to suit desired design and space. If they are
moved, the included wood block spacers will no longer be accurate.
3.
Carefully slide the legs through the metal tray unit from the bottom.
We've included 2pcs of 2x2" wood cut to 8" to help with the initial location
of the drawer on the wall.
4.
Move the tray and legs into position. Level the back edge of the metal tray.
Once level, use the supplied screws (and anchors if needed) to attach
the tray to the wall. Once the back is anchored to the wall, you can twist the
front feet to help level front to back.
PFS-TD-24-xx-MT
PFS-TD-36-xx-MT
(formerly PFS-TDTRY-24)
(formerly PFS-TDTRY-36)
supplied 2x2"s
supplied 2x2" (1 of 2)
