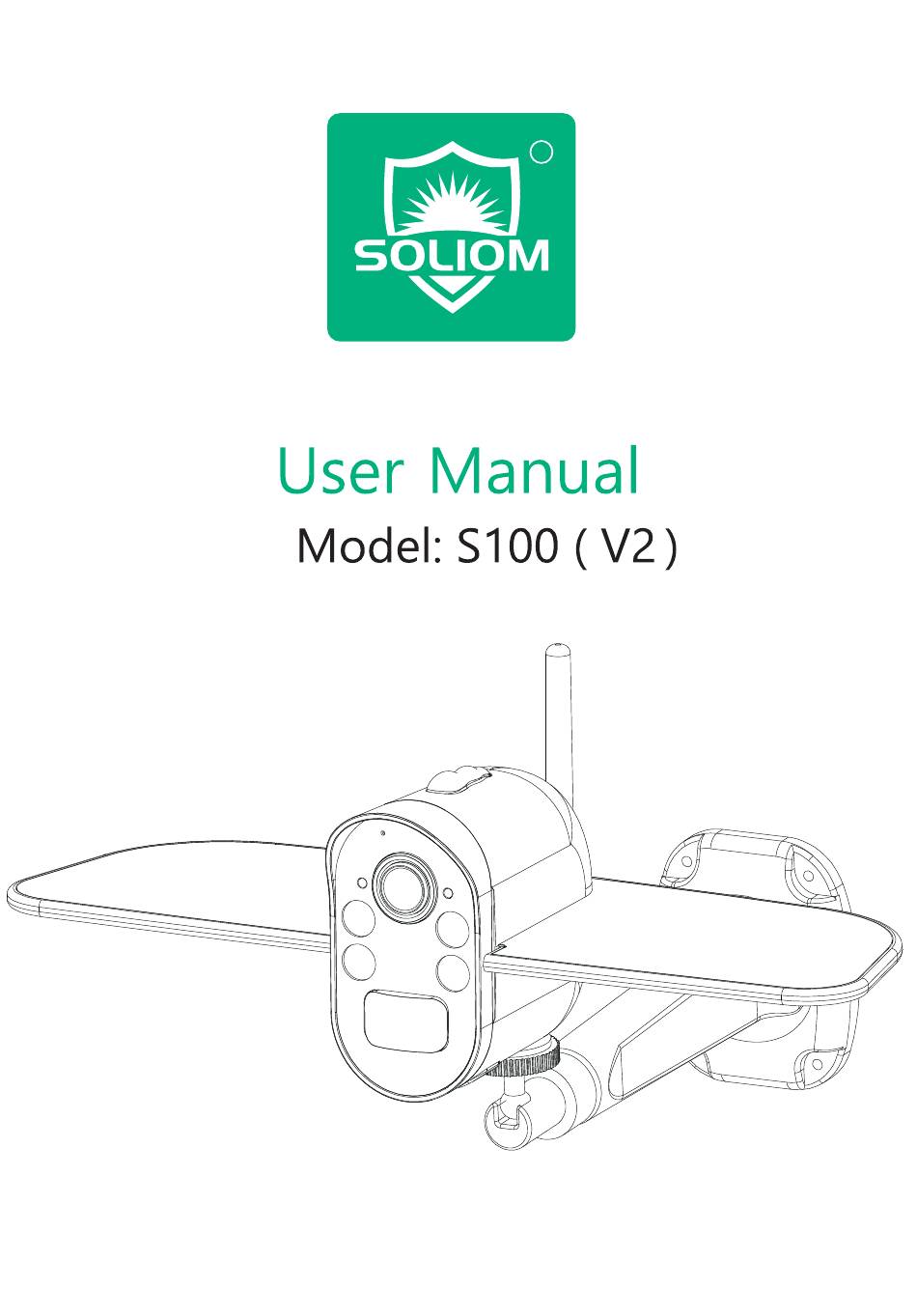

- Page 1 Outdoor Wireless Solar Camera...
-
Page 2: Warranty Service
Thanks for purchasing from Soliom. Having issues with your Soliom cameras? contact us Please through either ways below. Soliom care team staffs would offer you a best 24 hours solution to solve any problems within Register via below link to get 2 Years Extended Warranty https://soliom.net/pages/product-registration... - Page 3 8-14 .15-16 .17-24 Part 5: How to Save and Delete Videos.......25 Part 6: More Settings............26- 27...
-
Page 4: Very Important Tips

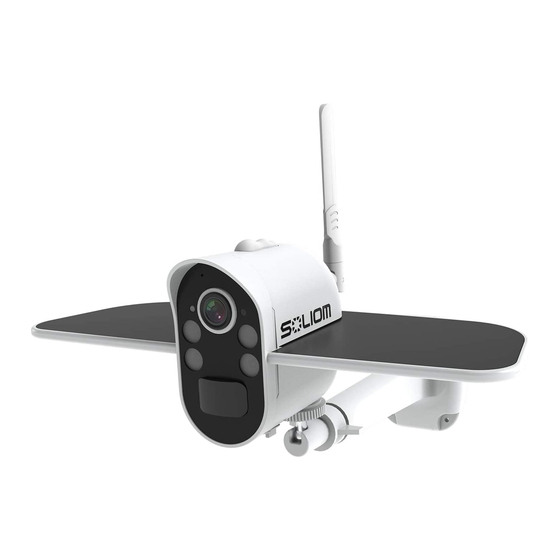

Very Important Tips 1. Soliom camera can only be set up with 2.4g Wi-Fi network. (It's ok to use Cell phone 4G data to live viewing it after the camera was set up with 2.4g Wi-Fi network firstly.) 2. You may possibly need a Wi-Fi extender if your Wi-Fi signal is weak around the yard where you want to install it. - Page 5 Antenna White LED Solar Panel Bracket Silicone flap Bottom Reset Power switch SD Slot Speaker...
-
Page 6: Before Installation
Before Installation Charging Your Camera Please charge the camera about 10 hours by plugging it into a power source using the provided USB cable. After connecting the camera with App, the App will indicate the battery status. (There's no indicator to show charging status from the camera) uncover silicone flap Insert SD card... - Page 7 Before Installation Note: After installed your micro SD card, pls match and tighten the silicone flap exactly to avoid leakage of rain water. 4*Expansion Screws...
- Page 8 Google Play store or App store to download the soliom+ App. Allow"SOLIOM+" use mobile cellular data and wireless LAN, otherwise it may be failed to add S100 camera. Allow "SOLIOM+" to get system push message and location permissions...
- Page 9 (1) Open the app and register your account with your Email address and it is recommended to verify your account from email so that you can retrieve password of your Soliom account in case. (2) Set a password for your account and make note to remember it.
- Page 10 In-App Setup 4. Connect your phone to 2.4Ghz wifi first. Only work with 802.11 b/g/n frequency band 2.4G Wi-Fi . Not work with 802.11 ac or ax 5G or higher frequency band. (It's ok to use Cell phone 4G data to live viewing it after the camera was Paired up with 2.4g Wi-Fi network firstly.) 5.Install the antenna and point the antenna to the sky, antenna is not waterproof downward.
- Page 11 Otherwise please check your wi-fi list from your devices and you have to turn on the location services for the Soliom+. Note: If the camera LED doesn’t blink blue, which means the camera is not in ready to pair condition.
- Page 12 Click the icon to double confirm the password you entered correct Method 1: QR code configuration 1.1 Click the “QR code configuration”, hold the QR code in front of the S100 camera, and then you will hear the following voice “Pairing Information Received”.
- Page 13 In-App Setup Method 2: Sound wave configuration 2.1 Enter into the “search device” page, make sure to turn up you phone’s volume to the Maximum, you will hear the following voice : “Pairing Information Received”. 3) You have connected the device to the App successfully. Choose a name of the devices from the drop-down choice, or you can modify one that you want, and then select the area where device is located.(you have to choose one or...
- Page 14 In-App Setup 4) Congratulations! You have connected your camera to the App successfully, now you can live view the camera on your phone anytime and anywhere. If you're unable to pair the camera,Please check below suggestions: 1.Make sure your phone is connected with your 2.4G Wi-Fi. When your 2.4g Wi-Fi connected correctly to your phone,your Wi-Fi name will be recognized by the camera and pop-up on the Wi-Fi input page automatically.
- Page 15 You can Customize the permissions and turn on or off every permission as you wish by clicking the blue icon"permissions" Note: Please let the invited user to register a Soliom+ account using their email first and then start to share according to the instructions above.
-
Page 16: Night Vision Mode
In-App Setup 9.How to unbind your camera Please do not forget to unbind your camera from your App when you plan to return the camera, to avoid any personal information disclosure risk. And unbind your camera as following steps, click" "... - Page 17 10 seconds defaulted and free for 30 days. And you have to pay for the service per month or other cloud service. You can choose a service from the soliom+ provided to purchase. How to change cloud video length: Go to live view mode and find “Device setting”...
-
Page 18: Physical Installation
Physical Installation Check your camera signal strength If not satisfied with video smoothness, Check in App and signal strength in App is not strong, we would suggest adding wifi extender between the Router and the camera. Camera WiFi extender Router Recommended height to install the camera We suggest installing the camera about 8ft. -
Page 19: Technical Specifications
Technical Specifications Image Quality Resolution 1080P Specifications Lens Lens angle FOV 155° H.264+ Video Video format Specifications SD card support 8GB-Max 64GB Output Built-in speaker Audio Intput Built-in microphone Communications WiFi 802.11 b/g/n frequency band 2.4G Wi-Fi Battery capacity 8700mAh Max 12 months Standby time Battery... - Page 20 Detailed App Instructions 1.click ,you could live viewing videos. 2019-12-27 15:00:36 2019-12-27 15:00:36 2019-12-27 15:00:36 Online Online Online...
- Page 21 Tips: Please make sure your camera and then reinstall it to the camera body. Or has a full bar of wifi strength to contact Soliom support team for a replacement ensure a smooth live view speed. at care@soliom.net All friendly customer (A wifi...
- Page 22 Detailed App Instructions Setting: Click to enter into device settings. ( Check page 20-24 for more details) 2019-12-27 15:00:36 Online Click the icon to switch to full screen play Cloud storage: Click to switch playback videos saved in cloud storage or micro sd card. Manual Recording: Click to manually record and the videos will be saved to...
- Page 23 Detailed App Instructions SD Card Setting 1) Please turn on the cloud storage so that you can sync the camera time with your phone. Note: We suggest you to format the SD card to FAT32 in your app for the first use. 2019-12-27 15:00:36 Online Image flip...
- Page 24 Detailed App Instructions Scene mode You can choose to set it as Normal, back light compensation, night IR, High light compensation or Dynamic according to your actual light environment of installation place. 2019-12-27 15:00:36 Online Normal: Natural light at day time Backlight compensation: Increase the level of exposure and brighten the whole scene.
- Page 25 Detailed App Instructions 2019-12-27 15:00:36 Online Active time 1) This is the time you could set for the motion detection video length recorded to micro sd card and cloud storage. 2) Always: If you choose this option,you will not allow the camera enter into standby mode,the camera will keep recording all the time until battery drains out.
- Page 26 Detailed App Instructions LED indicator When you choose Enable, the Blue LED will light up to indicate when you operate the camera as it should be. When you choose Disabled, the Blue LED will not light up to indicate the operations or trigger motions.
- Page 27 Detailed App Instructions Device Name You can set a desired name for your camera. 2019-12-27 15:00:36 Online...
- Page 28 How to save and delete videos 1. Videos can be saved in Cloud Storage: (1). The videos of PIR activity You could save the videos of PIR activities in cloud storage, which can be used 30 days for free and then you have to pay for the services.
- Page 29 Note: 1)Each camera will be binded with one cloud storage service.(But not in account base) 2)If you would like to make a return for Soliom cameras,please send email to: care@soliom.net to refund your cloud fee. 2.My friends: Click it to Add a friend you want to share with your camera or check you shared account or shared with you camera list and make any permission modifications here.
