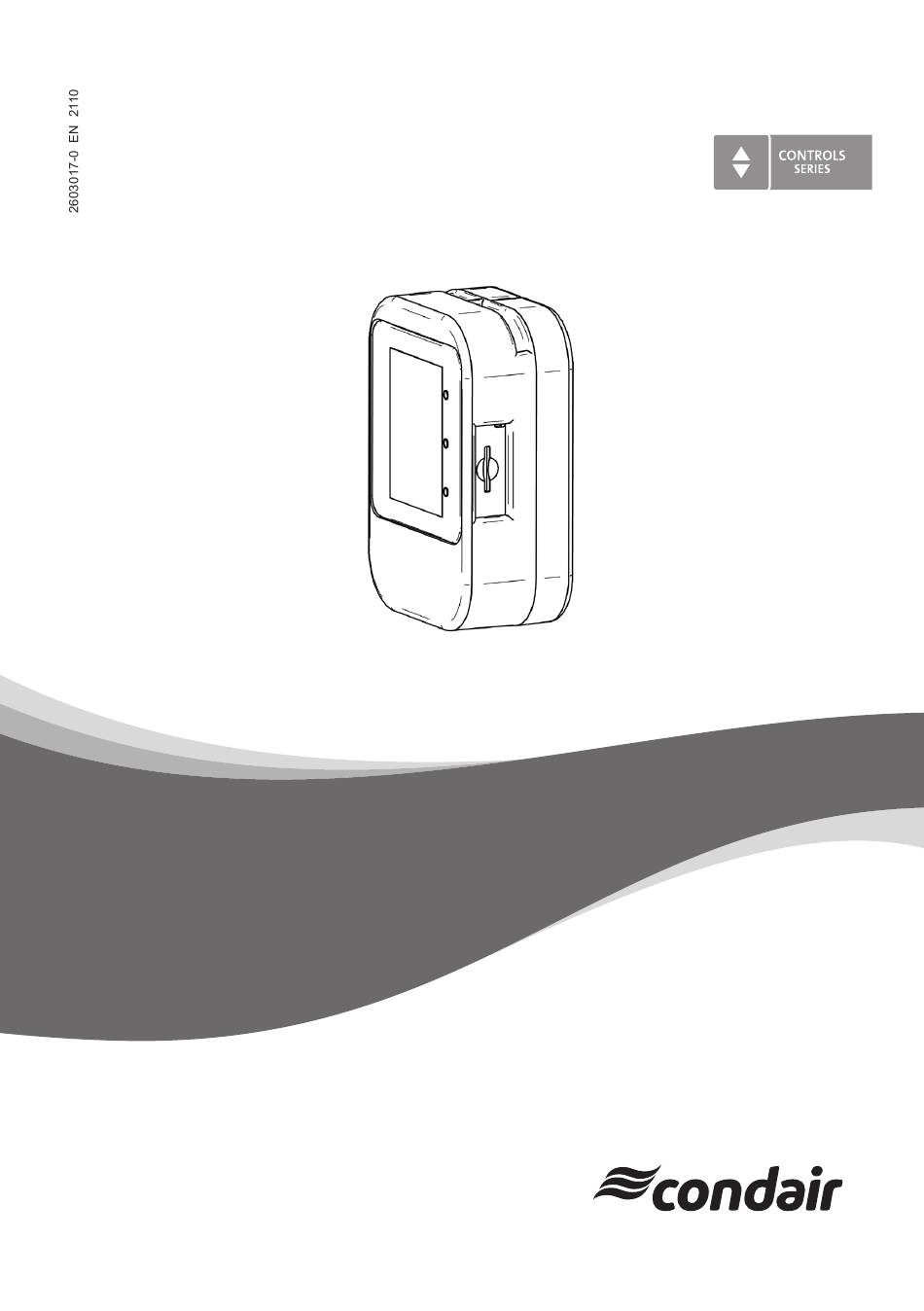

- Page 1 OPERATION MANUAL Air Quality Measuring Device Condair Cube...
- Page 2 This document and the information disclosed herein are proprietary data of Condair Group AG. Neither this document, nor the information contained herein shall be reproduced, used, or disclosed to others without the written authorisation of Condair Group AG, except to the extent required for installation or maintenance of recipient's equipment.
-
Page 3: Table Of Contents
Contents Introduction Thank you for purchasing your Condair Cube Notes on the operation manual For your safety Quickstart Product overview Components Main screen view 4.2.1 Traffic light display of the measured values Application overviews 4.3.1 View health chart 4.3.2 View historical readings 4.3.3 Settings... -
Page 4: Introduction
The Condair Cube incorporates the latest technical advances and meets all rec- ognized safety standards. Nevertheless, improper use of the Condair Cube may result in danger to the user or third parties. Further, Condair shall not be liable for any incorrect readings and any damage resulting therefrom. -
Page 5: For Your Safety
Every person operating the Condair Cube must have read and understood these instructions before use. Knowledge of the contents of this manual for the Condair Cube is a basic require- ment for protecting against any kind of danger, to prevent faulty installations, and to operate the Condair Cube safely and correctly. -
Page 6: Quickstart
The Cube must be placed as shown in the figure below, so that the sensor on the back of the Cube is reached by the room air and the excess heat can escape through the ventilation slots. -
Page 7: Product Overview
Product overview Components – 1 housing from 2 parts – Display with rechargeable battery (M5core2) – Sensor (Sensirion SCD40) – USB charging cable – Optional Micro SD card (not included in delivery) Ventilation slots Button1 LED (green) Button 2 Slot for Micro SD card Display Sensor Housing... -
Page 8: Main Screen View
Main screen view Battery status Time 10:15 Date 21.08.2021 value 1092 Temperature value Humidity value °C °C Menu Time/Date: Shows the current time and date. Battery status: Shows the current state of charge of the battery. The display ranges from 0-100 %. value: Displays the current CO content in the air. -
Page 9: Traffic Light Display Of The Measured Values
4.2.1 Traffic light display of the measured values The circles around the values show the current state of the value in the manner of a traffic light system: Green – Healthy (Everything in the optimal range) Yellow – Acceptable (Caution: Need for action) – Critical (Critical readings) Green circle: content of the ambient air is optimal. -
Page 10: Application Overviews
Application overviews 4.3.1 View health chart 10:15 21.08.2021 display in bar format 1200 Currently measured value Range "healthy" Range "acceptable" Temperature 18°C 22°C 26°C Air humidity The range "healthy" represents the air quality, which provides increased health protection and is perceived as pleasant. The ranges "healthy, "acceptable"... -
Page 11: View Historical Readings
4.3.2 View historical readings 10:15 21.08.2021 Currently measured value °C °C Historical measured values This view shows the course of the measured room temperature over a maximum of 4 hours. For every 10 minutes of measurement, a bar is displayed which shows the average value measured. -
Page 12: Calibration
Calibration For accurate measurement results of the CO2 content, the Condair Cube must be calibrated regularly. Two different calibration options are available: – Auto calibration – Manual calibration Manual Calibration To calibrate the sensor manually, proceed as follows: Menu → Settings → Calibration CO 10:15 21.08.2021... - Page 13 If the value is above or below this, repeat the calibration. Important: The sensor must be calibrated during the first start-up. Also, if you place the Cube in a new geographical location, it must be recalibrated for accurate measurement results. Calibration...
-
Page 14: Auto Calibration
Menu → Settings → Calibration CO Auto calibration Enable or disable auto calibration If the Condair Cube is not operated permanently, it is recommended to deactivate the auto calibration and to perform a manual calibration when using the Condair Cube. 10:15 21.08.2021... -
Page 15: Time And Date Setting
Time and date setting The Condair Cube has an internal RTC (RealTimeClock) which is used for the time and date display. Time and date run for approx. 2 months when the unit is switched off and without charging the Cube. Afterwards, both must be reset. - Page 16 Enter the desired date in the next screen. The date format is defined as follows: dd:mm:yy (Day:Month:Year) 10:15 21.08.2021 Confirm the entry with "Ok" to complete the date entry. Time and date setting...
-
Page 17: Options
5V USB connection. Display on large screen It is possible to connect the Condair Cube to an external monitor via a PC. To do this, connect the Condair Cube to the PC via the USB cable and install the necessary drivers. -
Page 18: Scope Of Delivery
Scope of delivery – Condair Cube – USB charging cable – Quick guide Scope of delivery... -
Page 19: Disposal/Recycling
Components no longer in use cannot be disposed in domestic waste. Please dispose of the individual components in accordance with local regulations at the authorised collecting point. If you have any questions, please contact the responsible authority or your local Condair representative. Thank you for your contribution to environmental protection. Disposal/Recycling... -
Page 20: Product Specification
Product specification 10.1 Technical data Sensirion SCD40 10.1.1 CO Sensing Performance Default conditions of 25 °C, 50 % RH, ambient pressure 1013 mbar, default pe- riodic measurement and 3.3 V supply voltage apply to values in the table below, unless otherwise stated. Parameter Conditions Value... -
Page 21: Appendix
Appendix 11.1 CE declaration of conformity Konformitätserklärung Declaration of conformity Déclaration de conformité Wir, Nous, Condair Group AG Condair Group AG Condair Group AG CH-8808 Pfäffikon SZ CH-8808 Pfäffikon SZ CH-8808 Pfäffikon SZ erklären in alleiniger Verantwortung, declare under our sole responsibility, that déclarons sous notre seule... - Page 22 Notes...
- Page 24 CONSULTING, SALES AND SERVICE: CH94/0002.00 Condair Group AG Gwattstrasse 17, 8808 Pfäffikon SZ, Switzerland Phone +41 55 416 61 11, Fax +41 55 588 00 07 info@condair.com, www.condairgroup.com...
