Summary of Contents for Amplicomms TV3500

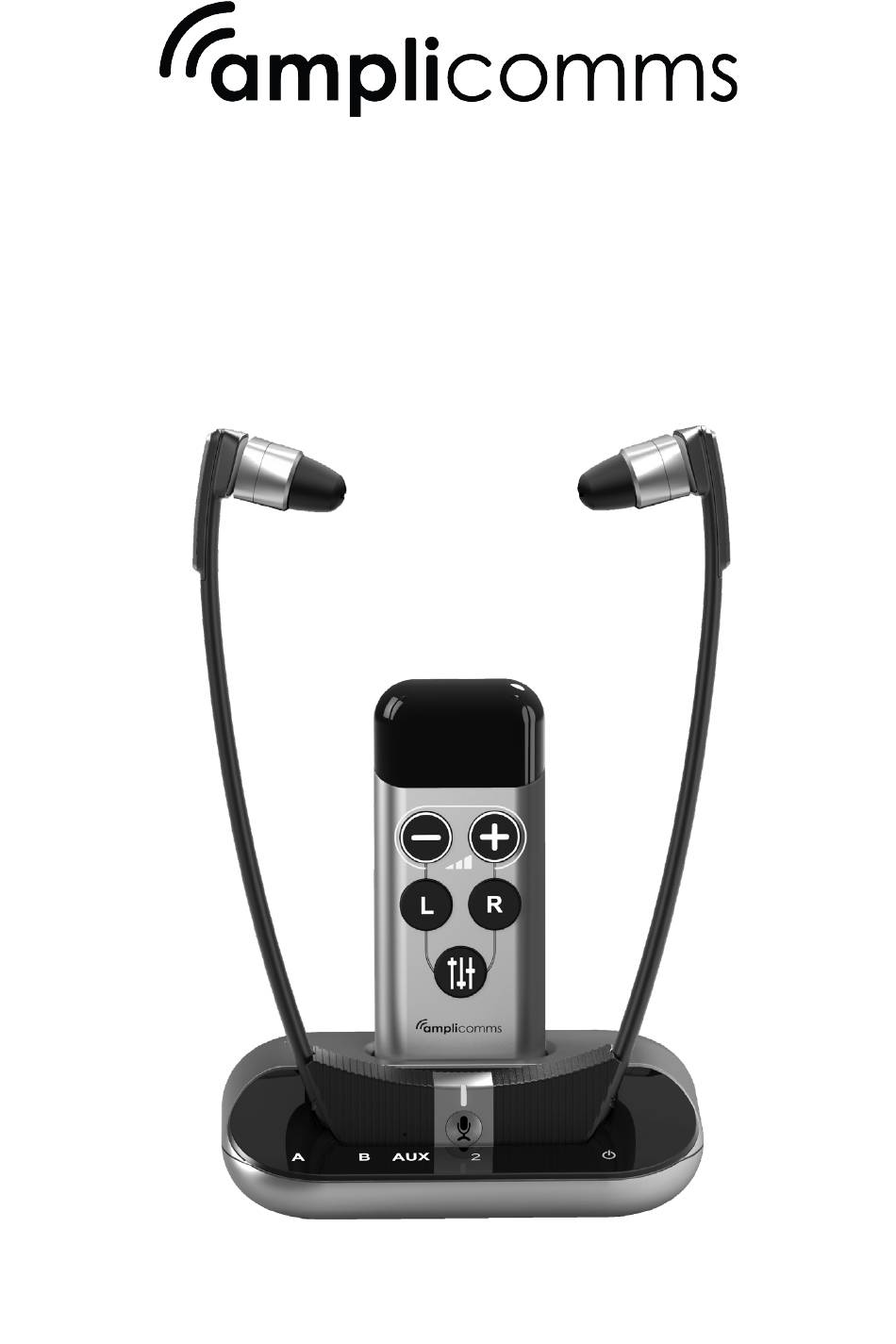

- Page 1 TV3500...
-
Page 2: Table Of Contents
Conformity ------------------------------------------------------------------14 Thank you for having purchased the Amplicomms TV3500! Amplicomms TV3500 enables to listen to a TV or HiFi device with a headset, using cordless transmission. If you use hearing aids, you need to remove them before using the headset. -
Page 3: Getting Start

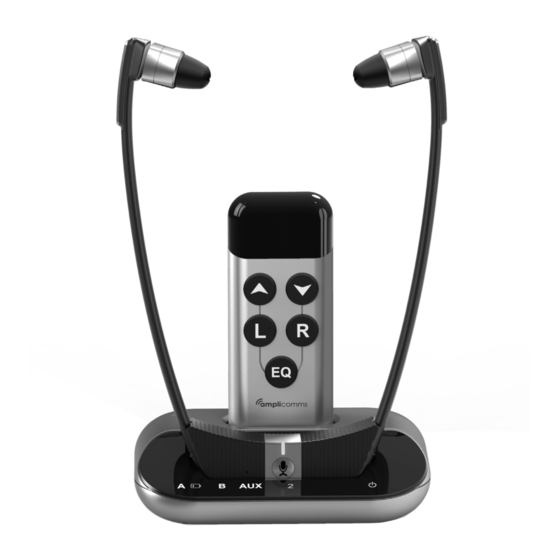

Getting Start Box contents • 1 headset with rubber ear buds size “S“ (small) • 1 additional pair of rubber ear buds size “L“ (large) • 1 base • 1 infrared remote control • 1 power adapter for the base •... -
Page 4: Description Of Base
Description of base Base top view 1. Charging cradle 2. Power LED indicator 3. Input LED indicator ( 3 = Microphone, 2 = Analog input, 1 = Optical input/ TOSLINK ) 4. Battery low LED indicator 5. Microphone hole 6. Remote control support Base rear view 7. -
Page 5: Description Of Remote Control
Description of remote control 1. Volume control 2. Headset left/right balance 3. Equalizer ( Sound Clarity mode ) How to install Amplicomms TV3500 Connecting the base 1. Connect the power adapter to the DC input socket located on the base rear panel. -
Page 6: Base Set
3.a. Using the analog audio cable. Connect one side of the analog cable to the base and the other side to the analog audio output TV/Hifi socket. You may have to purchase adaptor plugs if your TV/Hifi output socket has no 3.5mm audio output (see drawings below). Then on the base, move the switch (AUX) on position 2 = Analog input. -
Page 7: Changing The Rubber Ear Buds
Base set up Charge the headset for about 2 hours and 30 minutes before first use. Place the headset on the charging cradle of the base. The headset LED indicator will be red and will turn to purple when the battery is fully charged. •... -
Page 8: Operation
Operation Important: Hearing damage due to high volumes! This headset allows you to set higher volumes than conventional headset (up to 125 dB!). This can cause hearing damage for persons with healthy hearing and especially children. • Do not continuously expose yourself to high volumes. 1. -
Page 9: Select Audio Profile (Equalizer)
Confirmation Tone There is a “beep” tone as confirmation for every effective key press on TV3500 remote control. Some special tone will be used for below listed case: 1. 2 beeps will be heard when the volume level is reaching the maximum or minimum. -
Page 10: Troubleshooting
Troubleshooting No sound - Ensure that the mains adapter is fully pushed into the power outlet and that its cable is properly connected to the DC IN connector on the base. - Ensure that the headset ON. Either red or blue LED is steady on. - The charge level of the headset battery may be too low. - Page 11 • Furniture polish, over time, may disintegrate the rubber feet of the base which may stain your furniture. To avoid a potential stain, you may want to place the base on a pad or mat. • This listener allows you to amplify sounds to a loud volume, but listening to earphones at a high volume over an extended period of time may damage your hearing;...
-
Page 12: Technical Data
Weight Base: 150 g Warranty Please read carefully the user guide included in this box. TV3500 is an approved equipment in accordance with the European regulations, attested by the CE marking. The product you just bought is a technological product, it must be handled with care. - Page 13 whichever is the earlier greater than ninety (90) days, it being specified that any period of immobilization of the Product of at least seven (7) days will be added to the warranty period remaining to run. This warranty does not apply in the following cases: •...
-
Page 14: Environment
Environment This symbol means that your inoperative appliance must be collected separately and not mixed with the household waste. Help us preserve the environment in which we live! Conformity The logo printed on the products indicates the conformity with all essential requirements ( FCC Part 15B and 15 D). - Page 15 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2.
