lumishore SUPRA SY225 Installation And Operating Instructions Manual

SUPRA Mains Driver Integrated System
SUPRA Driver Installation and Operating Instructions
(Note: SUPRA Driver for use with SY 225, SY 250, SY 300,
Congratulations! You have purchased a LUMISHORE advanced technology underwater light. Every care has been taken
to ensure your LUMISHORE lights and drivers arrives in perfect condition, so please enjoy the ultimate experience in
underwater lighting.
LUMISHORE high intensity underwater lights are designed for those owners who prefer the integrity of a Weld-in instal-
lation in a light that employs the most powerful, e cient and cost e ective underwater LED lighting on the market
today. The LUMISHORE Weld-in lighting system is suitable for many sizes and types of watercraft, including Sports
Boats, Cruisers, Yachts and Super Yachts. LUMISHORE Weld-in LED lights come with a compact electronic driver module
to ensure trouble free operation for years to come.
Please read the following pages before attempting installation to ensure complete understanding of the
LUMISHORE LED lights.

BEFORE YOU START

• High Intensity LED light – Do not stare into the LED module at close proximity.
• Always ensure that the vessel's power source is disconnected or isolated prior to installation
• A quali ed professional should carry out both the electrical and mechanical installation. If in doubt please contact LUMISHORE.
refer to product support section
• The Driver supplies voltage and current to the Underwater lights.
connected directly to voltage
• Always use a suitable fuse or circuit breaker to protect the complete system. Each light to be individually fused.
• The light should be installed 6" - 10" (150-250mm) below the minimum load waterline.
• For best results install the lights between 2.5ft (0.8m) and 6.5ft (2m) apart.
• Never try to install or remove light with the vessel in the water.
• Lights should not be exposed to any temperatures in excess of 150°F (65°C). For example, next to hot engine components or
where exhaust emissions could be expelled onto the light while underwater

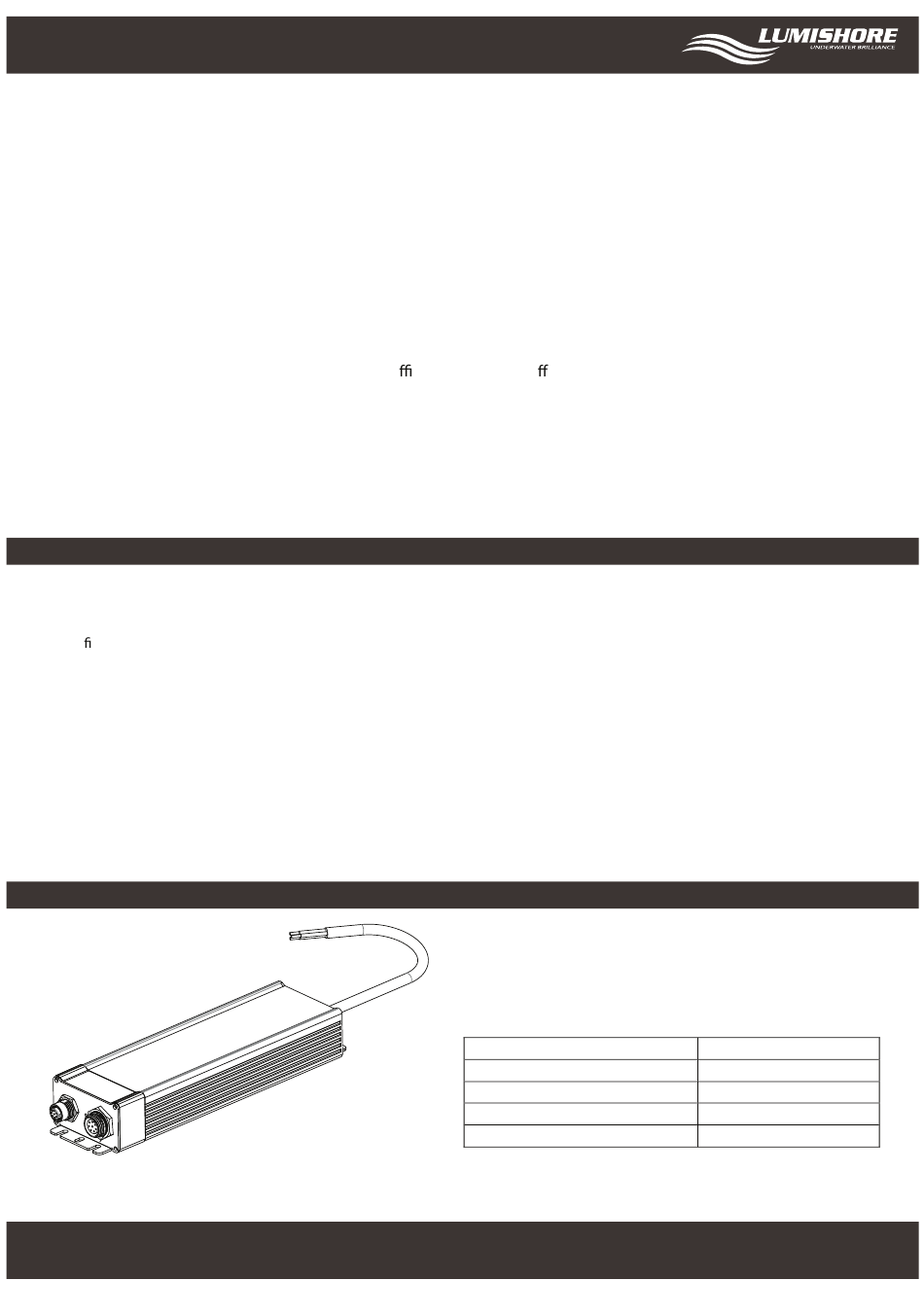

SUPPLIED PARTS

Lumishore UK Unit 2, Technium 1, Kings Road, Swansea, SA1 8PH, UK | +44(0)208 144 1694 | Info@Lumishore.com
Lumishore USA 7137 24TH Court East Sarasota, Florida 34243 | (941) 405-3302 | Sales@LumishoreUSA.com
SY310 and TRX 802 Lights)
Under no circumstances should the light cable be cut and
45-0079-Rev 5
SUPRA Mains Driver Part Numbers
Product
SY225
SY250
SY 300 / 310
TRX 802
No
39-0292
39-0167
39-0168
39-0170
1
