KNX Gateway DMX-Web K.DMXGW.01
Intended use
– Unidirectional data exchange between KNX and a DMX system
– Mounting on DIN rail to EN 60715
Product characteristics
The Gateway has two operating modes:
Operating mode "DMX master"
– Translation of KNX values into DMX data bytes
– Cyclic transmission of KNX values to the assigned DMX channels in the DMX bus with
250 kBit/s
– Control of RGB or RGBW luminaires via special logic modules
– Mapping of the functions switching (1-bit), relative dimming (4-bit) and absolute
dimming (1-byte)
– Master dimming object (1-byte) for channel groups
Operating mode "DMX slave"
– Reception of data bytes from the DMX bus
– Translation of the DMX data bytes into KNX values
Assignment between DMX channels and KNX group addresses is performed using a
table stored in the gateway. Assignment of the KNX group addresses and configuration of
the operating mode are performed using the Windows software DMX-Gate4 (or higher).
The current software as well as a detailed description of the commissioning can always
be found in the Internet.

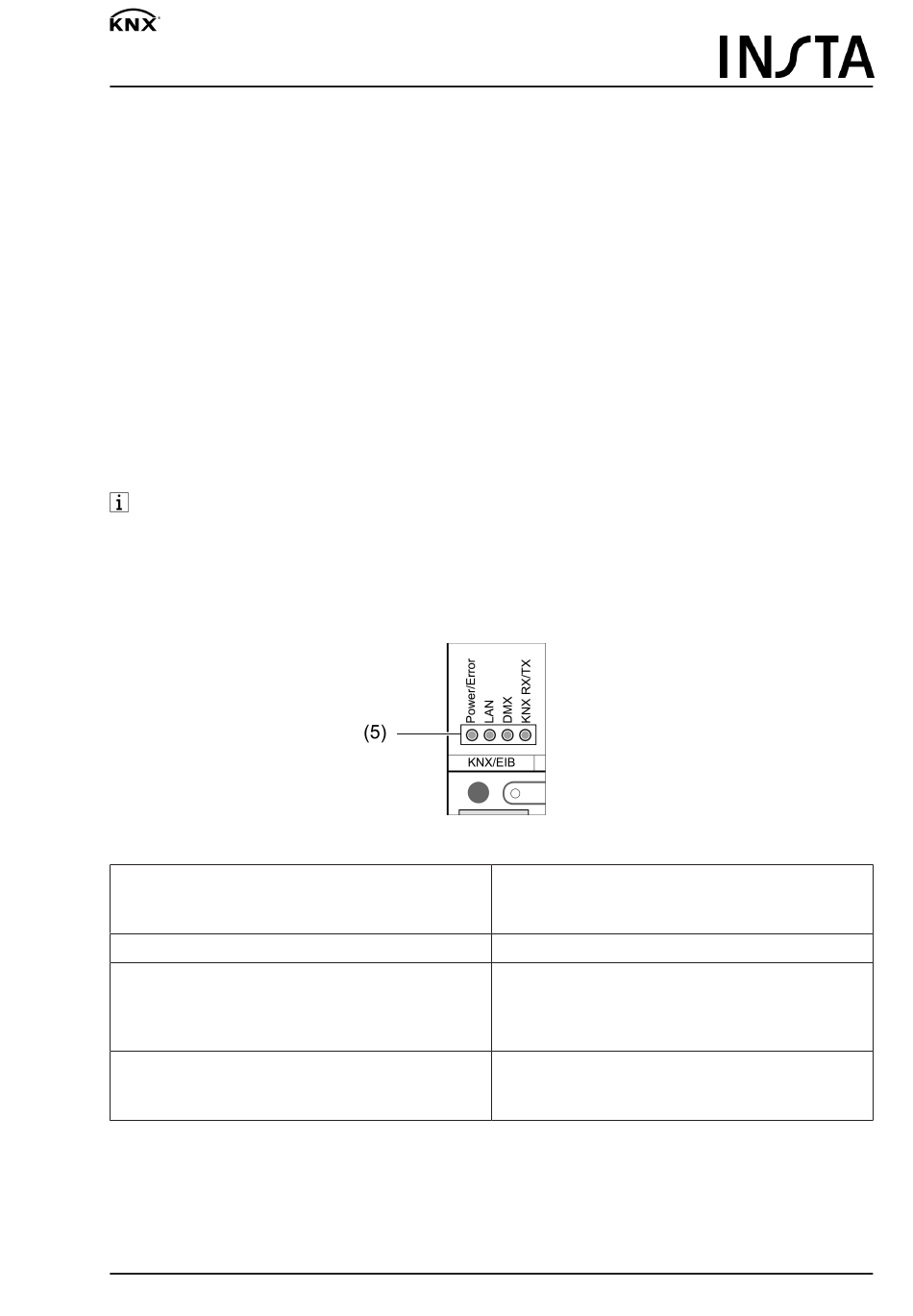

Status LED (5)
Power/Error
LAN
DMX
KNX RX/TX
Reset button (10)
The gateway is restarted by pressing the reset button (10). All stored configurations remain un-
changed.
82575434
Figure 2
Lit up green: Normal operation.
Orange flashing: Invalid project or no project.
Red flashing: Invalid firmware.
Lit up yellow: Reception via the IP interface.
Flashing green: Receiving/transmitting via the
DMX interface.
Lit up red: No receiving/transmitting of valid
DMX telegrams for one second.
Flashing green: Reception from the KNX bus.
Flashing red: Transmitting to the KNX bus.
Flashing red/green: No KNX bus detected.
