KNX Gateway DMX-Web K.DMXGW.01
KNX Gateway DMX-Web K.DMXGW.01
Art. no.: 135 16 112
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
These instructions are an integral part of the product, and must remain with the end customer.
2

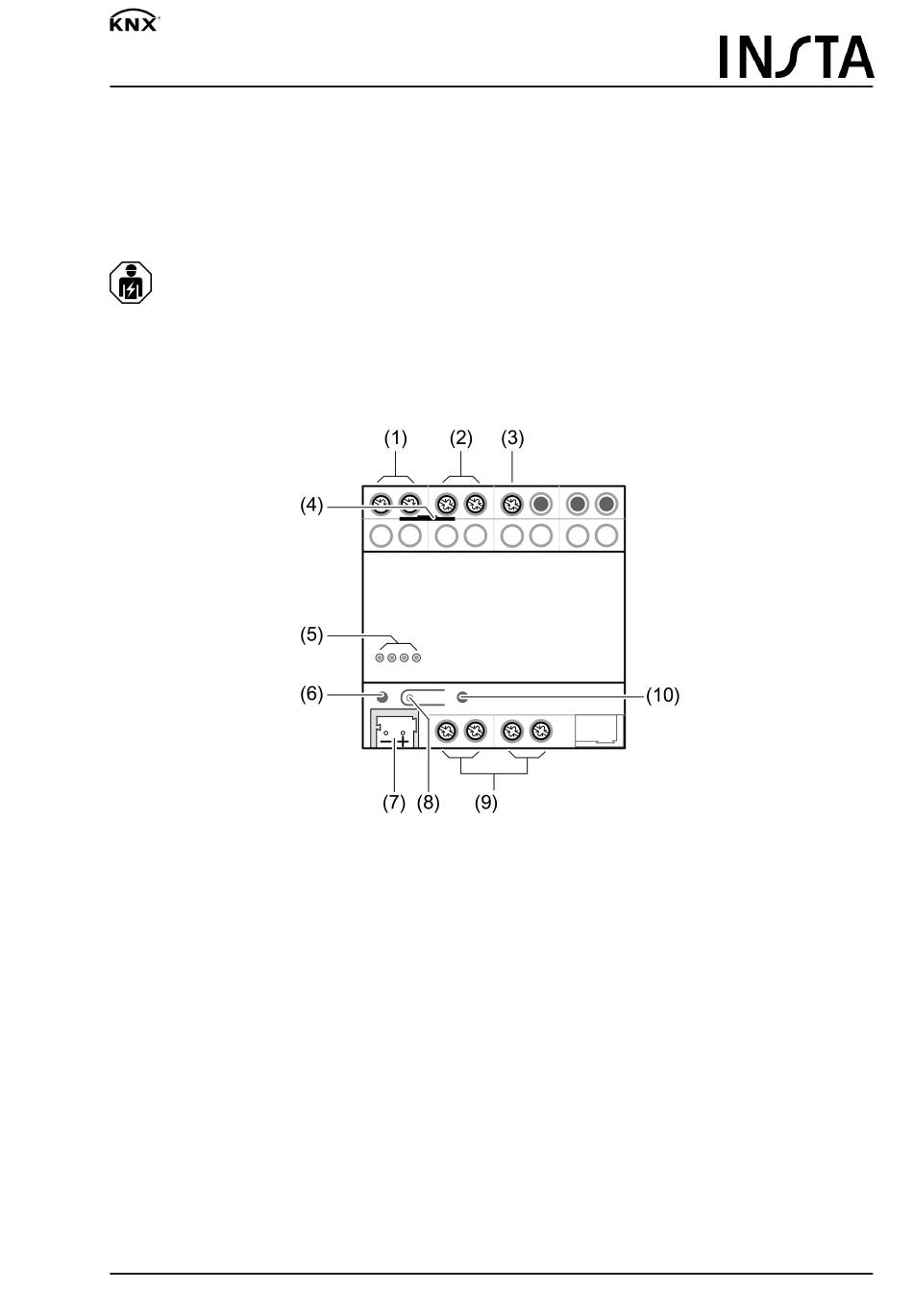

Device components
(1)
DMX input (DMX IN – / DINX IN +)
(2)
DMX output (DMX Out – / DMX Out +)
(3)
DMX earth (GND)
(4)
IP connection
(5)
Status LEDs
(6)
Programming LED
(7)
KNX connection
(8)
Programming button
(9)
Connection for external supply
(10)
Reset button
3
Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed tech-
nical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
82575434
Figure 1
1 / 7
06.02.2020
Advertisement
Summary of Contents for Insta KNX Gateway DMX-Web K.DMXGW.01
- Page 1 KNX Gateway DMX-Web K.DMXGW.01 KNX Gateway DMX-Web K.DMXGW.01 Art. no.: 135 16 112 Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
- Page 2 KNX Gateway DMX-Web K.DMXGW.01 Intended use – Unidirectional data exchange between KNX and a DMX system – Mounting on DIN rail to EN 60715 Product characteristics The Gateway has two operating modes: Operating mode "DMX master" – Translation of KNX values into DMX data bytes –...
- Page 3 KNX Gateway DMX-Web K.DMXGW.01 Information for electrically skilled persons 4.1 Fitting and electrical connection DANGER! Electrical shock on contact with live parts in the installation environment. Electrical shocks can be fatal. Before working on the device, disconnect the power supply and cover up live parts in the working environment.
- Page 4 KNX Gateway DMX-Web K.DMXGW.01 ￭ Connect external power supply to one of the two terminal pairs AC/DC 24 V (11). Connecting the device – operating mode "DMX slave" Figure 4 In the operating mode "DMX slave" the gateway functions as a DMX receiver. The terminals DMX In and GND are used for connection to the DMX bus.
- Page 5 KNX Gateway DMX-Web K.DMXGW.01 Terminate cables only with the supplied terminating resistor (11). Only provide a DMX bus with a terminating resistor if the gateway is the last device in the DMX bus line. There may never be more than one terminating resistor on a DMX bus.
-
Page 6: Technical Data
KNX Gateway DMX-Web K.DMXGW.01 Technical data External supply Rated voltage AC/DC 24 V SELV (± 10%) Mains frequency 50 / 60 Hz Power consumption max. 2.0 VA Ambient conditions Ambient temperature -5 ... +45 °C Storage/transport temperature -25 ... +70 °C Protection class... - Page 7 KNX Gateway DMX-Web K.DMXGW.01 Insta GmbH Postfach 1830 D-58468 Lüdenscheid Telefon +49 (0) 2351 936-0 Telefax +49 (0) 2351 936-1780 www.insta.de info@insta.de 82575434 06.02.2020 7 / 7...
