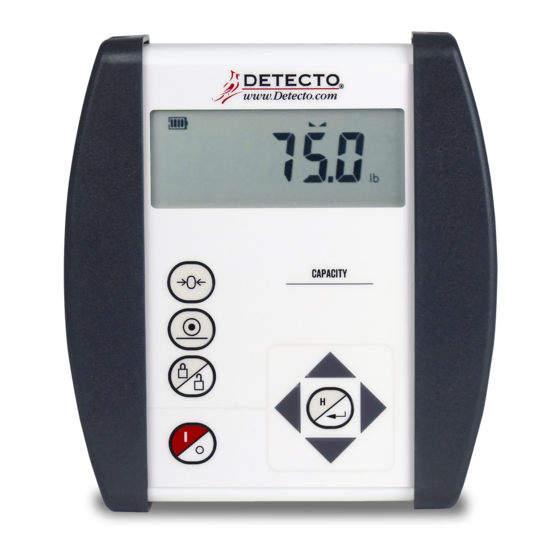

Detecto 750 Owner's Manual

Weight indicator with body mass index features
Hide thumbs Also See for 750:
Table of Contents

Advertisement

Quick Links

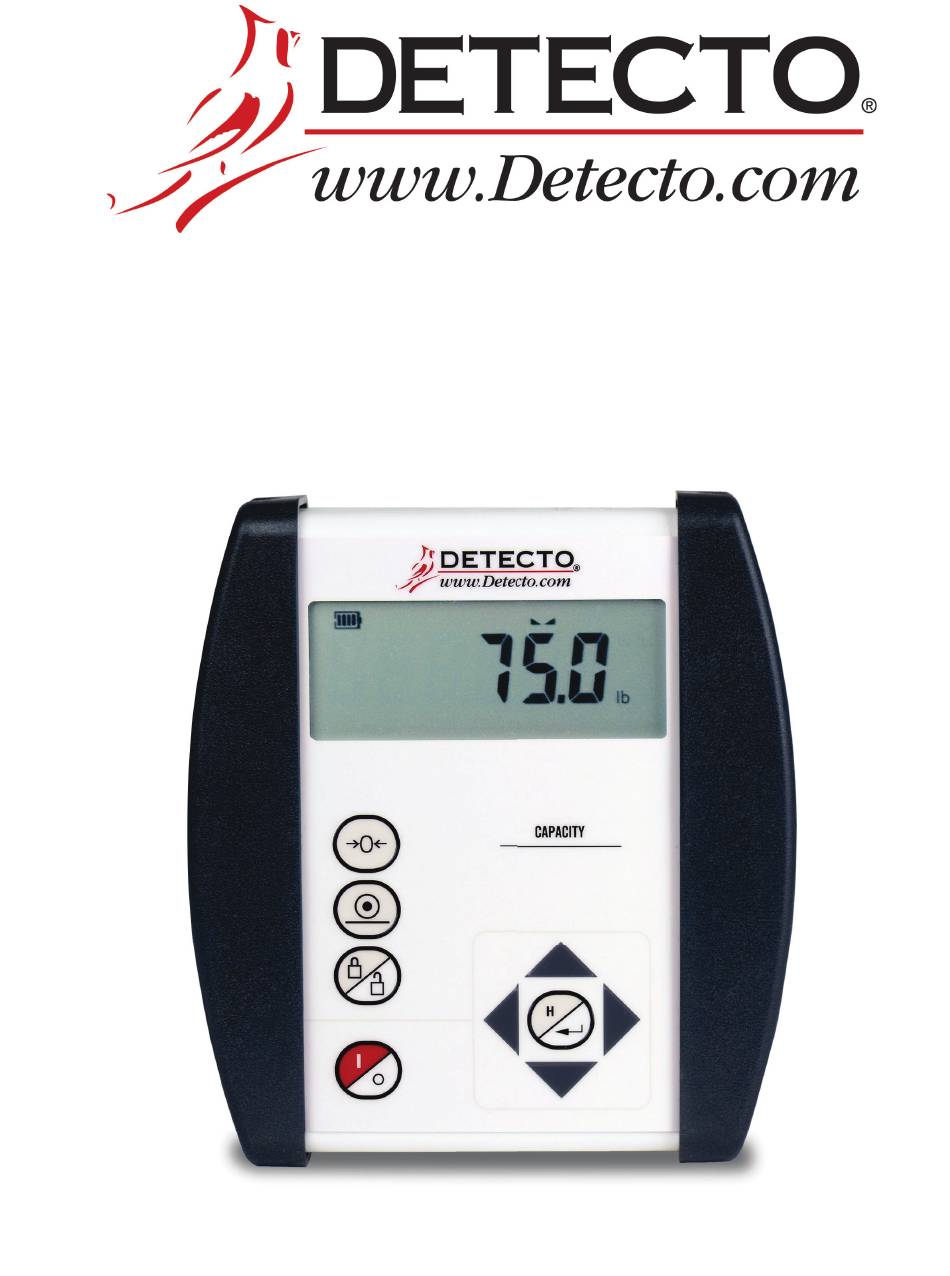

750
WEIGHT INDICATOR
With Body Mass Index Features
Owner's Manual
Technical Support: Ph: 866-254-8261 techsupport@cardet.com
1
8555-M483-O1 Rev C 750 Owner's

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Detecto 750

Summary of Contents for Detecto 750

  • Page 1 WEIGHT INDICATOR With Body Mass Index Features Owner’s Manual Technical Support: Ph: 866-254-8261 techsupport@cardet.com 8555-M483-O1 Rev C 750 Owner’s...
  • Page 2 8555-M483-O1 Rev C 750 Owner’s...

  • Page 3: Table Of Contents

    Serial Number ______________________ Date of Purchase ___________________ Before using this indicator, read this manual and pay special attention to all Purchased From ____________________ "NOTIFICATION" symbols: ___________________________________ ___________________________________ ___________________________________ IMPORTANT ELECTRICAL RETAIN THIS INFORMATION FOR FUTURE USE WARNING 8555-M483-O1 Rev C 750 Owner’s...
  • Page 4 CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. ATTENTION: RISQUE D'EXPLOSION SI LA BATTERIES EST REMPLACE'E PAR UN TYPE INCORRECT. REJETEZ LES BATTERIES UTILISE'ES SELON LES INSTRUCTIONS. 8555-M483-O1 Rev C 750 Owner’s...

  • Page 5: Introduction

    INTRODUCTION Thank you for purchasing our 750 Weight Indicator. It has been manufactured with quality and reliability and has been tested before leaving our factory to ensure accuracy and dependability for years to come. This manual is provided to guide you through installation, operation and maintenance of your indicator.

  • Page 6: Site Preparation Requirements

    Electrical Power The 750 Weight Indicator has been designed to operate from a 100 to 240 VAC 50/60Hz 12 VDC 1A wall plug-in UL/CSA listed AC power adapter (Cardinal part number 6800-1045). Note that a special order is not required for operation at 230 VAC.

  • Page 7: Installation

    Adapter NOTE: The mounting bracket on your scale may be different than the one shown in Figures No. 2 and 3. Refer to Appendix A for other bracket types. Spring Plunger Release Figure No. 3 8555-M483-O1 Rev C 750 Owner’s...

  • Page 8: Interconnections

    PRINT key or on receipt of a command from the computer. Serial I/O Port The 750 RS-232 serial I/O port is a 9-pin "D" connector on the rear panel of the indicator. Figure No. 5 shows the Serial I/0 connector along with the identity of the pins used. Make certain that the pins are correctly identified before soldering a wire to them.

  • Page 9: Optional Ac Power Adapter

    Calibration or Setup Review. Battery Status The 750 will operate for up to 250 hours on new Alkaline batteries or for up to 100 hours on fully charged Ni-Cad or NiMH batteries depending on the condition of the batteries (from new to about 500 recharges).

  • Page 10: Battery Installation/Replacement

    If not, remove the battery cover, and check for one or more improperly positioned batteries. 11. Return the indicator to the scale mounting bracket. 12. The indicator is now ready for operation. Figure No. 7 8555-M483-O1 Rev C 750 Owner’s...

  • Page 11: Weighing Units Selection

    WEIGHING UNITS SELECTION When the 750 Weight Indicator is turned on for the first time, it will display a prompt to select the weighing units to use for your operation, lb (pounds) or kg (kilograms). The weighing units selection can ONLY be made at this time and cannot be changed afterward. Make sure you select the correct weighing units before proceeding.

  • Page 12: Keypad Functions

    RS232 serial port and the optional Wi-Fi and Bluetooth (BLE). NOTE: The 750 will not respond to pressing the PRINT key unless the weight display is stable. If displaying gross weight, only the gross weight is printed. If displaying net weight, the gross, tare, and net weights are printed.

  • Page 13: Body Mass Index Functions

    During normal operation, pressing the Up ( ) or Down ( ) Arrow keys will enter a weight recall option that allows the last 10 weights recorded to be reviewed. Note that the weight is recorded each time the weight is locked. 8555-M483-O1 Rev C 750 Owner’s...

  • Page 14: Annunciators

    This annunciator is turned on to indicate that the displayed weight is in pounds. This annunciator is turned on when the displayed height measurement is in centimeters. FEET / INCHES These annunciators are turned on when the displayed height measurement is in feet and inches. 8555-M483-O1 Rev C 750 Owner’s...

  • Page 15: Operation

    Press the key to move the blinking character to FEET. c. Press the keys until the desired height in feet is displayed. d. Proceed to Step 8. 8555-M483-O1 Rev C 750 Owner’s...

  • Page 16: Weight Recall

    Serial ID Storage The 750 has been equipped with Serial ID storage for 200 records. Each ID stores the ID index, Weight, Height, BMI and Unit of measure. When the ENTER key is pressed, the indicator will assign the current values to a new ID and store the ID in memory. Next, the indicator will print the ticket in the mode selected during setup and calibration.

  • Page 17: Setup And Calibration

    SETUP AND CALIBRATION Your 750 Weight Indicator has been thoroughly tested and calibrated before being shipped to you. If you received the indicator with a scale, calibration is not necessary. If the indicator is being connected to a scale for the first time or recalibration is necessary for other reasons, the following describes the steps to perform setup and calibration on the indicator.
  • Page 18 ENTER key to save it. Allowable values are 1 to 99, which correspond to the number of division changes to break out of filtering. 8555-M483-O1 Rev C 750 Owner’s...
  • Page 19 IMPORTANT: During the time the dashes are appearing on the display, make sure that the loaded (or empty) scale is stable. 8555-M483-O1 Rev C 750 Owner’s...
  • Page 20 ENTER key to save it. Consult the factory Tech Support for the Acceleration of Gravity value for your location. NOTE: Once the Gravity Constant has been set, both must be set to the same value to disable it. 8555-M483-O1 Rev C 750 Owner’s...
  • Page 21 ENTER key to save it. Allowable values are: 0 or 1. (YES) (NO) Weight display will be reset to Weight display will not be reset to zero on zero automatically on power up power up 8555-M483-O1 Rev C 750 Owner’s...
  • Page 22 The setup and calibration process have been completed. The indicator will reset and then display weight. Press the ON/OFF key to turn the 750 off. Re-install the end cap and secure with the two (2) screws removed earlier. The 750 is now ready for normal operation.

  • Page 23: Setup Review

    Disable or select number of minutes for automatic shutoff timer EVENT COUNTER The 750 Weight Indicator has been designed with an Event Counter type of security seal. When selected, the 750 will display two 3-digit numbers representing the Calibration and Configuration counters.

  • Page 24: Weight On Demand Format

    WEIGHT ON DEMAND FORMAT Weight on Demand If the 750 Weight Indicator is connected to a computer for transmission of weight data to a PC-based EMR (electronic medical record) software program, it will transmit a single set of weight data each time the computer sends a weight request “ENQ” (hex 05). This is known as Weight-On-Demand.

  • Page 25: Error And Status Displays

    SERIAL PRINT COMMANDS, CONT. Recall Data Queue Command The host device (computer) sends: <LF> XS <CR> The 750 will Recall the Data Queue. The data will be transmitted in the following format: ID, Weight, Units, Mode<cr><lf> Where: ID = xxxxxxxxxxx...

  • Page 26: Before You Call Service

    CARE AND CLEANING NOTE: The 750 Weight Indicator contains no user-serviceable parts and maintenance should be limited to an occasional cleaning and battery replacement as required. Do not submerge the indicator in water, pour, or spray water directly on it to clean.

  • Page 27: Parts Identification

    PARTS IDENTIFICATION Item Part Number Description 8555-0548-08 KEYPAD 8555-D478-0A PCB ASS’Y 750 CONTROLLER (SMT) 8555-C473-08 REAR PANEL, 750DS 8555-C253-08 FRONT PANEL 8555-C213-08 END CAP 8555-B257-0A BATTERY HOLDER 8555-B254-08 MOUNTING SPACER 6680-0004 WASHER, #6 LOCK INT. TOOTH 6610-2000 JACK SOCKET 6021-6008 SCREW, #6 X .375 TH SHEET METAL (BLACK)
  • Page 28 PARTS IDENTIFICATION, CONT. 8555-M483-O1 Rev C 750 Owner’s...
  • Page 29 PARTS IDENTIFICATION, CONT. 8555-M483-O1 Rev C 750 Owner’s...
  • Page 30 PARTS IDENTIFICATION, CONT. 8555-M483-O1 Rev C 750 Owner’s...

  • Page 31: Appendix A - Indicator Mounting Brackets

    APPENDIX A INDICATOR MOUNTING BRACKETS Mounting Bracket Assembly 0033-B438-0A Mounting Bracket Assembly 0033-B439-0A 8555-M483-O1 Rev C 750 Owner’s...
  • Page 32 APPENDIX A, CONT. INDICATOR MOUNTING BRACKETS Mounting Bracket Assembly 0044-B315-0A Mounting Bracket Assembly 0046-B516-0A 8555-M483-O1 Rev C 750 Owner’s...
  • Page 33 APPENDIX A, CONT. INDICATOR MOUNTING BRACKETS Mounting Bracket Assembly 0049-C039-0A 2.00 Inches Desk/Wall Mount Bracket Assembly 0033-B440-0A 8555-M483-O1 Rev C 750 Owner’s...
  • Page 34 (1) year from date of shipment. Detecto shall be the sole judge of what constitutes a defect.
  • Page 35 This warranty sets forth the extent of our liability for breach of any warranty or deficiency in connection with the sale or use of the product. Detecto will not be liable for consequential damages of any nature, including but not limited to, loss of profit, delays or expenses, whether based on tort or contract.
  • Page 36 Cardinal Scale Manufacturing Co. 102 E. Daugherty, Webb City, MO 64870 USA Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-2153 Technical Support: 1-866-254-8261 Printed in USA E-mail: tech@cardet.com 8555-M483-O1 Rev C 02/20 8555-M483-O1 Rev C 750 Owner’s...
