Summary of Contents for Continuum Echo

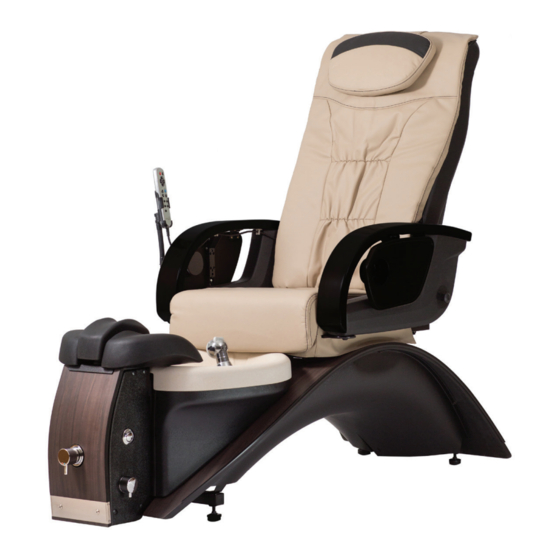

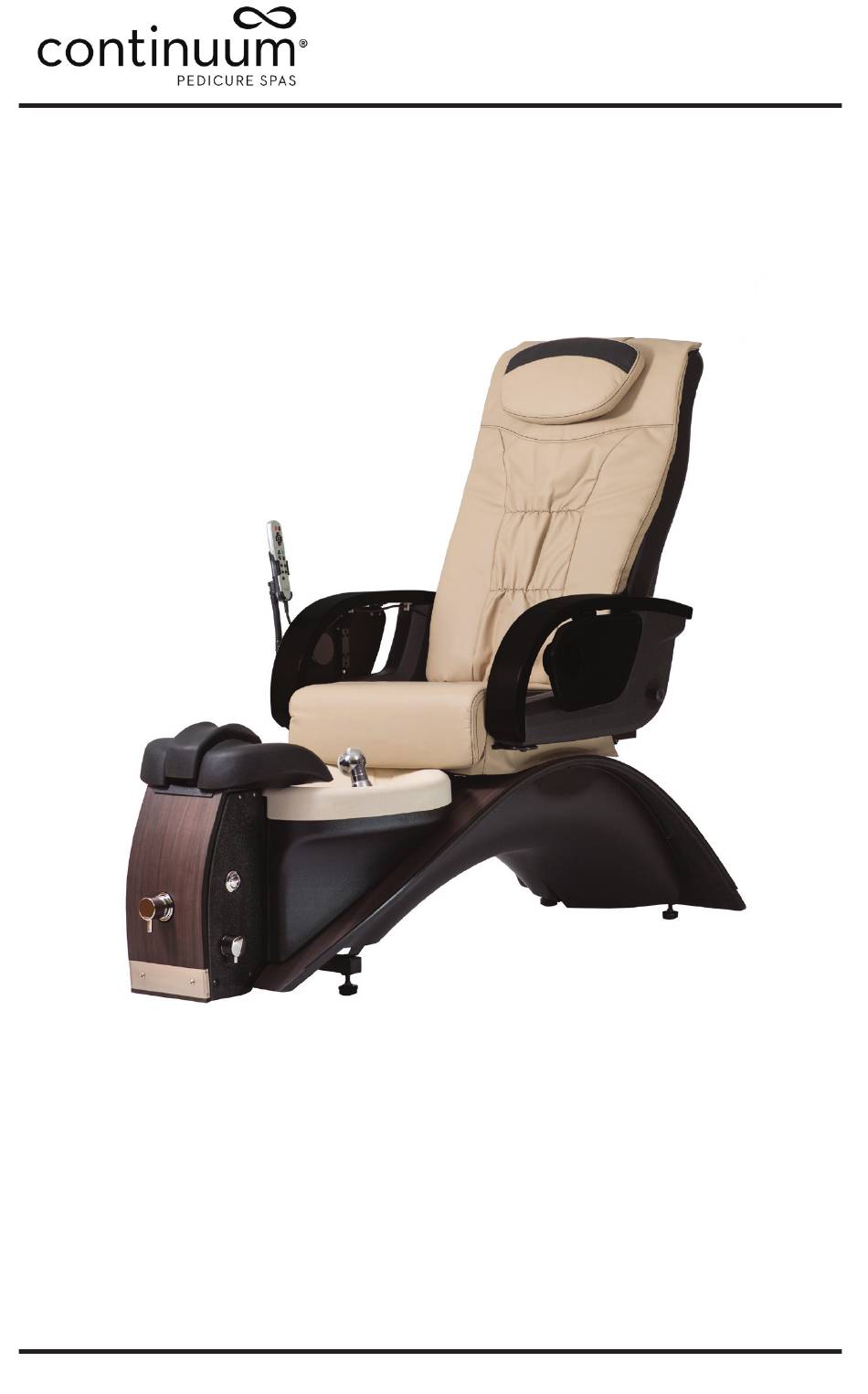

- Page 1 USER MANUAL Echo Pedicure Chair 1-400-0084 • Rev A • 2/5/20 *shown with optional accessories and/or finishes © Continuum 2020, All Rights Reserved...
- Page 2 Continuum® ment. This document may contain technical inaccura- cies or errors. Continuum® makes no expressed or im- All rights reserved. This document or plied warranties of any kind concerning the information...
-
Page 3: Table Of Contents
Echo pedicure spa is equipped with all the features and amenities essential for day spas, resorts and distinguished salons. The Echo is designed for licensed therapists and technicians and is intended to be used in a professional spa, salon, or similar commercial environment. While no special training is needed to operate the product, for safety reasons it is important that the instructions contained in this manual are reviewed in detail before the first use. -
Page 4: Section 1: Safety Information
Familiarize yourself with the following or fatal injury. Safety & Warning symbols. They are designed prevent damage injury to you, your clients, and your new Continuum product. Indicates a potentially hazardous situation which could result in serious injury. IMPORTANT: important safety... - Page 5 SECTION 1: SAFETY INFORMATION • DO NOT reach for any electrical object that has fallen into the water. Unplug immediately. • DO NOT drop or insert anything into jet opening. • DO NOT operate without the complete jet assembly installed or without water filled 1 inch above jets. •...
-
Page 6: Section 2: Product Overview
SECTION 2 : PRODUCT OVERVIEW Echo LE Client Controls Contoured Footrest Fold Down Manicure Trays with Cupholder Technician Controls Sprayer/Fill Water Fill Drain Pump Valve Button Drain Release Echo SE Contoured Footrest Client Controls (1 of 2) Sprayer/Fill Water Fill... -
Page 7: Product Specifications
SECTION 2 : PRODUCT OVERVIEW Product Specifications Echo LE Echo SE Length 61.75” (157 cm) 61.75” (157 cm) 31” (79 cm) 29.5” (75 cm) w/o cupholder Width 45.45” (113 cm), trays up 34.5” (88 cm) w/cupholder Overall Height 55.5” (141 cm) 54”... -
Page 8: Section 3: Operating Instructions
SECTION 3: OPERATING INSTRUCTIONS Assembly Instructions The back porti on of the LE or SE chair is shipped facing down. Carefully remove all packaging materials and gently move the chair into an upright positi on, making sure the back remains located in the pivot grooves. Once the chair back is in an upright positi on, locate the latch at the bott om of the back. -
Page 9: Leveling Your Chair
Leveling Your Chair Leveling, or balancing, your table is very important during initi al setup and routi ne maintenance. Your Echo is equipped with leveling feet that can adjust to uneven fl oors. To adjust the leveler feet: 1. Place the chair in the positi on you plan to use it. -
Page 10: Gravity Drain & Drain Pump
The jet assembly must be correctly assembled or it may be damaged. This will NOT be covered by any Continuum warranty. Never turn the jet on without adequate water in the basin. There must be at least one (1) inch of water above the motor housing. -
Page 11: Foot Rest & Center Support
SECTION 3: OPERATING INSTRUCTIONS Adjustable Center Leg Support with Adjacent Foot Rests An exclusive and patent pending Center Leg Support System is a unique feature of your pedicure chair. There is a black knob located underneath the center leg support to maintain the desired height of the leg support. - Page 12 SECTION 3: OPERATING INSTRUCTIONS LE Hand Control The following diagrams illustrate the functionality of the Echo LE hand controls. RISK OF ELECTRIC SHOCK Keep hand control and all electrical components away from water. Master Power On/Off Decrease Back Tilt Slide Seat Forward...
-
Page 13: Hand Controls
SECTION 3: OPERATING INSTRUCTIONS SE Hand Controls The following diagrams illustrate the functionality of the Echo SE hand controls. RISK OF ELECTRIC SHOCK Keep hand control and all electrical components away from water. Power Low Heat High Heat Massage All Zones - Continuous... -
Page 14: Section 4: Care & Maintenance
SECTION 4: CARE & MAINTENANCE Cleaning & Ongoing Maintenance The following procedures are important guidelines that will help in keep your Club LE clean and trouble free for years. It is extremely important to clean and disinfect each and every pedicure chair after each pedicure and after the last pedicure of the day. - Page 15 With normal use, the jet housing and impeller will show signs of wear. Jet Jets housing and impeller should be inspected at least weekly. If either part is showing signs of wear, contact Continuum Footspas for jet wet end assembly replacement.
-
Page 16: Tub Cleaning Guide
If the wet end is not positioned correctly, damage to the jet may occur due to misalignment. This will NOT be covered by any Continuum warranty. Never turn the jet on without adequate water in the basin. There must be at least one (1) inch of water above the motor housing. -
Page 17: Troubleshooting
In the event your specific situation is not covered in this guide, please contact Continuum so our technical support department can assist you. Beyond the troubleshooting guide below, do not attempt to repair the issue yourself. -
Page 18: Warranty Information
Canada and Mexico All warranties are limited to repair or replacement, at Continuum’s discretion, unless otherwise stated. This limited warranty applies only to pedicure chairs installed in any one of the fifty (50) States of the United States, the District of Columbia, or provinces... -
Page 19: Section 5: Installation
One (1) each 1/2” hot and cold water supply. Locate shut-offs on the wall behind pedicure chair. (Suggested range 4” to 12” apart on center, 4” to 8” A.F.F. Shut-offs may be roughed in through the floor. Please contact Continuum Footspas for additional information. - Page 20 SECTION 5: INSTALLATION ADDITIONAL INFORMATION REGARDING GRAVITY DRAIN INSTALLATIONS • Always check with local plumbing inspectors for possible special requirements pertaining to pedicure chairs. • Gravity drain is always preferred. If drain pump is NOT required, unit should be ordered WITHOUT drain pump.
- Page 21 SECTION 5: INSTALLATION Installation Drawing Note: Upper dimensions are in inches, lower dimensions [ ] are in centimeters...
-
Page 24: Contact Us
Contact Us Continuum Hours of operation: 990 Joshua Way Monday - Friday Vista, CA. 92081 8:00 a.m. to 5 p.m. PST (877) 255-3030 (760) 597-5707 Int’l Saturday - Sunday orders@continuumpedicure.com Closed Visit us online at: mycontinuumpedicure.com Follow us on Connect with us...
