Misure / Measures
Sp. 18mm
Componenti / Elements
7
1
6
2
5
4
11
9
8
10
Art.
69,7cm
6
2
4
5
3

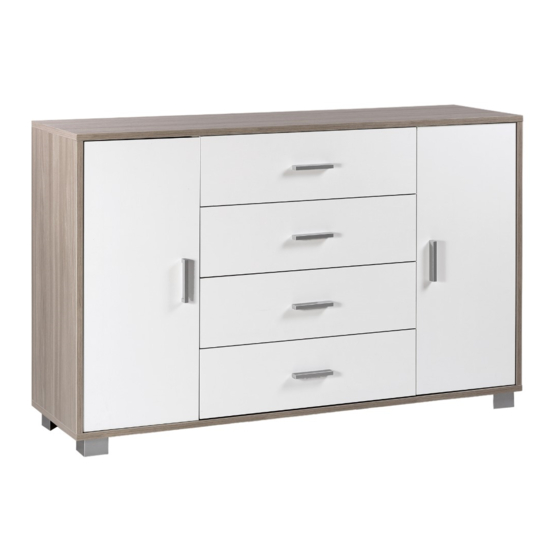

Mobile 2 ante 4 cassetti
775
2-door 4-drawer unit
Dettagli / Details
Schiena
- Struttura materiale in truciolare nobilitato
Backrest
- Maniglie e piedini verniciati cromo
satinato
Sp. 3mm
- Guide cassetto in metallo
- Mobile in kit
- Material structure in engineered wood
- Chrome-plated feet and handles
- Metal drawer runners
80,2cm 85,2cm
- Kit furniture
5cm
40,8cm
31cm
Pos.
Pezzi / Pcs
1
1
2
2
3
1
4
2
5
2
6
2
7
1
8
2
9
4
10
4
11
4
76cm
31cm
66cm
Descrizione / Description
Coperchio
(1356 x 408 x 18mm)
Top
(1356 x 408 x 18mm)
Fianco dx/sx
(766 x 408 x 18mm)
Rh/Lh Side
(766 x 408 x 18mm)
Base
(1356 x 408 x 18mm)
Base
(1356 x 408 x 18mm)
Tramezza
(766 x 387 x 16mm)
Partition Side
(766 x 387 x 16mm)
Anta
(762 x 327,5 x 16mm)
Door
(762 x 327,5 x 16mm)
Schiena
(782 x 327 x 3mm)
Backrest
(782 x 327 x 3mm)
Schiena Pieghevole
(782 x 665 x 3mm)
Folding Backrest
(782 x 665 x 3mm)
Ripiani
(312 x 364 x 10mm)
Shelves
(312 x 364 x 10mm)
Davanti Cassetto
(657 x 189 x 16mm)
Front Drawer
(657 x 189 x 16mm)
Sponda Cassetto
(634 x 350 x 12mm)
Structure Drawer
(634 x 350 x 12mm)
Fondo Cassetto
(620,5 x 351 x 3mm)
Drawer Backrest
(620,5 x 351 x 3mm)
Utile cassetto
Usefull drawer
h.22 l.61 p.33cm
