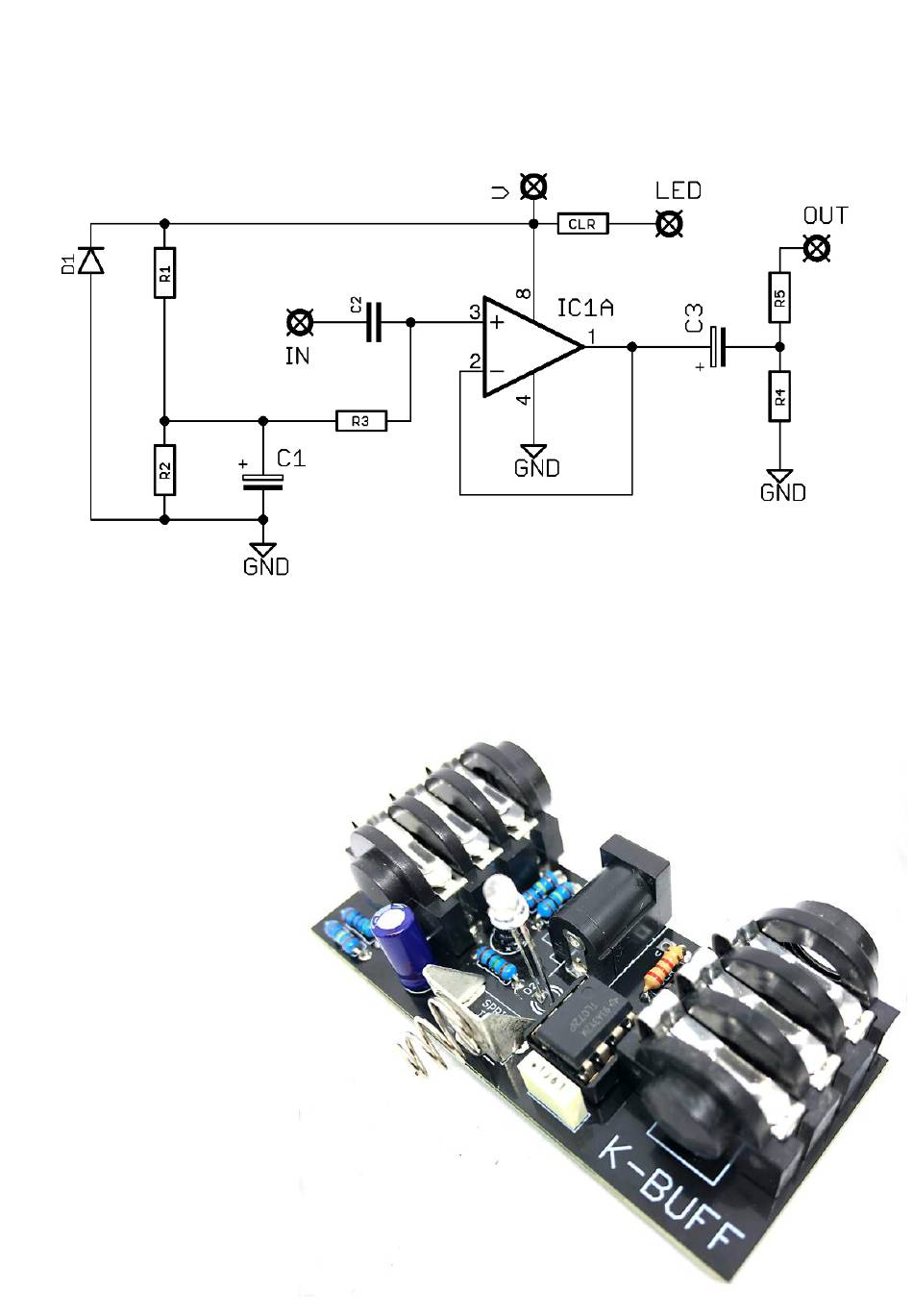

Schematic + BOM
R1
100K
R2
100K
R3
1M
R4
100K
R5
560R
CLR
2K2*
C1
47u elec
C2
100n
C3
1u elec
IC
TL072
D1
1N4001
D2
LED
*Or whatever value you prefer.
Lower value = brighter LED.
