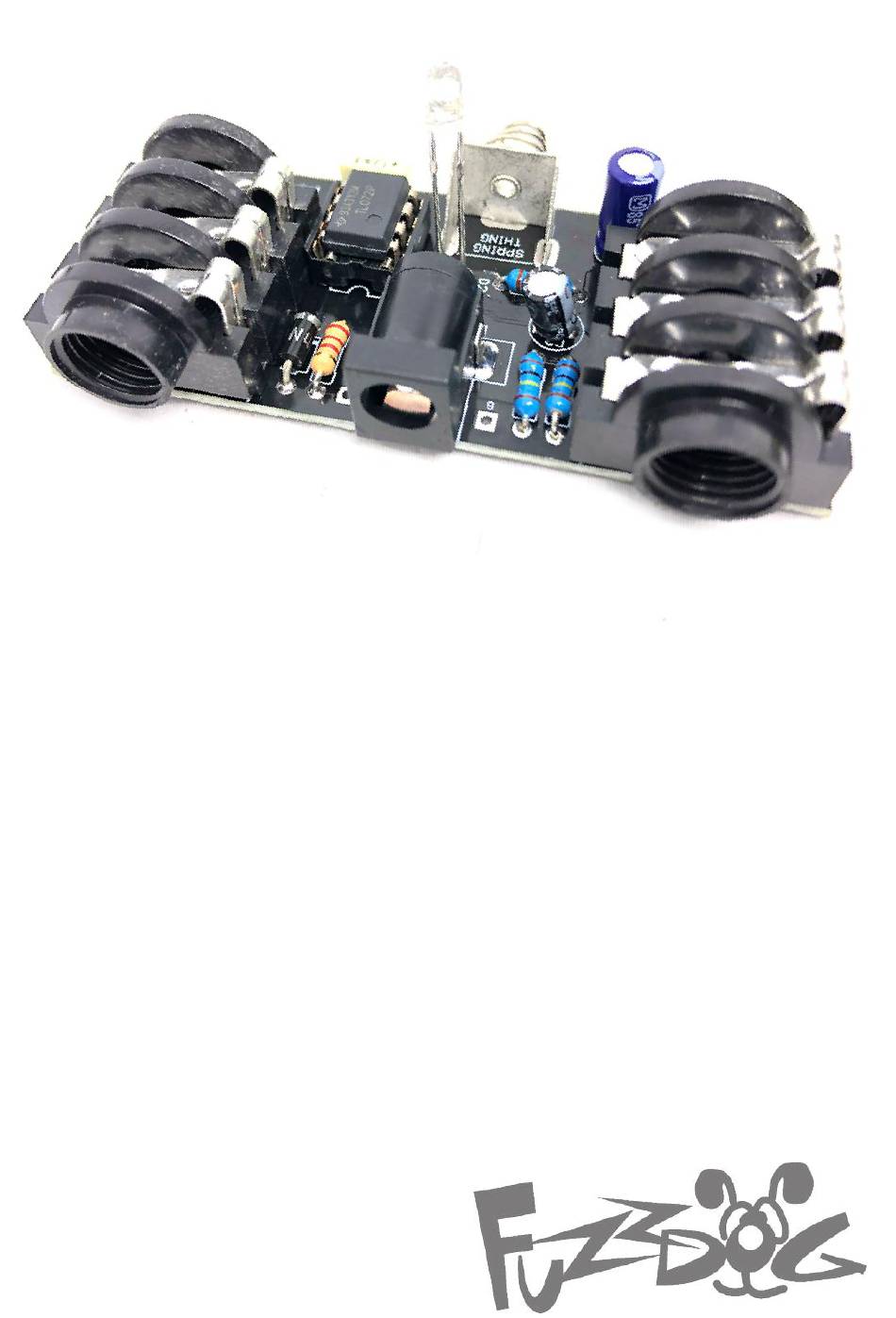

- Page 1 Klon Buffer Invigorate your signal chain Contents of this document are ©2020 Pedal Parts Ltd. No reproduction permitted without the express written permission of Pedal Parts Ltd. All rights reserved.
-
Page 2: Important Notes
Important notes If you’re using any of our footswitch daughterboards, DOWNLOAD THE DAUGHTERBOARD DOCUMENT • Download and read the appropriate build document for the daughterboard as well as this one BEFORE you start. • DO NOT solder the supplied Current Limiting Resistor (CLR) to the main circuit board even if there is a place for it. - Page 3 Schematic + BOM 100K 100K 100K 560R 2K2* 47u elec 100n 1u elec TL072 1N4001 *Or whatever value you prefer. Lower value = brighter LED.
- Page 4 Be very careful when soldering the diode and IC. The ‘spring thing’ grounds the circuit and jacks They’re very sensitive to heat. You should use to the enclosure, so no worries about RF some kind of heat sink (crocodile clip or reverse shielding.
-
Page 5: Drilling Template
10mm should suffice. This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
