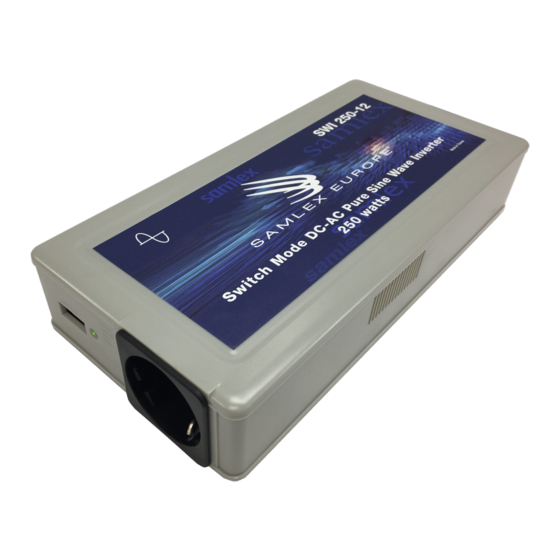

Samlex Europe SWI 250-12 Manual

Samlex Europe SWI 250-12 Manual

Pure sinewave inverter

Advertisement

Quick Links

SINEWAVE INVERTER
ENG
Pure Sinewave Inverter
Smart Battery Charger
Model No.
SWI 250-12
SWI 250-24
Manual
Please read this manual before operating your inverter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWI 250-12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Samlex Europe SWI 250-12

  • Page 1 SINEWAVE INVERTER Pure Sinewave Inverter Smart Battery Charger Model No. SWI 250-12 SWI 250-24 Manual Please read this manual before operating your inverter...
  • Page 2 Notice of Copyright SWI 250 inverter owner’s manual © 2004-2020 Samlex Europe B.V.. All rights reserved. No part of this document may be reproduced in any form or disclosed to third parties without the express written permission of Samlex Europe B.V., Aris van Broekweg 15, 1507 BA, Zaandam, The Netherlands.
  • Page 3: Table Of Contents

    Contents Notes on using the user’s manual General safety instructions Scope of delivery Proper use Technical description Installation instructions Connecting the inverter Using the inverter Rectifying faults 10 Cleaning and caring for the inverter 11 Guarantee 12 Disposal 13 Technical data 14 Declaration of Comformity Please read this manual carefully before installing and starting up and store it in a safe place.
  • Page 4: Notes On Using The User's Manual

    Notes on using the user’s manual Caution! Safety instruction, failure to observe this instruction can cause material damage and impair the function of the device. Supplementary information for operating the device. Caution! Safety instruction relating to a danger from electrical current or voltage. Failure to observe this instruction can cause material damage and personal injury and impair the function of the device.
  • Page 5: Scope Of Delivery

    Safety when installing the device • Ensure that the device has a firm foundation. The device must be set up and fastened in such a way that it cannot tip over or fall down. • Take the precautions necessary to ensure that children cannot interfere with operation. Dangerous situations may occur which cannot be recognized by children! •...
  • Page 6: Proper Use

    Proper use The Pure Sine Wave Inverters convert 12 V (SWI 250-12) or 24 V (SWI 250-24) direct current to a 230V alternating current at a frequency of 50 Hz. Warning! Reverse polarity connection of the battery wires can damage the inverter.
  • Page 7: Connecting The Inverter

    • On building up an electricity supply network the safety regulations according to the VDE 0100 standard are to be kept. • Observe the required cable cross section (see table). Device Required cable cross section SWI 250-12 4 – 6 mm² SWI 250-24 4 – 6 mm² Connecting the inverter •...
  • Page 8: Using The Inverter

    Using the inverter Always connect only one consumer unit to the 230V socket (fig. 1, page 11) on the front of the device. Power on Before switching on the inverter, check if the AC load has been switched off. The ON/OFF switch is located on the DC connection side.
  • Page 9: Rectifying Faults

    Rectifying faults Fault Cause Remedy No output voltagee – Bad connection between Check the cables and contact. LED not Illuminated. battery and inverter. In this case send the unit back Internal fuses defect. to the supplier. No output voltage – Current consumption of the Power off the inverter and Green LED Illuminates.
  • Page 10: Guarantee

    Guarantee 2 YEAR Limited Warranty The sinewave inverter manufactured by Samlex Europe B.V. (the “Warrantor“) is warranted to be free from defects in workmanship and materials under normal use and service. This warranty is in effect for 2 years from the date of purchase by the user (the “Purchaser“) For a warranty claim, the Purchaser should contact the place of purchase to obtain a Return Authorization Number.
  • Page 11 1. USB charger (5V / 2.1A) 2. LED indicator SWI 250-12 3. AC Out (AC Outlet) For 230VAC SWI 250-24 1. Ventilation Openings 2. DC Fuse 3. DC in (DC Connector) 4. Power ON/OFF...
  • Page 12 1. Ventilation Openings 2. Cooling Fan 10 cm 10 cm 10 cm...
  • Page 14: Technical Data

    TECHNICAL DATA 250W Pure Sine Wave Inverter SWI 250-12 SWI 250-24 Rated input voltage 12VDC 24VDC Constant output power 250W Peak output power 500W Maximum input current Output Voltage 230VAC +/-3% Output Frequency 50Hz Output wave form Pure Sine Wave Total harmonic distortion <...
  • Page 15: Declaration Of Comformity

    +31-75-6175299 Declares under our sole responsibility that the product Product Name DC-AC SINEWAVE INVERTER SWI 250-12, SWI 250-24 Model No. to which this declaration relates is in conformity with the following standards or other normative documents EN 61000-4-2:2009 EN 61000-4-3:2006+A2: 2010 EN 61000-4-4:2012...
  • Page 16 www.samlex.com www.samlex-solar.com...
