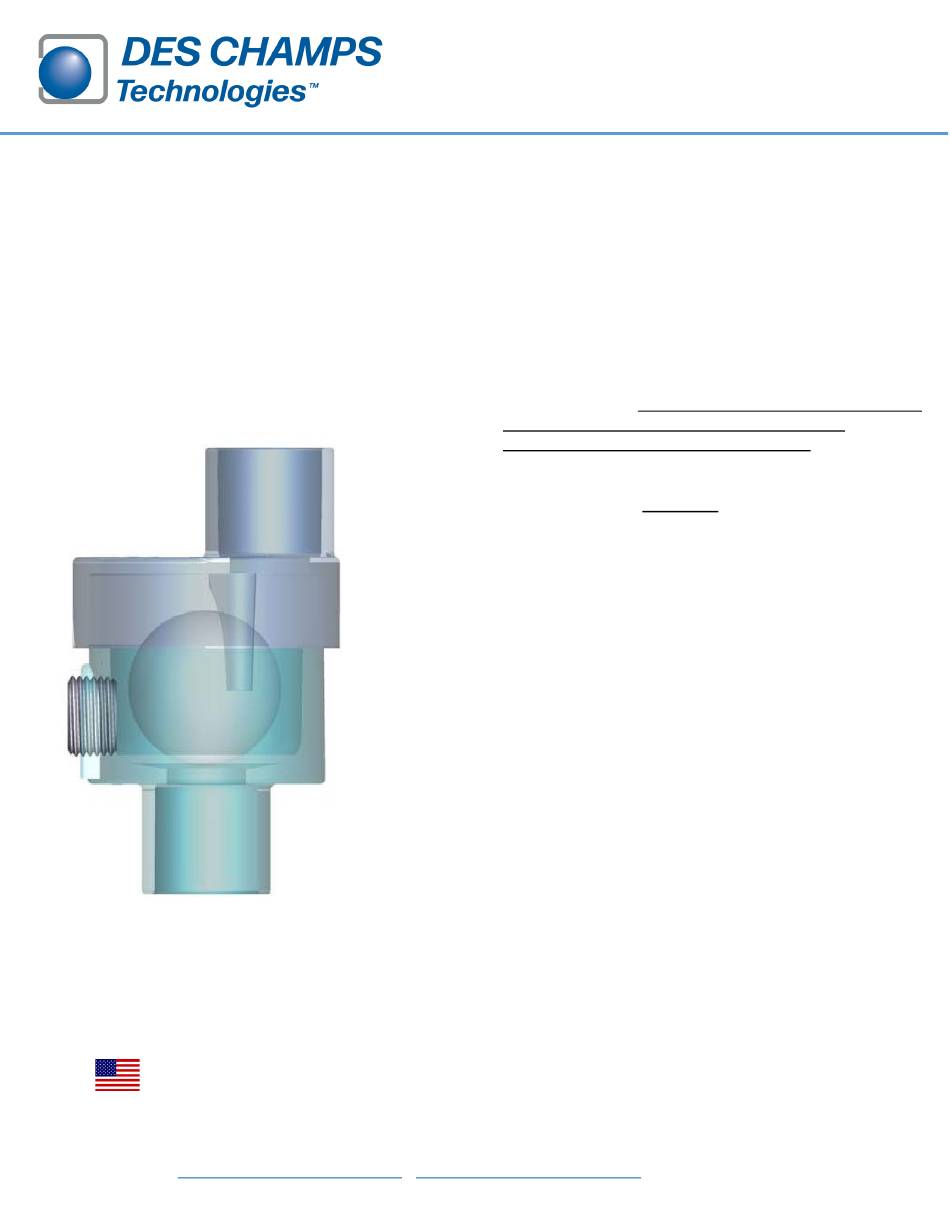

Installation, Operation, and
Maintenance Manual for
Air-Trap
HVAC
RLC-SERIES
Positive/Negative Pressure
¾" slip or 1" bushing connections
Patent Pending
These instructions are a guide to the user of an RLC
Series Air-Trap during installation, commission into
service, operation, or periodic maintenance.
MADE IN THE USA
www.deschampstechnologies.com
™
Des Champs Technologies | 2 Nikki Lane | Natural Bridge Station, VA 24579
|
Product Description

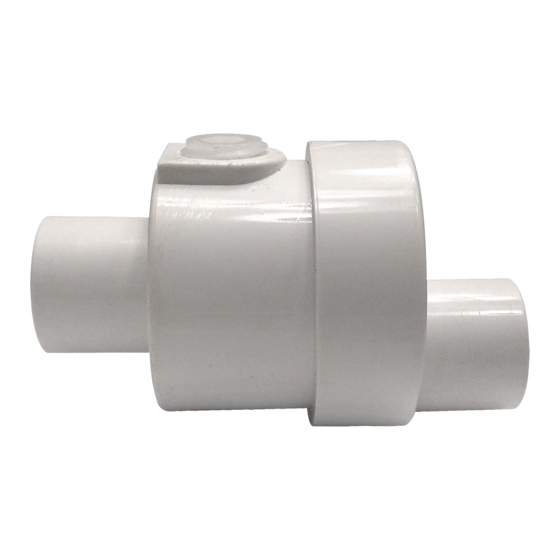

The RLC-SERIES Air-Trap allows water to drain from
HVAC equipment and simultaneously prevents air from
escaping from or entering the equipment.
The RLC-SERIES Air-Trap does not require standing
water to prevent gas (typically air) from entering or
leaving the HVAC unit. With the occurrence of
condensate, or other water sources within the unit, the
water flows out of the HVAC unit but no gas flows past
the trap. When there is no production of water, there is
no water in the trap and there is no gas passing
through the trap. Install the RLC-SERIES Air-Trap in a
vertical position for positive pressure and in a
horizontal position for negative pressure.
Delivery Check
Upon receipt of an Air-Trap (s), inspect for damage
that may have occurred during shipment and check to
insure delivered items match purchased items.
Resolving Shipping Damage
If damage or items are missing:
1. Report all claims of shipping damage to the
delivering carrier (transporter) immediately, and
schedule an inspection.
2. Make specific notations on the freight bill
concerning the damage.
3. Keep damaged material in the same location as
received. The receiver is responsible for
providing reasonable evidence that damage did
not incur after delivery.
4. Photograph damage if possible.
5. Do not move or discard damaged freight
packaging materials.
6.
Notify the sales representative, or Des Champs
Technologies, of the damage. Do not attempt
to repair the unit without consulting the sales
representative or Des Champs Technologies.
DES CHAMPS TECHNOLOGIES IS NOT
RESPONSIBLE FOR SHIPPING DAMAGE.
Storage Considerations
.
Store the Air-Trap in a protected area prior to
installation. The warranty will not cover damage to
the trap resulting from negligence.
info@deschampstechnologies.com
Page | 1
| Ph: 540-228-1967
RLC IOM Aug 31 17
Advertisement
Table of Contents
Related Manuals for Deschamps HVAC Air-Trap RLC Series
Summary of Contents for Deschamps HVAC Air-Trap RLC Series
- Page 1 Installation, Operation, and Product Description Maintenance Manual for The RLC-SERIES Air-Trap allows water to drain from HVAC equipment and simultaneously prevents air from Air-Trap HVAC escaping from or entering the equipment. ™ The RLC-SERIES Air-Trap does not require standing water to prevent gas (typically air) from entering or RLC-SERIES leaving the HVAC unit.
- Page 2 Positive-Pressure Application The Series RLC maximum operating positive pressure 4. Connect only to a storm drain or a condensate is 3.0 inches wc. If the positive pressure is expected to drain line. This product is to control flow of be greater, then a P-Series Air-Trap for up to 12 inches condensate produced by HVAC equipment and is...
- Page 3 Maintenance and Techniques for Cleaning the RLC Air-Trap Preventative Maintenance In some operations, large particulate matter can move from the HVAC unit through the drain line and into the Air-Trap, causing a malfunction or failure. The best way to reduce maintenance is to install a strainer screen at the inlet to the drain line (Fig.
- Page 4 The benefits and maintenance of the RLC Air-Trap Negative-Pressure Application when used in the negative pressure mode are the same as for the positive mode with the added benefit that it eliminates the geyser effect that is caused when When operating with a negative pressure plenum, the standard P-Trap dries out and condensate begins install the RLC Air-Trap in a horizontal orientation with to form.
