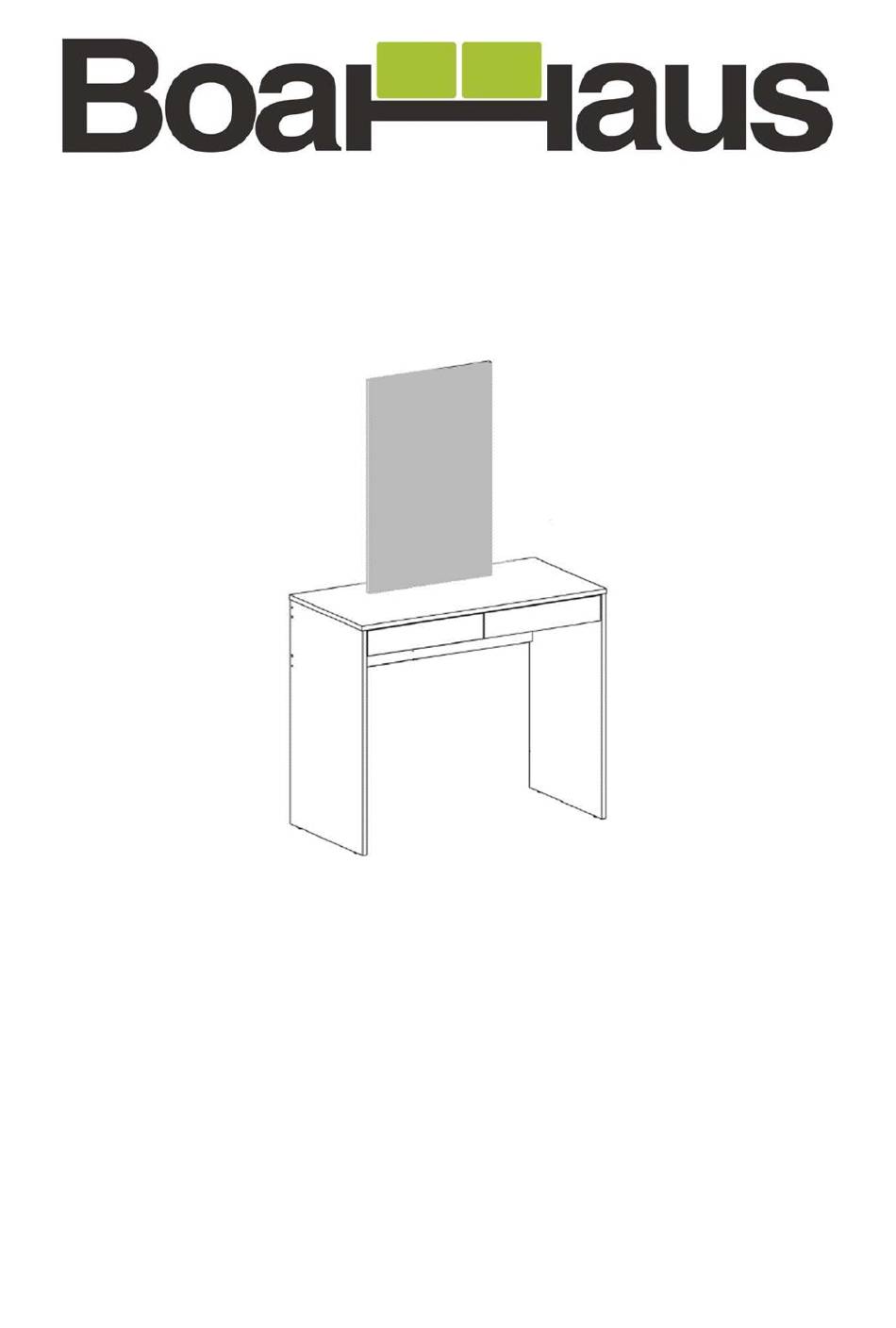

THIS INFORMATION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. ESTE FOLLETO CONTIENE INFORMACIÓN DE SEGURIDAD IMPORTANTE. POR FAVOR, LEA Y GUÁRDELO PARA REFERENCIA FUTURA. Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 2
MODEL 1603 www.boahaus.com You can see the assembly video scanning this QR code. Or entering the following link: https://boahaus.com/products/vanity-set-dressing-table-white-with-mirror-2-drawers Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 3
Nota: el peso debe estar distribuido uniformemente. You will need / usted necesitará: Tools not included / herramientas no incluidas Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 4
Front right drawer - Frente del cajón derecho Bottom of drawer - Fondo del cajón Partition - Divisoria Mirror backboard - Fondo espejo Crossbeam - Travesaño Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 5
Simple miniflix screw / Tornillo minifix simple Drum lock / Tambor minifix Bore patch adhesive / Tapón adhesivo (15mm) Nail / Clavo Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 6
Left drawer slide / Corredera cajon izquierda Right drawer slide / Corredera cajon derecha Plastic hole plugs / Tapón plástico Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 7
Note: the two upper holes have to be facing up. Nota: los dos agujeros superiores deben estar hacia arriba. Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 8
Note: the two upper holes have to be facing up. Nota: los dos agujeros superiores deben estar hacia arriba. Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 9
3. Fix metallic right slide (VB), metallic left slide (VA) and wooden dowel (E) to partition (11). Fijar corredera metálica derecha (VB), corredera metálica izquierda (VA) y pin (E) a divisoria (11). Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 10
5. Fix simple minifix screw (J) to front left drawer (5) and front right drawer (9). Fijar tornillo minifix simple (J) a frente de cajón izquierdo (5) y frente de cajón derecho (9). Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 11
Fijar pin (E) con pegamento (A1) a lateral izquierdo de cajón (6) x2 y lateral derecho de cajón (7) Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 12
Fijar tornillo minifix simple (J) a tapa (1). 8. Fix wooden dowel (E) to panel (2). Fijar pin (E) a panel (2). Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 13
10. Fix trapeze (A3) and wooden dowel (E) to crossbeam (13). Fijar trapecio (A3) y pin (E) a travesaño (13). Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 14
Note: the Allen key (K1) will be used to adjust the structural screw (G). Nota: la llave Allen (K1) se utilizará para ajustar el tornillo estructural (G). Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 15
MODEL 1603 www.boahaus.com 13. Join the two previous assemblies Unir los dos ensambles previos. Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 16
MODEL 1603 www.boahaus.com 14. Fix partition (11) to previous assembly. Fijar divisoria (11) al ensamble previo. Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 17
Note: the missing holes must be made with the screwdriver and the corresponding screw. Nota: los agujeros faltantes deben hacerse con el destornillador y el tornillo correspondiente. Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 18
Fijar frontal gaveta izquierda (5) y frontal gaveta derecha (9) al ensamble previo y luego fije el tapón adhesivo (M). Note: glue to the indicated holes. Nota: agregue pegamento a los agujeros indicados. Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 19
Note: the missing holes must be made with the screwdriver and the corresponding screw. Nota: los agujeros faltantes deben hacerse con el destornillador y el tornillo correspondiente. Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
Page 20

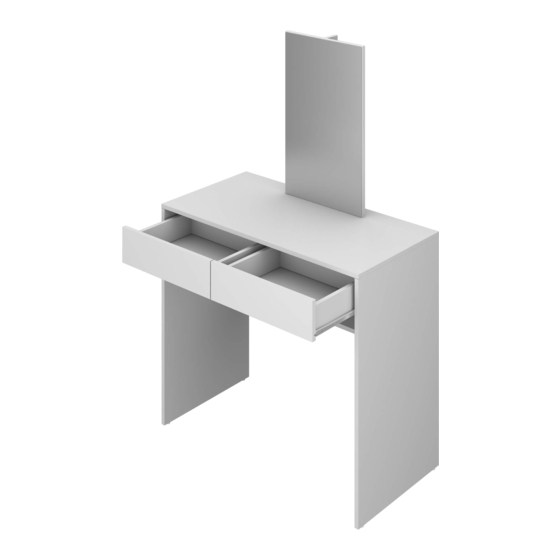

Colocar las gavetas en el mueble. Congratulations, you have assembled your Dressing Table with Mirror!!! ¡¡¡Felicitaciones, has armado tu Tocador con Espejo!!! Need some Help? Call +1 (844) 426-2435 or email contact@boahaus.com ¿Necesitas ayuda? Llama +1 (844) 426-2435 o envía un email contact@boahaus.com...
