- Page 1 Finch Serial Converting serial protocol (JetiEX, Core P2Bus) to Albatross protocol Manual version: 1.1 RC Electronics support@rc-electronics. eu www.rc-electronics. eu...
- Page 2 Contents Introduction..............................3 Key features.............................3 Specifications............................3 Using the Finch Serial module......................5 Powering the module..........................5 Update via SD card...........................5 Revision history............................6 Finch Serial - Converting different serial protocols to Albatross protocol Page 2...
- Page 3 Introduction The Finch Serial unit is designed as bridge to convert different serial protocols (Jeti EX, Core P2Bus) to Albatross App protocol. It is converting data from Sparrow / Raven onboard units. Key features External SD for updates ...

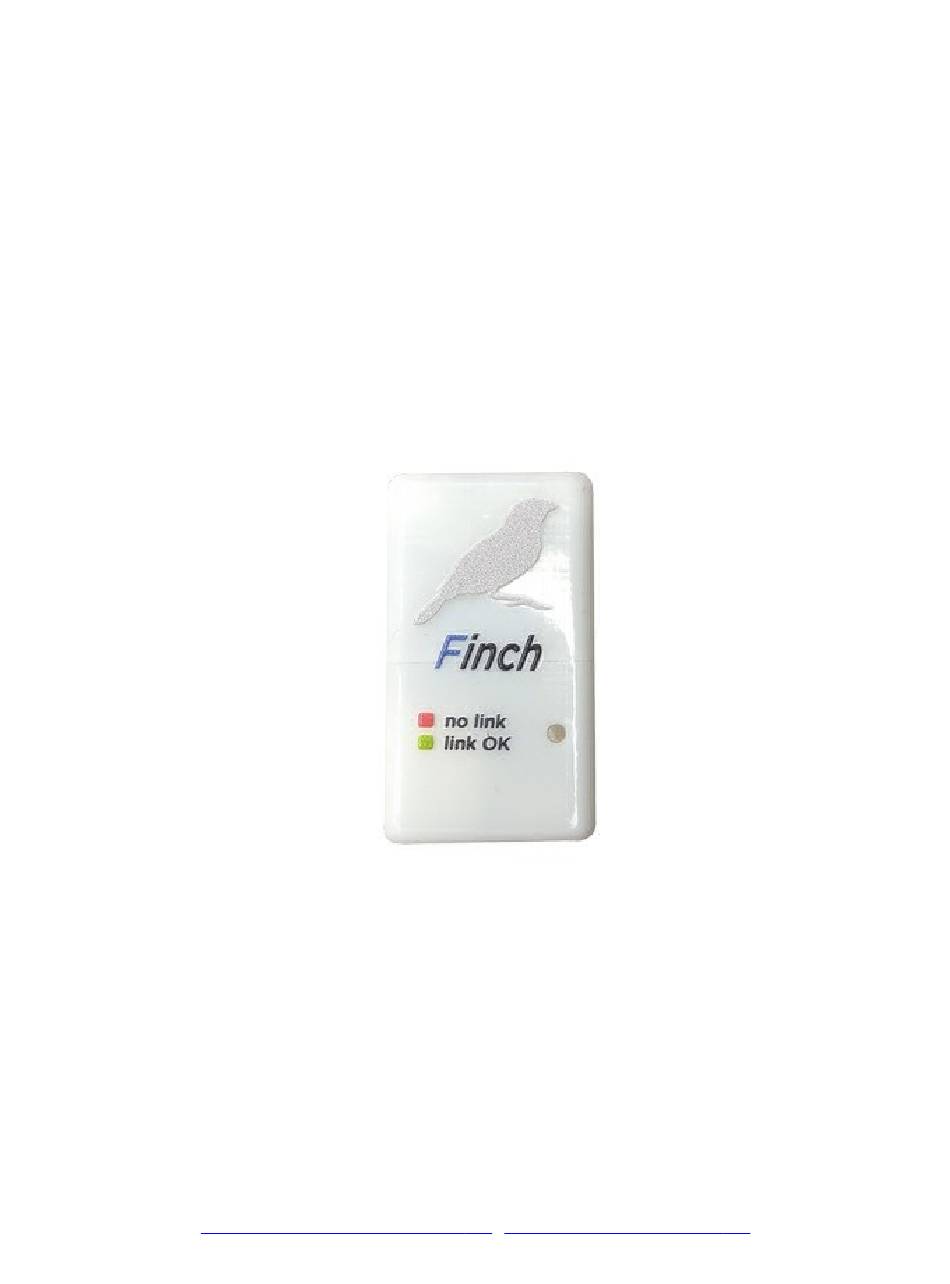

- Page 4 Albatross app. Finch will get power from Android device via USB connection so Android device must support OTG mode to supply power to the unit. 3-pin JR connector Micro USB SD Card conenctor Figure 1: The Finch Serial module. Finch Serial - Converting different serial protocols to Albatross protocol Page 4...
- Page 5 - device name Serial No: 190001 - device serial no. HW: 1.1 - HW version of device Produced: 20.12.2019 - date of production FW v: r.0.9.B110 - FW version installed Finch Serial - Converting different serial protocols to Albatross protocol Page 5...
- Page 6 Revision history 24.12.2020 V1.1 - Rename to Finch Serial, added Core P2Bus support 20.12.2019 v1.0 - initial release Finch Serial - Converting different serial protocols to Albatross protocol Page 6...
